Model G 4000

Get Quote

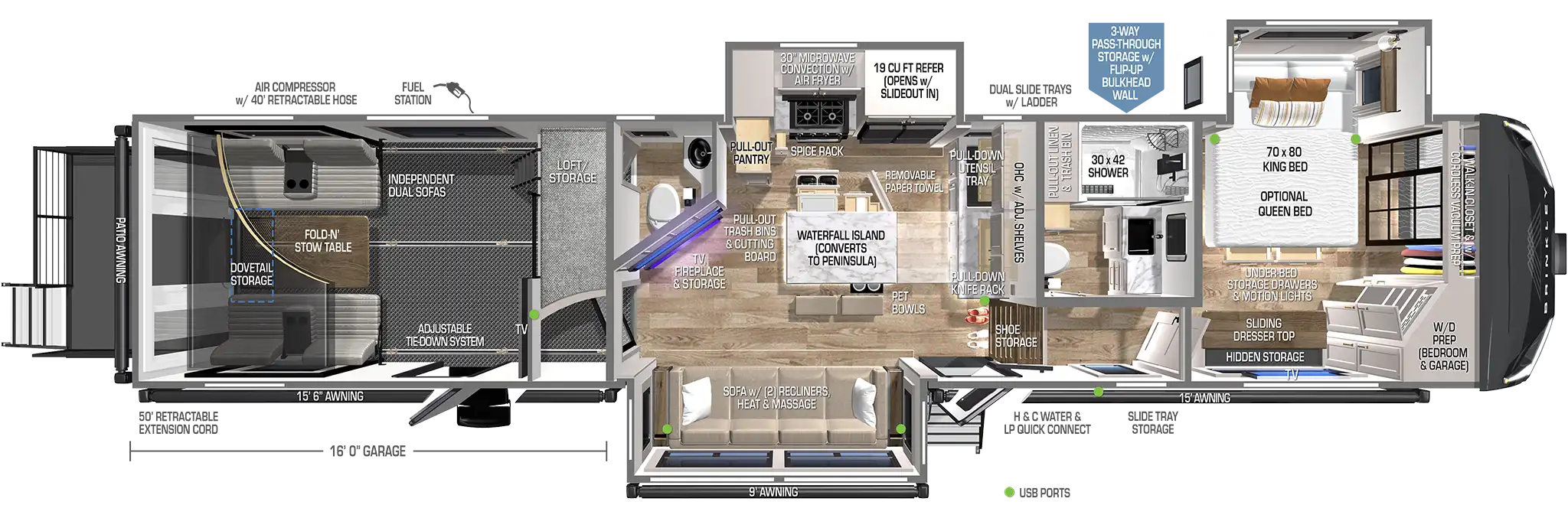

Model G 4000 Toy Haulers Floorplan

<< Previous

Next >>

MODEL G 4000

DEALER STOCK ONLY

Premium residential kitchen, 16′ Garage/Flex Space

Standard Run MSRP $208,077 with $3,765 Premium Build Package

length icon

Length
45′ 2″

height icon

Height
13′ 4″

weight icon

UVW
17,674 lbs.

weight icon

Hitch Weight
3,530 lbs

weight icon

GVWR
23,000 lbs.

VIRTUAL TOUR

GALLERY

G 4000 GARAGE

Brinkley RV Model G 3500 Fifth Wheels Garage Office 9121
More than a Garage!
Happijac Deluxe Motorized Life System
Happijac Deluxe Motorized System
RV garage interior showing Happijac overhead bunk lowered and lower sofas converted into a bed.
👉 Room for Guests
Happijac Sofa Fold Down
Unmatched Flexibility & Useability
RV Garage L-Tracks Tie-Down System
Adjustable Tie-Down System w/ 3x Recessed L-Tracks
Lockable Dovetail Storage Box
Lockable Dovetail Storage Box
Ultimate Outdoor RV Patio
Ultimate Outdoor Retreat
2024 Brinkley RV Model G 3500 Garage Patio Speakers 01713 Web
Premium Outdoor Patio Speakers

G 4000 Exterior

2024 Brinkley Model G 3500 Luxury Fifth Wheel Toy Hauler
Automotive Exterior
Best Fifth Wheel Toy Haulers
Painted Front Cap & LED Accent Lights With Lenses
Model G Fifth Wheel Toy Haulers by Brinkley
Automotive-Grade Exterior Seals
Brinkley RV Model G 3500 Toy Haulers Exterior Front Cargo 8000M
Best-in-Class Massive Basement Storage Compartment
Smart Victron Fifth Wheel Energy System & Power Package
Smart Energy System & Power Package
FlexPower® 5500 w/ EFI Dual Fuel (Gas or LP) Inverter Generator w/ On-Demand Power
Efficient Dual Fuel Inverter Generator
Brinkley RV Model G 3500 Fifth Wheels Exterior Gen Y Pin Box 01361
Gen-Y Executive Torsion Flex Hitch
GEN-Y Gooseneck Optional
GEN-Y Gooseneck Optional
Campside Slide-Tray Storage Drawer
Campside Slide-Tray Storage Drawer
Slide-Tray Storage Drawer Logo
Laser-Cut Accents
Brinkley RV Model G 3500 Fifth Wheels Exterior Drawer Fridge 8012
Exterior 12-Volt Drawer Fridge & Freezer with 24 Can Capacity
Rockford Fosgate Luxury Fifth Wheel Audio System
Model G Exclusive Audio Package
Brinkley RV Model G 3500 Fifth Wheels Exterior Air Compressor Fuel Station 094758
135 PSI Air & 60 Gallon Fuel Station
2024 Model G 3500 Exterior Extension Cord 01348 Web
50’ Retractable Extension Cord
Fifth Wheel Toy Hauler Cargo Storage Drawers
Slide-Tray Storage Drawers
Sliding RV Cargo Drawer
1 of 3 – 48” Deep Storage Drawers
50 Amp Power Cord Reel
50 Amp Power Cord Reel
Brinkley RV Model G 3500 Fifth Wheels Exterior Telescoping Ladder 8025
Portable 14.5’ Telescoping Ladder
MAX-Vision™ Reverse Lighting System
MAX-Vision™ Reverse Lighting System

G 4000 Interior

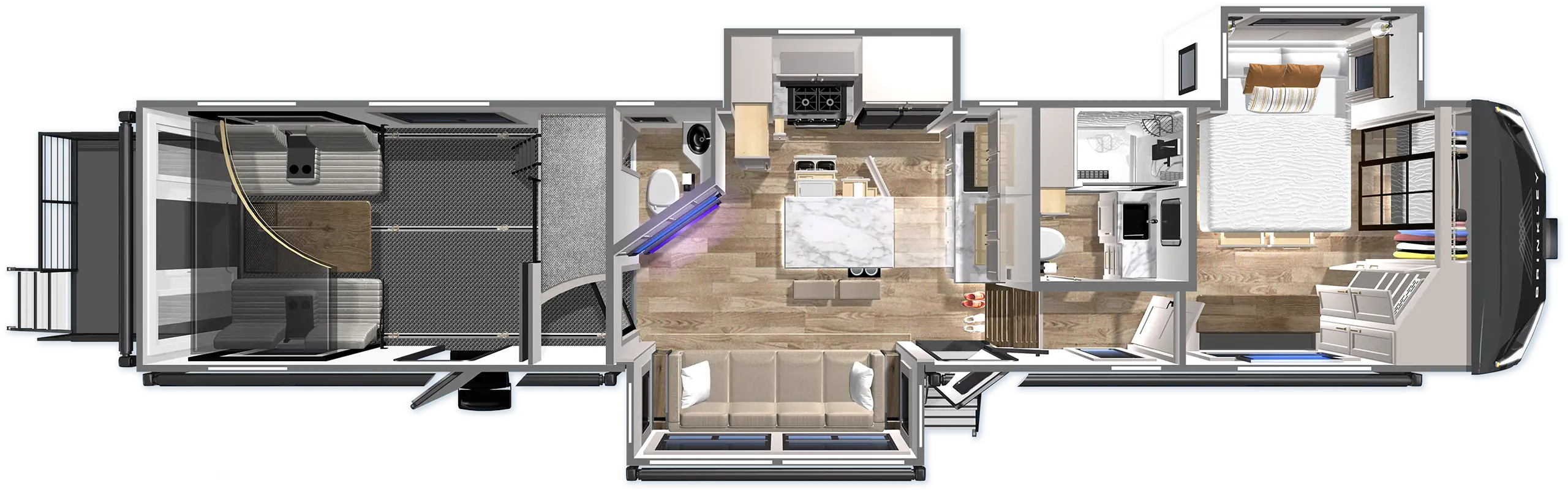

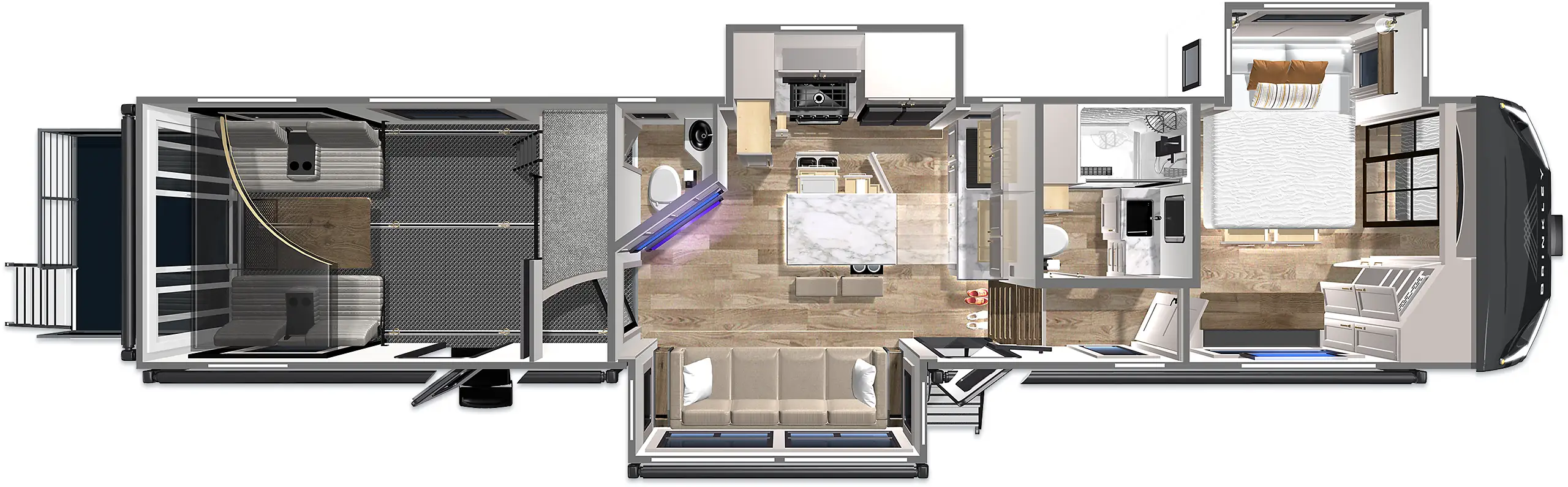

G4000 Toy Hauler Floorplan 2024
Model G 4000 Floorplan
Large Functional Residential Kitchen
Large Functional Residential Kitchen
Brinkley RV Model G 3500 Fifth Wheels Int Kitchen Main Flip Up Peninsula 9051
Residential Hardwood Cabinetry, Hardware, Appliances, & Trim
Brinkley RV Model G 3500 Fifth Wheels Int Kitchen Pantry 9055
Pull-Out Pantry w/ Adjustable Shelves & Drawers
Brinkley RV Model G 3500 Fifth Wheels Int Kitchen Pull Down Utensil Tray 9060
Pull-Down Utensil Tray
Brinkley RV Model G 3500 Fifth Wheels Int Kitchen Pull Down Knife Rack 9061
Pull-Down Magnetic Knife Rack
Brinkley RV Model G 3500 Fifth Wheels Int Kitchen Farmhouse Sink 9065
Farmhouse Sink & Roller Cover
Brinkley RV Model G 3500 Fifth Wheels Int Kitchen Spice Rack 01565
Pull-Out Spice Rack
Waterfall Island Countertop
Waterfall Island Countertop
Island-Peninsula Toy Hauler Kitchen
More Countertop Space!
Best Toy Hauler Floorplan
Entertainment Wall with 2 Hidden Storage Cabinets
Sofa with Recliners
Sofa with 4x Recliners (2x Heat & Massage)
Brinkley RV Model G 3500 Fifth Wheels Int Living End Table 9910
End Tables w/ Storage & Pop-Up Outlets & USB & USB-C Ports
Brinkley RV Model G 3500 Fifth Wheels Interior Pull Out Pet Bowls 085853
Pull-Out Removable Pet Bowls

G 4000 Bedroom

Brinkley RV Model G 3500 Fifth Wheels Int Bedroom Main 9600
King Bed (70″x80″) with 9″ Residential Memory Foam Mattress
Brinkley RV Model G 3500 Fifth Wheels Int Bedroom Dimmable Lights 9601
Dimmable Bedroom Lights
Model Z 3100 Fifth Wheels Bed Lights
Dual Motion Sensor Bed Lights
Brinkley RV Model G 3500 Fifth Wheels Int Bedroom Bed Drawers 9608
4x Under-Bed Storage Drawers
Brinkley RV Model G 3500 Fifth Wheels Int Bedroom Shelves 01428
3″ Deep Bedside Shelf
Brinkley RV Model G 3500 Fifth Wheels Int Bedroom Closet 9610
Walk-In Closet with Residential Mirrored Sliding Doors
Brinkley RV Model G 3500 Fifth Wheels Int Bedroom Closet 01416
Even More Organized Storage
Luxury Fifth Wheels Int Bedroom Closet Rod LEDs 00706
Bright LED Closet Lighting
Brinkley RV Model G 3500 Fifth Wheels Int Bedroom Closet 094808
Cordless Vacuum Prep with Outlet
Brinkley RV Model G 3500 Fifth Wheels Int Bedroom Cabinet 01438
Floor-to-Ceiling Storage Cabinet
2x Washer & Dryer Prep
2x Washer Dryer Prep

G 4000 BATHROOMS

Brinkley RV Model G 3500 Fifth Wheels Int Bathroom Main 9400
Main Bath
Brinkley RV Model G 3500 Fifth Wheels Int Bathroom Medicine Cabinet 092156
Backlit Recessed Medicine Cabinet
Brinkley RV Model G 3500 Fifth Wheels Int Bathroom Shower 9405
Main Bath
Brinkley RV Model G 3500 Fifth Wheels Int Bathroom Trash Bin 9415
Main Bath Pull-Out Trash Bin
Brinkley RV Model G 3500 Fifth Wheels Int Bathroom Linen 9410
Pull-Out Linen Closet w/ Adjustable Shelves
Brinkley RV Model G 3500 Fifth Wheels Int Bathroom Magnetic TP Holder 01446
Toilet Paper Holder w/ Magnetic Travel Keeper
Brinkley RV Model G 3500 Fifth Wheels Int Bathroom Rear Bathroom 9450
Rear Bathroom

Click to expand.

FEATURES

G 4000 STANDARDS & OPTIONS

Click on a category to expand.

  • Standard
  • Option
  • Premium Build Option
  • More Info
  • Hot Feature

SPECIFICATIONS

G 4000 Weights, Dimensions, & Capacities

Model G (FW)4000

WEIGHTS

4000Title1
UVW (lbs.)17,6741
GVWR - Standard 7k Axles (lbs.)23,0001
GVWR - Optional Independent Suspension23,5001
Hitch (lbs.)3,5301

Empty1

AXLES & TIRES

4000Title1
AxlesTriple Axle1
Tire & Wheel Size215/75 R17.51
Tire Load RangeH1
Tire Ply161

Empty1

TANK CAPACITY

4000Title1
Fresh Water (gal.)1501
Gray Water (True gal.)  SO Info Icon104 True1
Black Water (gal.)1041
Fuel Station/Generator (gal.)60 (30+30)1
LP (lbs.)60 (30+30) Up to 801

Empty1

GARAGE & PATIO

4000Title2
Garage Length16' 0"2
Garage Door Ramp Length100" (Low-Pitch)2
Garage Door Ramp Rating (lbs.)3,0002
Garage Door Patio Rating (lbs.)1,5002

Empty2

EXTERIOR

4000Title2
Length45′ 2″2
Height13′ 4″2
Width101″2

Empty2

INTERIOR

4000Title2
Bath Ceiling79 1/2″2
Bedroom Ceiling79 1/2″2
Bedroom Slide76″2

Empty2

INSULATION

4000Title2
Floor R-ValueR402
Ceiling R-ValueR402
Walls R-ValueR112

Empty2
Model G (FW)4000

WEIGHTS

4000Title1
UVW (lbs.)17,6741
GVWR - Standard 7k Axles (lbs.)23,0001
GVWR - Optional Independent Suspension23,5001
Hitch (lbs.)3,5301

Empty1

AXLES & TIRES

4000Title1
AxlesTriple Axle1
Tire & Wheel Size215/75 R17.51
Tire Load RangeH1
Tire Ply161

Empty1

TANK CAPACITY

4000Title1
Fresh Water (gal.)1501
Gray Water (True gal.)  SO Info Icon104 True1
Black Water (gal.)1041
Fuel Station/Generator (gal.)60 (30+30)1
LP (lbs.)60 (30+30) Up to 801

Empty1

GARAGE & PATIO

4000Title2
Garage Length16' 0"2
Garage Door Ramp Length100" (Low-Pitch)2
Garage Door Ramp Rating (lbs.)3,0002
Garage Door Patio Rating (lbs.)1,5002

Empty2

EXTERIOR

4000Title2
Length45′ 2″2
Height13′ 4″2
Width101″2

Empty2

INTERIOR

4000Title2
Bath Ceiling79 1/2″2
Bedroom Ceiling79 1/2″2
Bedroom Slide76″2

Empty2

INSULATION

4000Title2
Floor R-ValueR402
Ceiling R-ValueR402
Walls R-ValueR112

Empty2
UVW17,674 lbs.
GVWR (Standard 7K Axles)22,500 lbs.
GVWR (Optional 8K Axles)23,000 lbs.
Hitch Weight3,530 lbs.
Tire & Wheel Size215/75 R17.5
Tire RatingH-Rated (16-ply)
Exterior Length45′ 2″
Overall Height13′ 5″
Exterior Width101″
Fresh Water Capacity150 gal.
Gray Water Capacity SO Info Icon104 gal.
Black Water Capacity104 gal.
Interior Bath & Bedroom Height79 1/2″
Interior Slide Height76″
Garage Length16′ 0″
Garage Door Ramp Length100″ (Low-Pitch)
Garage Door Ramp Rating3,000 lbs.
Garage Door Patio Rating1,500 lbs.
Fuel Station60 gal. (30+30)
Floor Insulation R-ValueR40
Walls Insulation R-ValueR11
Ceiling Insulation R-ValueR40
FIND INVENTORY
GET QUOTE
DOWNLOAD 4000 FLYER
Model G 4000 Toy Haulers by Brinkley RV

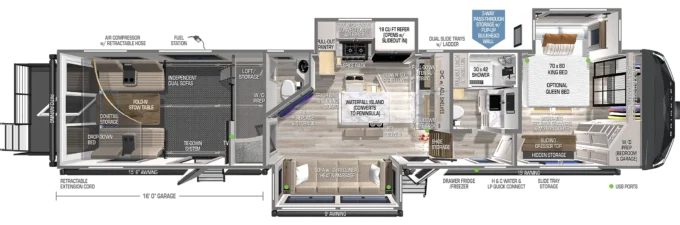

Brinkley Model G 4000 Toy Hauler Floorplan 16 foot Garage 700x

Brinkley RV's Model G 4000 Luxury Fifth Wheel Toy Haulers have an automotive exterior & residential interior, with massive cargo storage yielding NO COMPROMISE.

Product SKU: BRINKLEY-MODEL-G-4000

Product Brand: Brinkley RV

Product Currency: USD

Product Price: 190678.00

Price Valid Until: 2026-12-31

Product In-Stock: InStock

Editor's Rating:
5
FINALLY!! The RV I’ve been waiting to see built! 2026 Brinkley Model G 3520 fifth wheel toy hauler

Thank you RV Mattress by Brooklyn Bedding for sponsoring! Visit http://rvmattress.com/myles to get 30% off your RV mattress order with code MYLES 40ft, 17,49...

Brinkley RV Integrated 65' Hose & Reel Standard (Quick, Clean, & Easy To Store)

Never has setting up camp been so quick & easy... Our integrated 65' retractable hose & reel is standard on all Brinkley fifth wheels, including Model Z & Mo...

Brinkley Luxury Fifth Wheel's No More Valance Residential Square Frameless Euro-Windows #RV #RVing

☀️ Panoramic views courtesy of Brinkley's industry-exclusive square frameless euro-styled windows! We've eliminated valances forever, integrated the screens...

Brinkley RV Model Z and G Standard Entry Door Upgrades #MadeByRVers

Opening the door to endless adventures starts with your Brinkley! 🌎 Coming standard on both the Model Z Mid-Sized Luxury Fifth Wheels and the Model G Luxury...

Built to a Higher Standard: Brinkley RV's Off-Road Simulation Testing

Want to know a secret about how Brinkley RV is built to a higher standard? We are about to reveal one of the ways Brinkley is recreating the entire RV experi...

Brinkley RV Model 3100 Review Video

WHAT ARE OUR CUSTOMERS SAYING?

– I don’t know other executives at companies that RV… It shows in the (Brinkley) quality and all the little things that we see, including the fit and finish on everything…

– Don Maycock

WATCH THE VIDEO
2023 RV Shows

RV SHOWS & EVENTS

It’s show season, and we are excited to meet you and show off our new Model Z mid-sized luxury fifth wheels. Here are the shows, open houses, and events the Brinkley team we’ll be attending over the next few months.

RV SHOWS
New Fifth Wheels Video

R&D HITS THE ROAD

We are living the RV lifestyle right alongside you by hitting the road with Brinkley RV’s own Model Z. These adventures help us learn how we can improve our RVs based on our own camping experiences.

LEARN MORE

IN THEIR WORDS

WHAT OUR CUSTOMERS ARE SAYING

I don’t know other executives at companies that RV… It shows in the quality and all the little things that we see, including the fit and finish on everything…

Watch our Video

Don & Shirley Maycock

I recently stopped by their facility. And I saw their new unit. It looks great, they’re hitting the details people are looking for.

★★★★★

Google Review

Ryan Sailor

Every single experience with Brinkley has been phenomenal. The Z3100 is built with quality and durability from the floors to the cabinets and all the way to the roof. No small detail has been left out, and we love that the owners listen to the customer’s ideas.
But – the best part is the people who are Brinkley.

Read The Complete Testimonial (Facebook)

Tim & Tory Lorimer

Just ordered the Brinkley 3100 Model Z. Couldn’t be more pleased with the coach design, finishes, and craftsmanship. The company is proud of the product and stands behind it should there be any concerns.

Facebook Review

Becky Taylor

We discovered the Brinkley Z3100 at the Montreal RV show. It was an instant crush due to the quantity of materials used and the incomparable finish of the Brinkley. This is by far the best value for money in the industry. We are delighted with our acquisition.

★★★★★

Google Review

Luc Girard

I have worked on many RV’s and none have been as well built and well organized as the Brinkley Model Z. The electrical system is set up to be easy to customize for the individual owner’s needs. Access to wiring and wire routing is straightforward and neat. Well Done, Brinkley.

Read The Complete Testimonial (Facebook)

Adventure Van Systems

Spectacular unit/manufacturer, really raising the bar for others in the industry. Super excited to see what this brand does!

★★★★★

Google Review

Josiah Stuck

We don’t want to feel like we’re in a camper, and this (Model Z 3100) feels very residential, and that’s why I’m loving the Brinkley.

Watch our Video

Don & Shirley Maycock

We’ve toured hundreds of RVs through the years, and this was the first that literally took our breath away. We can’t wait to take delivery and then get it out on the road!

★★★★★

Google Review

Knox Howard

This new company and rig (Z3100) exceeded our expectations and then some… so we decided to buy it from Walnut Ridge in Indiana. The videos (Josh and others) were great, but experiencing it in person was simply amazing.

★★★★★

Google Review

Knox Howard

The enthusiasm and excitement they all share in the Brinkley company itself validated that we made the right choice. We feel certain that the people representing Brinkley are a reflection of the owners which represents a quality company!

Read The Complete Testimonial (Facebook)

Tim & Tory Lorimer

If you haven’t heard of a Brinkley – I am certain you will very soon because they are getting ready to knock the socks off of every other RV company there is.

Read The Complete Testimonial (Facebook)

Tim & Tory Lorimer

Excellent design, build and customer commitment. Everything a luxury mid-profile coach should be. Many upgrades and special touches to make any trip more comfortable and relaxing.

★★★★★

Google Review

Becky Taylor

This rig (Model Z 3100) is sleek and sophisticated looking with exceptional craftsmanship, and it was a happy surprise that it was even better in person. I can’t say enough about the people at Brinkley, they’re fantastic on every level. It’s incredible to have the opportunity to meet the owners of a fantastic new company and all the people making it happen.

Watch our Video

Don & Shirley Maycock
brinkley icon
