Model I Lightweight, under 30 feet, fifth wheels with the same quality and Brinkley RV fit and finish.

MODEL I

The Brinkley you’ve been waiting for.

Lighter to tow and easier to bring home, the Model I is the most attainable Brinkley fifth wheel we’ve built. It keeps the fit, finish and owner support that made you want a Brinkley in the first place.

Maybe you’ve walked through a Brinkley at an RV show and thought, someday. For a lot of RVers, the weight or the numbers kept it just out of reach. The Model I fifth wheel was built to change that. We went through it piece by piece, taking weight out where you won’t notice and keeping what you will: solid surface countertops, flush floor slide-outs, a heated and enclosed underbelly and the Brinkley On-Command™ docking center.

Sized for More Trucks

With an unloaded vehicle weight (UVW) of 8,497 pounds and a 1,450-pound hitch weight, the Model I is a fifth wheel many ¾-ton trucks can tow. For a lot of buyers, that means skipping the truck upgrade and putting that money toward the trip instead. Always match your truck’s ratings to the trailer before you buy.

Tandem 6K Axles

Taking out weight didn’t mean going light on the running gear. The Model I rides on tandem 6,000-pound axles with 16″ Load Range E (10-Ply) tires on custom wheels, so it handles the highway the way a Brinkley should.

3,498 lbs. Cargo Carrying Capacity

Bring the camp chairs, the outdoor gear and the extra week of groceries. With 3,498 pounds of cargo carrying capacity (CCC), you can load up for how you actually camp instead of leaving things home to stay under your limits.

Under 13′ Tall

A lower roofline gives you a bit more room under fuel station canopies and storage doors, and puts less of the coach up in the wind on long travel days.

Clean, Modern Exterior

A fiberglass front cap, square Euro frameless windows, automotive exterior seals and automotive-grade graphics give the Model I the clean, finished look Brinkley is known for.

Standard, Not Optional

The Model I isn’t a stripped-down Brinkley. Brass plumbing fittings, a low-maintenance roof, one-touch automatic leveling, a tankless water heater and a 200W solar panel with a 30-Amp Victron MPPT charge controller all come standard on the 2550.

Less Weight. No Shortcuts.

We took weight out of the Model I without cutting the details Brinkley owners care about. Take a closer look.

Is The Brinkley Model I The New King of Lightweight Fifth Wheels?

MODEL I FLOORPLANS

2550

2027 Model I 2550 Fifth Wheel Floorplan Layout

28′ 11″ Rear Kitchen, Cross-Conversational Seating, Hutch Dinesk™ & Spacious Bath

MODEL I 2550 Virtual Tour

MODEL I GALLERY

I 2550 Exterior

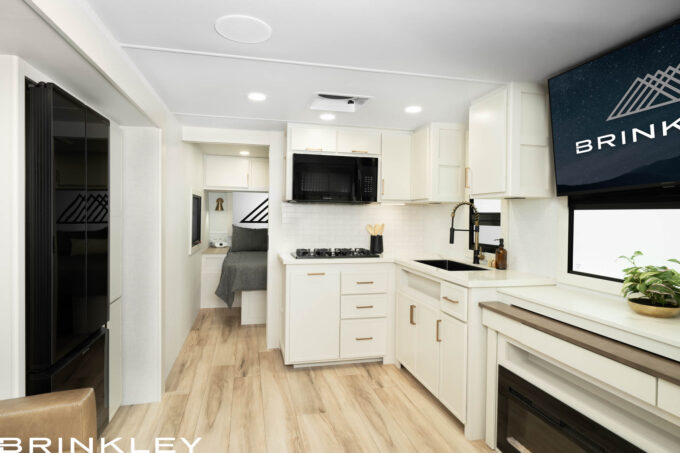

I 2550 INTERIOR

I 2550 BEDROOM & BATHROOM

MODEL I VIDEOS

Who is Brinkley RV?
Built to a Higher Standard: Brinkley RV's Off-Road Simulation Testing

MODEL I Features

MODEL I Compare Floorplans

STANDARDS & OPTIONS

  • Standard
  • Option
  • More Info
  • Hot Feature
Model I Fifth Wheel Features2550

Chassis & Suspension

1TitleChassis & SuspensionYT25502850Same11/20 1:39 PMMonotube Chassis (Brinkley Spec & Certified) Road Defense Triple Powder Coated Chassis Premium 225/75 Load Range E 10-Ply Tires 16" Custom Aluminum Luxury Wheels Galvanized Wheel Well Shields for Road Debris Anti-Lock Braking System (ABS) w/ Anti-Sway & Dynamic Brake Boost Banded Tire Pressure Monitoring System (TPMS) Prep One-Touch Automatic Leveling System High-Performance Road Armor™ Suspension Equalizer System, Heavy Duty 6,000 lbs. Axles, Reinforced Axle Hangers, Upgraded 6' Coiled Breakaway Safety Cable 2" Rear Cargo Receiver Hitch (300 lbs. Capacity)
Monotube Chassis (Brinkley Spec & Certified)2FeatureChassis & SuspensionYSSSame11/20 1:39 PMMonotube Chassis (Brinkley Spec & Certified)
Road Defense Triple Powder Coated Chassis3FeatureChassis & SuspensionYSSSame11/20 1:39 PMRoad Defense Triple Powder Coated Chassis
Premium 225/75 Load Range E 10-Ply Tires4FeatureChassis & SuspensionYSSSame11/20 1:39 PMPremium 225/75 Load Range E 10-Ply Tires
16" Custom Aluminum Luxury Wheels5FeatureChassis & SuspensionYSSSame11/20 1:39 PM16" Custom Aluminum Luxury Wheels
Galvanized Wheel Well Shields for Road Debris6FeatureChassis & SuspensionYSSSame11/20 1:39 PMGalvanized Wheel Well Shields for Road Debris
Anti-Lock Braking System (ABS) w/ Anti-Sway & Dynamic Brake Boost7FeatureChassis & SuspensionYSSSame11/20 1:39 PMAnti-Lock Braking System (ABS) w/ Anti-Sway & Dynamic Brake Boost
Banded Tire Pressure Monitoring System (TPMS) Prep8FeatureChassis & SuspensionYSSSame11/20 1:39 PMBanded Tire Pressure Monitoring System (TPMS) Prep
One-Touch Automatic Leveling System9FeatureChassis & SuspensionYSSSame11/20 1:39 PMOne-Touch Automatic Leveling System
High-Performance Road Armor™ Suspension Equalizer System10FeatureChassis & SuspensionSSSame11/20 1:39 PMHigh-Performance Road Armor™ Suspension Equalizer System
Heavy Duty 6,000 lbs. Axles11FeatureChassis & SuspensionSSSame11/20 1:39 PMHeavy Duty 6,000 lbs. Axles
Reinforced Axle Hangers12FeatureChassis & SuspensionSSSame11/20 1:39 PMReinforced Axle Hangers
Upgraded 6' Coiled Breakaway Safety Cable13FeatureChassis & SuspensionYSSSame11/20 1:39 PMUpgraded 6' Coiled Breakaway Safety Cable
2" Rear Cargo Receiver Hitch (300 lbs. Capacity)14FeatureChassis & SuspensionSSSame11/20 1:39 PM2" Rear Cargo Receiver Hitch (300 lbs. Capacity)

Exterior & Storage

15TitleExterior & StorageYT25502850DifferentO11/20 1:39 PMSquare Euro Frameless Windows w/ Up To 6" Openings (Industry 1st) Dual Pane Square Euro Frameless Windows w/ Up To 6" Openings ($1,731) Sleek & Clean Styling w/ Automotive-Grade Exterior Graphics Automotive Painted Fiberglass Front Cap Front Dotless COB Neon LED Docking Lights, Electric Awning w/ LED Lighting, Slide-Out Topper Ready, Backup/Security Furrion Camera Prep Winegard Air 360 HDTV/UHF/VHF/AM/FM Antenna, Front Pass-Through Storage Compartment: Full-Width LED Strip Lighting, 2x 110V Power Outlets Forced-Air Heated & Insulated Tough-Ply Floor (Gray) Thick Bulkhead Walls (Designed For Mounting & Securing Items) Rear Storage Compartment w/ Motion Lighting & 110V Power Outlets (Heated & Insulated) Pet & Property Security Campside Tie-Down 🐕 🚲 Slam Latch Baggage Doors, Exterior Ladder w/ Secure Transition, Exterior Campside 110V Power Outlets, Deluxe Entrance Package: 30"x72" Entry Door, Extended Entry Latch, Window w/ Integrated Blackout Window Shade, Screen Shot Automatic Screen Door Closer, Lightweight Solid Entry Steps, 44" Telescoping Entry Handrail (Extends to Bottom Step)
Square Euro Frameless Windows w/ Up To 6" Openings (Industry 1st)16FeatureExterior & StorageYSSSame11/20 1:39 PMSquare Euro Frameless Windows w/ Up To 6" Openings (Industry 1st)
Dual Pane Square Euro Frameless Windows w/ Up To 6" Openings($1,731)17FeatureExterior & StorageYOOSameO11/20 1:39 PMDual Pane Square Euro Frameless Windows w/ Up To 6" Openings ($1,731)
Sleek & Clean Styling w/ Automotive-Grade Exterior Graphics18FeatureExterior & StorageYSSSame11/20 1:39 PMSleek & Clean Styling w/ Automotive-Grade Exterior Graphics
Automotive Painted Fiberglass Front Cap19FeatureExterior & StorageYSSSame11/20 1:39 PMAutomotive Painted Fiberglass Front Cap
Front Dotless COB Neon LED Docking Lights20FeatureExterior & StorageSSSame11/20 1:39 PMFront Dotless COB Neon LED Docking Lights
Electric Awning w/ LED Lighting21FeatureExterior & StorageSSSame11/20 1:39 PMElectric Awning w/ LED Lighting
Slide-Out Topper Ready22FeatureExterior & StorageSSSame11/20 1:39 PMSlide-Out Topper Ready
Backup/Security Furrion Camera Prep23FeatureExterior & StorageYSSSame11/20 1:39 PMBackup/Security Furrion Camera Prep
Winegard Air 360 HDTV/UHF/VHF/AM/FM Antenna24FeatureExterior & StorageSSSame11/20 1:39 PMWinegard Air 360 HDTV/UHF/VHF/AM/FM Antenna
Front Pass-Through Storage Compartment:25FeatureExterior & StorageYSSSame11/20 1:39 PMFront Pass-Through Storage Compartment:
Full-Width LED Strip Lighting26FeatureExterior & StorageSSSame11/20 1:39 PMFull-Width LED Strip Lighting
2x 110V Power Outlets27FeatureExterior & StorageYSSSame11/20 1:39 PM2x 110V Power Outlets
Forced-Air Heated & Insulated28FeatureExterior & StorageYSSSame11/20 1:39 PMForced-Air Heated & Insulated
Tough-Ply Floor (Gray)29FeatureExterior & StorageYSSSame11/20 1:39 PMTough-Ply Floor (Gray)
Thick Bulkhead Walls (Designed For Mounting & Securing Items)30FeatureExterior & StorageYSSSame11/20 1:39 PMThick Bulkhead Walls (Designed For Mounting & Securing Items)
Pet & Property Security Campside Tie-Down 🐕 🚲32FeatureExterior & StorageYSSSame11/20 1:39 PMPet & Property Security Campside Tie-Down 🐕 🚲
Slam Latch Baggage Doors33FeatureExterior & StorageSSSame11/20 1:39 PMSlam Latch Baggage Doors
Exterior Ladder w/ Secure Transition34FeatureExterior & StorageSSSame11/20 1:39 PMExterior Ladder w/ Secure Transition
Exterior Campside 110V Power Outlets35FeatureExterior & StorageSSSame11/20 1:39 PMExterior Campside 110V Power Outlets
Deluxe Entrance Package:36FeatureExterior & StorageYSSSame11/20 1:39 PMDeluxe Entrance Package:
30"x72" Entry Door37FeatureExterior & StorageSSSame11/20 1:39 PM30"x72" Entry Door
Extended Entry Latch38FeatureExterior & StorageSSSame11/20 1:39 PMExtended Entry Latch
Window w/ Integrated Blackout Window Shade39FeatureExterior & StorageSSSame11/20 1:39 PMWindow w/ Integrated Blackout Window Shade
Screen Shot Automatic Screen Door Closer40FeatureExterior & StorageSSSame11/20 1:39 PMScreen Shot Automatic Screen Door Closer
Lightweight Solid Entry Steps41FeatureExterior & StorageSSSame11/20 1:39 PMLightweight Solid Entry Steps
44" Telescoping Entry Handrail (Extends to Bottom Step)42FeatureExterior & StorageSSSame11/20 1:39 PM44" Telescoping Entry Handrail (Extends to Bottom Step)

Solar, Electrical & HVAC

43TitleSolar, Electrical & HVACYT25502850Same11/20 1:39 PM200 Watt Solar Panel (440 Watt Ready) 30 Amp Victron MPPT Solar Controller (440 Watt Solar & Lithium Ready) Inverter Prep (Up to 3000W), 18k BTU Furrion Chill Cube Variable Speed Air Conditioner w/ Heat Pump (Main) 10k BTU Furrion Air Conditioner (Bedroom), Brinkley Smart-Command™ Center w/ App Control, Thermaflex® No Kink No Tear Heat Ducts Travel, Storage, & Solar Mode Battery Disconnects, Pre-Engineered & Assembled Wiring Harnesses, Loomed, Labeled, & Color Coded for Easy Serviceability (Segment-First) 35k BTU High-Capacity Furnace, 50-Amp Electric Service, Detachable 50-Amp Power Cord w/ Angled Connector
200 Watt Solar Panel (440 Watt Ready)44FeatureSolar, Electrical & HVACYSSSame11/20 1:39 PM200 Watt Solar Panel (440 Watt Ready)
30 Amp Victron MPPT Solar Controller (440 Watt Solar & Lithium Ready)45FeatureSolar, Electrical & HVACYSSSame11/20 1:39 PM30 Amp Victron MPPT Solar Controller (440 Watt Solar & Lithium Ready)
Inverter Prep (Up to 3000W)46FeatureSolar, Electrical & HVACSSSame11/20 1:39 PMInverter Prep (Up to 3000W)
18k BTU Furrion Chill Cube Variable Speed Air Conditioner w/ Heat Pump (Main)47FeatureSolar, Electrical & HVACYSSSame11/20 1:39 PM18k BTU Furrion Chill Cube Variable Speed Air Conditioner w/ Heat Pump (Main)
10k BTU Furrion Air Conditioner (Bedroom)48FeatureSolar, Electrical & HVACSSSame11/20 1:39 PM10k BTU Furrion Air Conditioner (Bedroom)
Brinkley Smart-Command™ Center w/ App Control49FeatureSolar, Electrical & HVACSSSame11/20 1:39 PMBrinkley Smart-Command™ Center w/ App Control
Thermaflex® No Kink No Tear Heat Ducts50FeatureSolar, Electrical & HVACYSSSame11/20 1:39 PMThermaflex® No Kink No Tear Heat Ducts
Travel, Storage, & Solar Mode Battery Disconnects51FeatureSolar, Electrical & HVACSSSame11/20 1:39 PMTravel, Storage, & Solar Mode Battery Disconnects
Pre-Engineered & Assembled Wiring Harnesses, Loomed, Labeled, & Color Coded for Easy Serviceability (Segment-First)52FeatureSolar, Electrical & HVACYSSSame11/20 1:39 PMPre-Engineered & Assembled Wiring Harnesses, Loomed, Labeled, & Color Coded for Easy Serviceability (Segment-First)
35k BTU High-Capacity Furnace53FeatureSolar, Electrical & HVACSSSame11/20 1:39 PM35k BTU High-Capacity Furnace
50-Amp Electric Service54FeatureSolar, Electrical & HVACSSSame11/20 1:39 PM50-Amp Electric Service
Detachable 50-Amp Power Cord w/ Angled Connector55FeatureSolar, Electrical & HVACSSSame11/20 1:39 PMDetachable 50-Amp Power Cord w/ Angled Connector

Plumbing & LP

56TitlePlumbing & LPYT25502850Same11/20 1:39 PMBrass Plumbing Fittings (Industry 1st) PEX Water Lines (Residential-Grade) Water Shutoff Valve on ALL Fixtures, Thermofoil Insulated & Heated Holding Tanks w/ Steel Cross Supports, Extended Waste Hose Carrier Storage Tube, Clear "No Surprises" Sewer Cap w/ Lanyard Brinkley On-Command™ Docking & Utility Center, 2x 90-Degree Brass Elbows for Docking Station Water Hoses, EZ Winterization Valve in Utility Center, 2x Hot/Cold Exterior Spray Ports (Campside & Off-Campside), Tankless On-Demand Water Heater, 2x 30 lbs. LP/Propane Tanks w/ Cover, LP-IQ Propane Gauge, Exterior LP Quick Connect
Brass Plumbing Fittings (Industry 1st)57FeaturePlumbing & LPYSSSame11/20 1:39 PMBrass Plumbing Fittings (Industry 1st)
PEX Water Lines (Residential-Grade)58FeaturePlumbing & LPYSSSame11/20 1:39 PMPEX Water Lines (Residential-Grade)
Water Shutoff Valve on ALL Fixtures59FeaturePlumbing & LPSSSame11/20 1:39 PMWater Shutoff Valve on ALL Fixtures
Thermofoil Insulated & Heated Holding Tanks w/ Steel Cross Supports60FeaturePlumbing & LPSSSame11/20 1:39 PMThermofoil Insulated & Heated Holding Tanks w/ Steel Cross Supports
Extended Waste Hose Carrier Storage Tube61FeaturePlumbing & LPSSSame11/20 1:39 PMExtended Waste Hose Carrier Storage Tube
Clear "No Surprises" Sewer Cap w/ Lanyard62FeaturePlumbing & LPYSSSame11/20 1:39 PMClear "No Surprises" Sewer Cap w/ Lanyard
Brinkley On-Command™ Docking & Utility Center63FeaturePlumbing & LPSSSame11/20 1:39 PMBrinkley On-Command™ Docking & Utility Center
2x 90-Degree Brass Elbows for Docking Station Water Hoses64FeaturePlumbing & LPSSSame11/20 1:39 PM2x 90-Degree Brass Elbows for Docking Station Water Hoses
EZ Winterization Valve in Utility Center65FeaturePlumbing & LPSSSame11/20 1:39 PMEZ Winterization Valve in Utility Center
2x Hot/Cold Exterior Spray Ports (Campside & Off-Campside)66FeaturePlumbing & LPSSSame11/20 1:39 PM2x Hot/Cold Exterior Spray Ports (Campside & Off-Campside)
Tankless On-Demand Water Heater67FeaturePlumbing & LPSSSame11/20 1:39 PMTankless On-Demand Water Heater
2x 30 lbs. LP/Propane Tanks w/ Cover68FeaturePlumbing & LPSSSame11/20 1:39 PM2x 30 lbs. LP/Propane Tanks w/ Cover
LP-IQ Propane Gauge69FeaturePlumbing & LPSSSame11/20 1:39 PMLP-IQ Propane Gauge
Exterior LP Quick Connect70FeaturePlumbing & LPSSSame11/20 1:39 PMExterior LP Quick Connect

Interior & Living Spaces

71TitleInterior & Living SpacesYT25502850Same11/20 1:39 PMBrinkley CraftSense™ Wood Trim Construction Flush Floor Stepless Slide-Out(s) 74" Slide Out Height, Slide-In Access: Refrigerator Bathroom Bedroom Window Integrated Blackout Shades w/ Reflective Insulation + Full Bug Screens Dimmable Living Room Lights 50″ Smart TV w/ Articulating Mount, Soundcore Boom Bluetooth Portable Waterproof Speaker w/ Travel Bracket, 69" Wall Hugger Theater Seating w/ 2 Recliners, 64" EZ-Glide Tri-Fold Sofa w/ Scotchgard Protection (54"x70" Sleeper), Well-Placed 110V Power Outlets w/ USB & USB-C High-Speed Charging Stations, Pet-Friendly Package: No or Limited Floors Ducts, 100% Carpet Free, Child/Pet Defender Screen Protector, Exterior Pet & Property Security Tie-Down 🐕 🚲
Brinkley CraftSense™ Wood Trim Construction72FeatureInterior & Living SpacesYSSSame11/20 1:39 PMBrinkley CraftSense™ Wood Trim Construction
Flush Floor Stepless Slide-Out(s)73FeatureInterior & Living SpacesYSSSame11/20 1:39 PMFlush Floor Stepless Slide-Out(s)
74" Slide Out Height74FeatureInterior & Living SpacesSSSame11/20 1:39 PM74" Slide Out Height
Slide-In Access:75FeatureInterior & Living SpacesYSSSame11/20 1:39 PMSlide-In Access:
Refrigerator76FeatureInterior & Living SpacesYSSSame11/20 1:39 PMRefrigerator
Bathroom77FeatureInterior & Living SpacesYSSSame11/20 1:39 PMBathroom
Bedroom78FeatureInterior & Living SpacesYSSSame11/20 1:39 PMBedroom
Window Integrated Blackout Shades w/ Reflective Insulation + Full Bug Screens79FeatureInterior & Living SpacesYSSSame11/20 1:39 PMWindow Integrated Blackout Shades w/ Reflective Insulation + Full Bug Screens
Dimmable Living Room Lights80FeatureInterior & Living SpacesYSSSame11/20 1:39 PMDimmable Living Room Lights
50″ Smart TV w/ Articulating Mount81FeatureInterior & Living SpacesSSSame11/20 1:39 PM50″ Smart TV w/ Articulating Mount
Soundcore Boom Bluetooth Portable Waterproof Speaker w/ Travel Bracket82FeatureInterior & Living SpacesSSSame11/20 1:39 PMSoundcore Boom Bluetooth Portable Waterproof Speaker w/ Travel Bracket
69" Wall Hugger Theater Seating w/ 2 Recliners83FeatureInterior & Living SpacesSSSame11/20 1:39 PM69" Wall Hugger Theater Seating w/ 2 Recliners
64" EZ-Glide Tri-Fold Sofa w/ Scotchgard Protection (54"x70" Sleeper)84FeatureInterior & Living SpacesSSSame11/20 1:39 PM64" EZ-Glide Tri-Fold Sofa w/ Scotchgard Protection (54"x70" Sleeper)
Well-Placed 110V Power Outlets w/ USB & USB-C High-Speed Charging Stations85FeatureInterior & Living SpacesSSSame11/20 1:39 PMWell-Placed 110V Power Outlets w/ USB & USB-C High-Speed Charging Stations
Pet-Friendly Package:86FeatureInterior & Living SpacesYSSSame11/20 1:39 PMPet-Friendly Package:
No or Limited Floors Ducts87FeatureInterior & Living SpacesSSSame11/20 1:39 PMNo or Limited Floors Ducts
100% Carpet Free88FeatureInterior & Living SpacesSSSame11/20 1:39 PM100% Carpet Free
Child/Pet Defender Screen Protector89FeatureInterior & Living SpacesSSSame11/20 1:39 PMChild/Pet Defender Screen Protector
Exterior Pet & Property Security Tie-Down 🐕 🚲90FeatureInterior & Living SpacesYSSSame11/20 1:39 PMExterior Pet & Property Security Tie-Down 🐕 🚲

Kitchen & Dining

91TitleKitchen & DiningYT25502850Same11/20 1:39 PMPremium Residential Drawers w/ Dovetail Joints Residential Solid Surface Kitchen Countertops Hutch Dinesk™ Sliding Dining Table/Desk (4 Positions, Seats 4), 2x Folding Chairs, Pull-Out Trash Bin w/ Utility Storage Stow 'n Go Paper Towel Caddy Magnetic Cabinet & Drawer Catches Dishwasher Prep (Water & 110V Power Outlet) Large Pantry w/ Pull-Out Drawer & 110V Appliance Power Outlets, 12 cu.ft. Energy Efficient 12-Volt Refrigerator Residential 30" Convection Microwave Oven Farmhouse Stainless Steel Sink w/ Tuff Coat & Roller Cover, Maxxair Fan w/ Rain Sensor
Premium Residential Drawers w/ Dovetail Joints92FeatureKitchen & DiningYSSSame11/20 1:39 PMPremium Residential Drawers w/ Dovetail Joints
Residential Solid Surface Kitchen Countertops93FeatureKitchen & DiningYSSSame11/20 1:39 PMResidential Solid Surface Kitchen Countertops

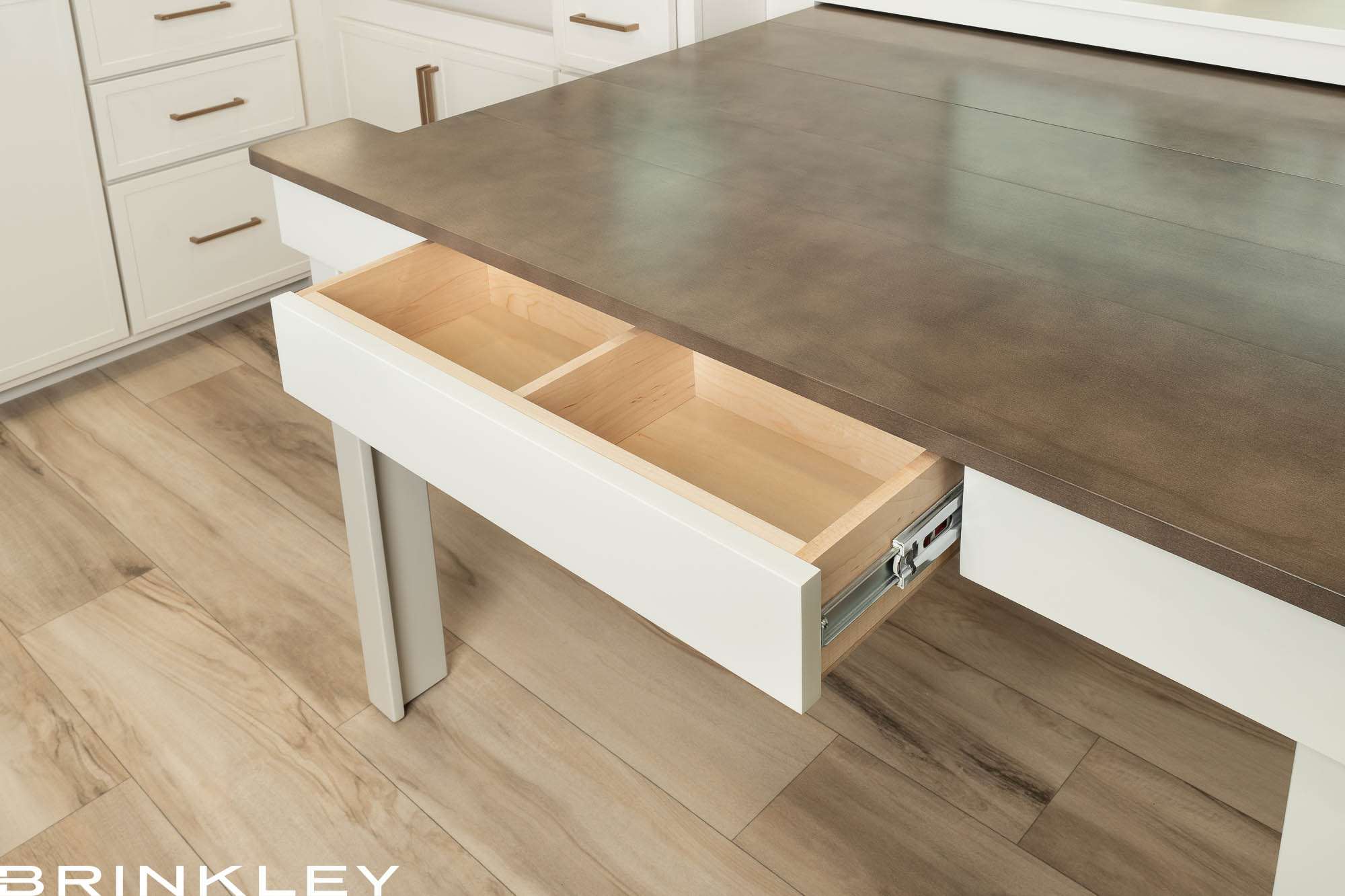

Hutch Dinesk™ Sliding Dining Table/Desk (4 Positions, Seats 4)94FeatureKitchen & DiningSSSame11/20 1:39 PMHutch Dinesk™ Sliding Dining Table/Desk (4 Positions, Seats 4)
2x Folding Chairs95FeatureKitchen & DiningSSSame11/20 1:39 PM2x Folding Chairs
Pull-Out Trash Bin w/ Utility Storage96FeatureKitchen & DiningYSSSame11/20 1:39 PMPull-Out Trash Bin w/ Utility Storage
Stow 'n Go Paper Towel Caddy97FeatureKitchen & DiningYSSSame11/20 1:39 PMStow 'n Go Paper Towel Caddy
Magnetic Cabinet & Drawer Catches98FeatureKitchen & DiningYSSSame11/20 1:39 PMMagnetic Cabinet & Drawer Catches
Dishwasher Prep (Water & 110V Power Outlet)99FeatureKitchen & DiningYSSSame11/20 1:39 PMDishwasher Prep (Water & 110V Power Outlet)
Large Pantry w/ Pull-Out Drawer & 110V Appliance Power Outlets100FeatureKitchen & DiningSSSame11/20 1:39 PMLarge Pantry w/ Pull-Out Drawer & 110V Appliance Power Outlets
12 cu.ft. Energy Efficient 12-Volt Refrigerator101FeatureKitchen & DiningYSSSame11/20 1:39 PM12 cu.ft. Energy Efficient 12-Volt Refrigerator
Residential 30" Convection Microwave Oven102FeatureKitchen & DiningYSSSame11/20 1:39 PMResidential 30" Convection Microwave Oven
Farmhouse Stainless Steel Sink w/ Tuff Coat & Roller Cover103FeatureKitchen & DiningSSSame11/20 1:39 PMFarmhouse Stainless Steel Sink w/ Tuff Coat & Roller Cover
Maxxair Fan w/ Rain Sensor104FeatureKitchen & DiningSSSame11/20 1:39 PMMaxxair Fan w/ Rain Sensor

Bathroom

105TitleBathroomYT25502850Same11/20 1:39 PMMarine Grade Dotless COB Neon LED Shower Lighting Space Saving Bathroom Pocket Door, Residential Solid Surface Bathroom Countertops Medicine Cabinet, Dual Access Bathroom to Bedroom Pass-Through Linen Storage Cabinet Stainless Steel Sink w/ Tuff Coat, Glass Sliding Shower Door, One-Piece 42"x30" Molded Fiberglass Shower w/ Built-In Seat Residential Shower System w/ Head & Handheld Sprayers, Overhead Shower Cove, Porcelain Toilet, Maxxair Fan w/ Rain Sensor
Marine Grade Dotless COB Neon LED Shower Lighting106FeatureBathroomYSSSame11/20 1:39 PMMarine Grade Dotless COB Neon LED Shower Lighting
Space Saving Bathroom Pocket Door107FeatureBathroomSSSame11/20 1:39 PMSpace Saving Bathroom Pocket Door
Residential Solid Surface Bathroom Countertops108FeatureBathroomYSSSame11/20 1:39 PMResidential Solid Surface Bathroom Countertops
Medicine Cabinet109FeatureBathroomSSSame11/20 1:39 PMMedicine Cabinet
Dual Access Bathroom to Bedroom Pass-Through Linen Storage Cabinet110FeatureBathroomYSSSame11/20 1:39 PMDual Access Bathroom to Bedroom Pass-Through Linen Storage Cabinet
Stainless Steel Sink w/ Tuff Coat111FeatureBathroomSSSame11/20 1:39 PMStainless Steel Sink w/ Tuff Coat
Glass Sliding Shower Door112FeatureBathroomSSSame11/20 1:39 PMGlass Sliding Shower Door
One-Piece 42"x30" Molded Fiberglass Shower w/ Built-In Seat113FeatureBathroomYSSSame11/20 1:39 PMOne-Piece 42"x30" Molded Fiberglass Shower w/ Built-In Seat
Residential Shower System w/ Head & Handheld Sprayers114FeatureBathroomSSSame11/20 1:39 PMResidential Shower System w/ Head & Handheld Sprayers
Overhead Shower Cove115FeatureBathroomSSSame11/20 1:39 PMOverhead Shower Cove
Porcelain Toilet116FeatureBathroomSSSame11/20 1:39 PMPorcelain Toilet
Maxxair Fan w/ Rain Sensor117FeatureBathroomSSSame11/20 1:39 PMMaxxair Fan w/ Rain Sensor

Bedroom

118TitleBedroomYT25502850Different11/20 1:39 PMDimmable Bedroom Lights Queen Bed w/ 7″ Memory Foam Mattress (60″x80″), Matching Comforter & 3 Pillow Package, Dual Reading Sconce Lights, Floor-to-Ceiling Wardrobe w/ Clothing Rod & Drawers, Dual Bedside Nightstands w/ Storage & 110V Power Outlets w/ USB & USB-C Charging Ports (CPAP Ready) Dual Bedside Nightstand Nooks w/ Outlets & USB & USB-C Charging Ports (CPAP Ready) Finished Under-Bed Storage Compartment w/ Motion Activated Lighting, Dual Bedside Wardrobes w/ Clothing Rods & Drawers, TV Prep (Coax, & 110V Outlets, Wall Mount Backer), 3x Wall Coat Hooks
Dimmable Bedroom Lights119FeatureBedroomYSSSame11/20 1:39 PMDimmable Bedroom Lights

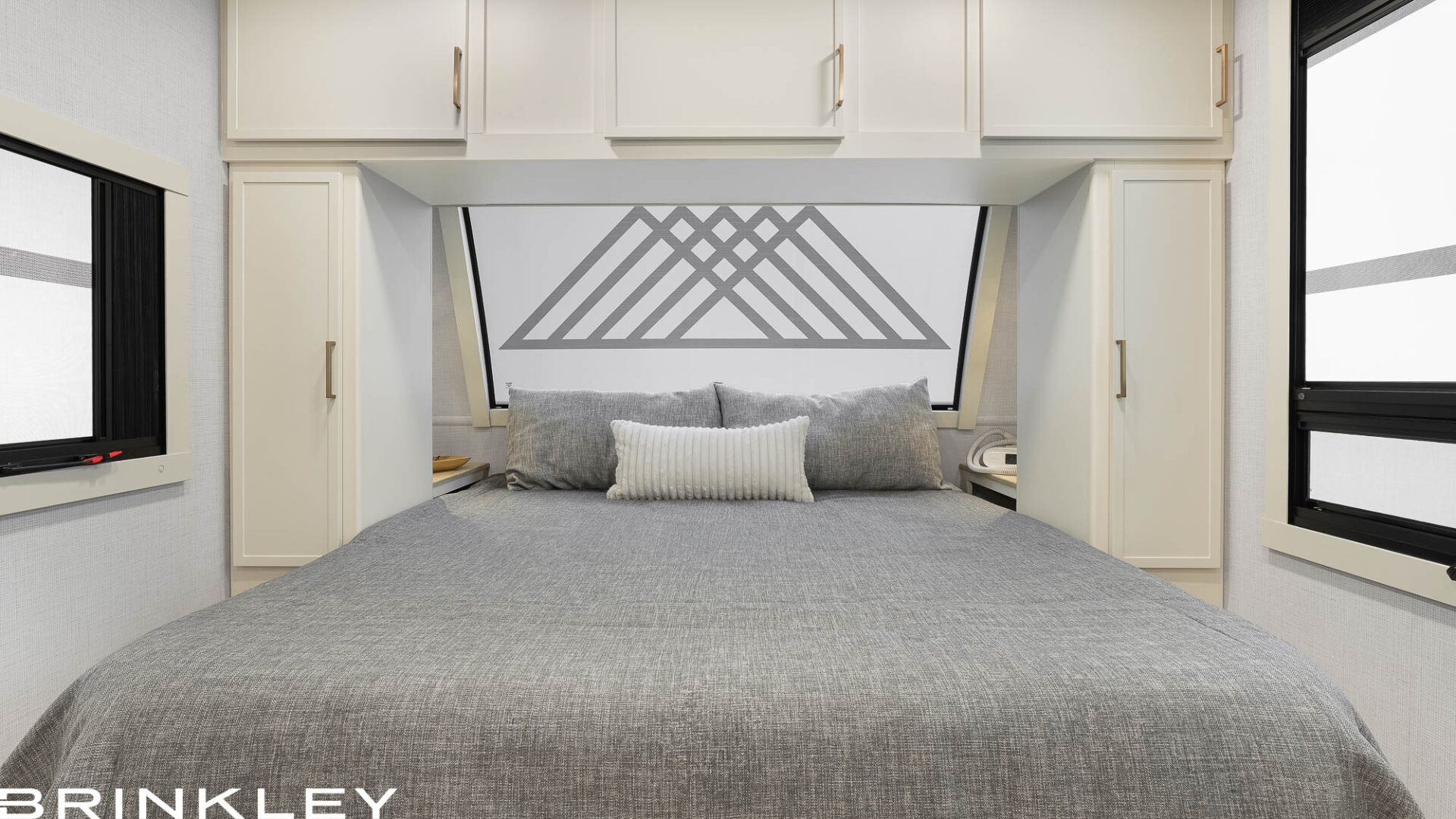

Queen Bed w/ 7″ Memory Foam Mattress (60″x80″)120FeatureBedroomSSSame11/20 1:39 PMQueen Bed w/ 7″ Memory Foam Mattress (60″x80″)
Matching Comforter & 3 Pillow Package121FeatureBedroomSSSame11/20 1:39 PMMatching Comforter & 3 Pillow Package
Dual Reading Sconce Lights122FeatureBedroomSSSame11/20 1:39 PMDual Reading Sconce Lights
Floor-to-Ceiling Wardrobe w/ Clothing Rod & Drawers123FeatureBedroomSSSame11/20 1:39 PMFloor-to-Ceiling Wardrobe w/ Clothing Rod & Drawers
Dual Bedside Nightstands w/ Storage & 110V Power Outlets w/ USB & USB-C Charging Ports (CPAP Ready)124FeatureBedroomYSSSame11/20 1:39 PMDual Bedside Nightstands w/ Storage & 110V Power Outlets w/ USB & USB-C Charging Ports (CPAP Ready)
Finished Under-Bed Storage Compartment w/ Motion Activated Lighting126FeatureBedroomSSSame11/20 1:39 PMFinished Under-Bed Storage Compartment w/ Motion Activated Lighting
TV Prep (Coax, & 110V Outlets, Wall Mount Backer)128FeatureBedroomSSSame11/20 1:39 PMTV Prep (Coax, & 110V Outlets, Wall Mount Backer)
3x Wall Coat Hooks129FeatureBedroomSSSame11/20 1:39 PM3x Wall Coat Hooks

Construction & Warranty

130TitleConstruction & WarrantyYT25502850Same11/20 1:39 PMDesigned For Full-Time RVing ✪ Warrantied for Full-Time RVing 1-Year Transferrable Limited Base Warranty, 3-Year Limited Structural Warranty, 3-Year Limited Internal Seals & Gasket Warranty Brinkley Automotive Exterior Seals Package! Low-Maintenance Roof (Industry 1st) 20-Year Roof Membrane Warranty & 25-Year Seal Warranty, 5-Year Limited w/ 1-Year No Questions Tire Warranty, Complimentary 24/7 Roadside Assistance (12 Months) Developed by Campers with Customer Feedback Basement Utility Access w/ Removable Sliding Doors & Motion Activated Lights, Automotive-Style Riveted Wheel Skirts & Panels, Reinforced & Walkable Slide Roofs, Thermaflex® No Kink No Tear Heat Ducts Composite Floors (Main & Slide-Out) Pre-Engineered & Assembled Wiring Harnesses, Loomed, Labeled, & Color Coded for Easy Serviceability (Segment-First) Water Shutoff Valve on ALL Fixtures Brass Plumbing Fittings (Segment First) Industry Best Insulation Package: R40 Roof, R9 Walls, R40 Floor Insulation, Double Insulated Roof, Front Cap, & Main Floor, Heated & Enclosed Underbelly (Circulated Forced Air), Insulated Slide-Out Floors, Every Coach Every Time - Industry Leading Pre-Delivery Tests & Inspection Process: Industry Leading 350+ Point Inspection & Testing Process Off-Road Simulation Tested (Industries Exclusive) Complete Unit Pressure Test (Seals, Gaskets, Slide-Out, Etc.)
Designed For Full-Time RVing ✪ Warrantied for Full-Time RVing131FeatureConstruction & WarrantyYSSSame11/20 1:39 PMDesigned For Full-Time RVing ✪ Warrantied for Full-Time RVing
1-Year Transferrable Limited Base Warranty132FeatureConstruction & WarrantySSSame11/20 1:39 PM1-Year Transferrable Limited Base Warranty
3-Year Limited Structural Warranty133FeatureConstruction & WarrantySSSame11/20 1:39 PM3-Year Limited Structural Warranty
3-Year Limited Internal Seals & Gasket Warranty134FeatureConstruction & WarrantyYSSSame11/20 1:39 PM3-Year Limited Internal Seals & Gasket Warranty
Brinkley Automotive Exterior Seals Package!135FeatureConstruction & WarrantyYSSSame11/20 1:39 PMBrinkley Automotive Exterior Seals Package!
Low-Maintenance Roof (Industry 1st)136FeatureConstruction & WarrantyYSSSame11/20 1:39 PMLow-Maintenance Roof (Industry 1st)
20-Year Roof Membrane Warranty & 25-Year Seal Warranty137FeatureConstruction & WarrantySSSame11/20 1:39 PM20-Year Roof Membrane Warranty & 25-Year Seal Warranty
5-Year Limited w/ 1-Year No Questions Tire Warranty138FeatureConstruction & WarrantySSSame11/20 1:39 PM5-Year Limited w/ 1-Year No Questions Tire Warranty
Complimentary 24/7 Roadside Assistance (12 Months)139FeatureConstruction & WarrantyYSSSame11/20 1:39 PMComplimentary 24/7 Roadside Assistance (12 Months)
Developed by Campers with Customer Feedback140FeatureConstruction & WarrantyYSSSame11/20 1:39 PMDeveloped by Campers with Customer Feedback
Basement Utility Access w/ Removable Sliding Doors & Motion Activated Lights141FeatureConstruction & WarrantySSSame11/20 1:39 PMBasement Utility Access w/ Removable Sliding Doors & Motion Activated Lights
Automotive-Style Riveted Wheel Skirts & Panels142FeatureConstruction & WarrantySSSame11/20 1:39 PMAutomotive-Style Riveted Wheel Skirts & Panels
Reinforced & Walkable Slide Roofs143FeatureConstruction & WarrantySSSame11/20 1:39 PMReinforced & Walkable Slide Roofs
Thermaflex® No Kink No Tear Heat Ducts144FeatureConstruction & WarrantyYSSSame11/20 1:39 PMThermaflex® No Kink No Tear Heat Ducts
Pre-Engineered & Assembled Wiring Harnesses, Loomed, Labeled, & Color Coded for Easy Serviceability (Segment-First)146FeatureConstruction & WarrantyYSSSame11/20 1:39 PMPre-Engineered & Assembled Wiring Harnesses, Loomed, Labeled, & Color Coded for Easy Serviceability (Segment-First)
Water Shutoff Valve on ALL Fixtures147FeatureConstruction & WarrantyYSSSame11/20 1:39 PMWater Shutoff Valve on ALL Fixtures
Brass Plumbing Fittings (Segment First)148FeatureConstruction & WarrantyYSSSame11/20 1:39 PMBrass Plumbing Fittings (Segment First)
Industry Best Insulation Package:149FeatureConstruction & WarrantyYSSSame11/20 1:39 PMIndustry Best Insulation Package:
R40 Roof, R9 Walls, R40 Floor Insulation150FeatureConstruction & WarrantySSSame11/20 1:39 PMR40 Roof, R9 Walls, R40 Floor Insulation
Double Insulated Roof, Front Cap, & Main Floor151FeatureConstruction & WarrantySSSame11/20 1:39 PMDouble Insulated Roof, Front Cap, & Main Floor
Heated & Enclosed Underbelly (Circulated Forced Air)152FeatureConstruction & WarrantySSSame11/20 1:39 PMHeated & Enclosed Underbelly (Circulated Forced Air)
Insulated Slide-Out Floors153FeatureConstruction & WarrantySSSame11/20 1:39 PMInsulated Slide-Out Floors
Every Coach Every Time - Industry Leading Pre-Delivery Tests & Inspection Process:154FeatureConstruction & WarrantyYSSSame11/20 1:39 PMEvery Coach Every Time - Industry Leading Pre-Delivery Tests & Inspection Process:
Industry Leading 350+ Point Inspection & Testing Process155FeatureConstruction & WarrantyYSSSame11/20 1:39 PMIndustry Leading 350+ Point Inspection & Testing Process
Off-Road Simulation Tested (Industries Exclusive)156FeatureConstruction & WarrantyYSSSame11/20 1:39 PMOff-Road Simulation Tested (Industries Exclusive)
Complete Unit Pressure Test (Seals, Gaskets, Slide-Out, Etc.)157FeatureConstruction & WarrantyYSSSame11/20 1:39 PMComplete Unit Pressure Test (Seals, Gaskets, Slide-Out, Etc.)

MODEL I SPECIFICATIONS

Weights, Dimensions, & Capacities

Model I (FW)2550
WEIGHTS

WEIGHTS

2550

Title21
WEIGHTSUVW (lbs.)8,49731
WEIGHTSGVWR (lbs.)11,99541
WEIGHTSHitch (lbs.)1,45051

Empty61
AXLES & TIRES

AXLES & TIRES

2550

Title71
AXLES & TIRESAxle Rating (lbs.)Tandem 6k81
AXLES & TIRESSprings Rating (lbs.)6k91
AXLES & TIRESTire & Wheel Size235/80 R16101
AXLES & TIRESTire Load RangeE111
AXLES & TIRESTire Ply10121

Empty131
TANK CAPACITYWATER

TANK CAPACITY

2550

Title251
TANK CAPACITYWATERFresh Water (gal.)55261
TANK CAPACITYWATERGray Water (gal.)111 (74 True + 37)271
TANK CAPACITYWATERBlack Water (gal.)44281
TANK CAPACITYLP (lbs.)60 (30+30) Up to 80291

Empty301
EXTERIOR

EXTERIOR

2550

Title142
EXTERIORLength28' 11"152
EXTERIORHeight12' 10"162
EXTERIORWidth96"172
EXTERIORCargo Storage (cu.ft.)90+182

Empty192
INTERIOR HEIGHT

INTERIOR HEIGHT

2550

Title202
INTERIOR HEIGHTBath Ceilings77.5"212
INTERIOR HEIGHTBedroom Ceilings77.5"222
INTERIOR HEIGHTBed Sliden/a232
INTERIOR HEIGHTMain Slide(s)74"232

Empty242
INSULATION

INSULATION

2550

Title302
INSULATIONFloor R-ValueR40312
INSULATIONCeiling R-ValueR40322
INSULATIONWalls R-ValueR9332

Empty352

IN THEIR WORDS

WHAT OUR CUSTOMERS ARE SAYING

Scott H.

Better than the [competitor] I was going to purchase. Brinkley is an innovator!

Scott H.

Better than the [competitor] I was going to purchase. Brinkley is an innovator!

Rv D.

Brinkley is the best of the best in every possible measurable category. As someone who's spent many years around RVs and RV manufacturers, I'm genuinely impressed by what Brinkley RV has been doing.

Rv D.

Brinkley is the best of the best in every possible measurable category. As someone who's spent many years around RVs and RV manufacturers, I'm genuinely impressed by what Brinkley RV has been doing.

Barbara B.

We took our first long trip in October with our new 2024 Brinkley. We had no issues with it. Everything went smoothly. We are so happy with our Brinkley!

Barbara B.

We took our first long trip in October with our new 2024 Brinkley. We had no issues with it. Everything went smoothly. We are so happy with our Brinkley!

Ryan K.

Very impressed with the attention to detail and quality control that prevents so many headaches down the road. Never cut corners and always do the right thing. A company with values I can stand behind!!!

Ryan K.

Very impressed with the attention to detail and quality control that prevents so many headaches down the road. Never cut corners and always do the right thing. A company with values I can stand behind!!!

Sharon S.

I have nothing but praise for Brinkley’s customer service people. They were so understanding and helpful, providing the parts we might need for our refrigerator repair. Adventure RV fit us in the next day, and four hours later, we were on our way home again. Thanks to all of you!

Sharon S.

I have nothing but praise for Brinkley’s customer service people. They were so understanding and helpful, providing the parts we might need for our refrigerator repair. Adventure RV fit us in the next day, and four hours later, we were on our way home again. Thanks to all of you!

Ryan K.

The best trailer I’ve owned or seen in quite some time. It’s like living in a studio apartment. It’s been great in monsoon rains, high winds, and 30-below weather. I bought it sight unseen, and it did not disappoint!

Ryan K.

The best trailer I’ve owned or seen in quite some time. It’s like living in a studio apartment. It’s been great in monsoon rains, high winds, and 30-below weather. I bought it sight unseen, and it did not disappoint!

Becky E.

We had some kinks to work out in our first year, but Brinkley Customer Care has been wonderful right from the start. While on the road, they helped us find mobile techs, sent parts, and talked us through maintenance issues. Their factory warranty work went above and beyond. When it’s time to upgrade, it will definitely be another Brinkley!

Becky E.

We had some kinks to work out in our first year, but Brinkley Customer Care has been wonderful right from the start. While on the road, they helped us find mobile techs, sent parts, and talked us through maintenance issues. Their factory warranty work went above and beyond. When it’s time to upgrade, it will definitely be another Brinkley!

Dave W.

The Brinkley Owners Meetup in Texas was one of the best experiences we’ve had traveling around the United States! Huge shout-out to the team for keeping everything organized and well-communicated. You can really tell how much they care about their owners and the community they’ve built.

Dave W.

The Brinkley Owners Meetup in Texas was one of the best experiences we’ve had traveling around the United States! Huge shout-out to the team for keeping everything organized and well-communicated. You can really tell how much they care about their owners and the community they’ve built.

Todd S.

Excellent company that makes an excellent camper. Couldn't be happier with our choice to purchase a Brinkley.

Todd S.

Excellent company that makes an excellent camper. Couldn't be happier with our choice to purchase a Brinkley.

Brinkley RV Model 3100 Review Video

WHAT ARE OUR CUSTOMERS SAYING?

– I don’t know other executives at companies that RV… It shows in the (Brinkley) quality and all the little things that we see, including the fit and finish of everything…

– Don Maycock

Brinkley RV Factory Tours Goshen Elkhart Indiana

NOW BOOKING FACTORY TOURS

Join us for an exclusive behind-the-scenes look at the production of a Brinkley RV. We’ll take you through the manufacturing process and details of how we meticulously create a Brinkley RV.

New Fifth Wheels Video

R&D HITS THE ROAD

We are living the RV lifestyle right alongside you by hitting the road with Brinkley RV’s own Model Z. These adventures help us learn how we can improve our RVs based on our own camping experiences.

Don’t miss what’s next for the Model I

Sign up for the Brinkley RV newsletter and be the first to know about news, product updates, new floorplans, promotions, and more. Not a fan of spam? Neither are we. You can unsubscribe at any time.

* indicates required
