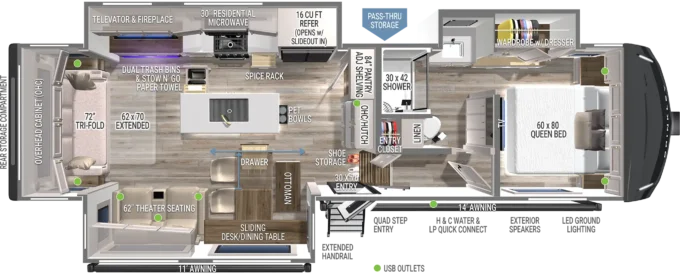

Brinkley RV Model Z 2900 Fifth Wheel Floorplan

MODEL Z 2900

REAR LIVING, GOURMET KITCHEN, walkthrough bath

Standard Run MSRP $102,659

VIRTUAL TOUR

GALLERY

Z 2900 Interior

Z 2900 Bedroom & Bathroom

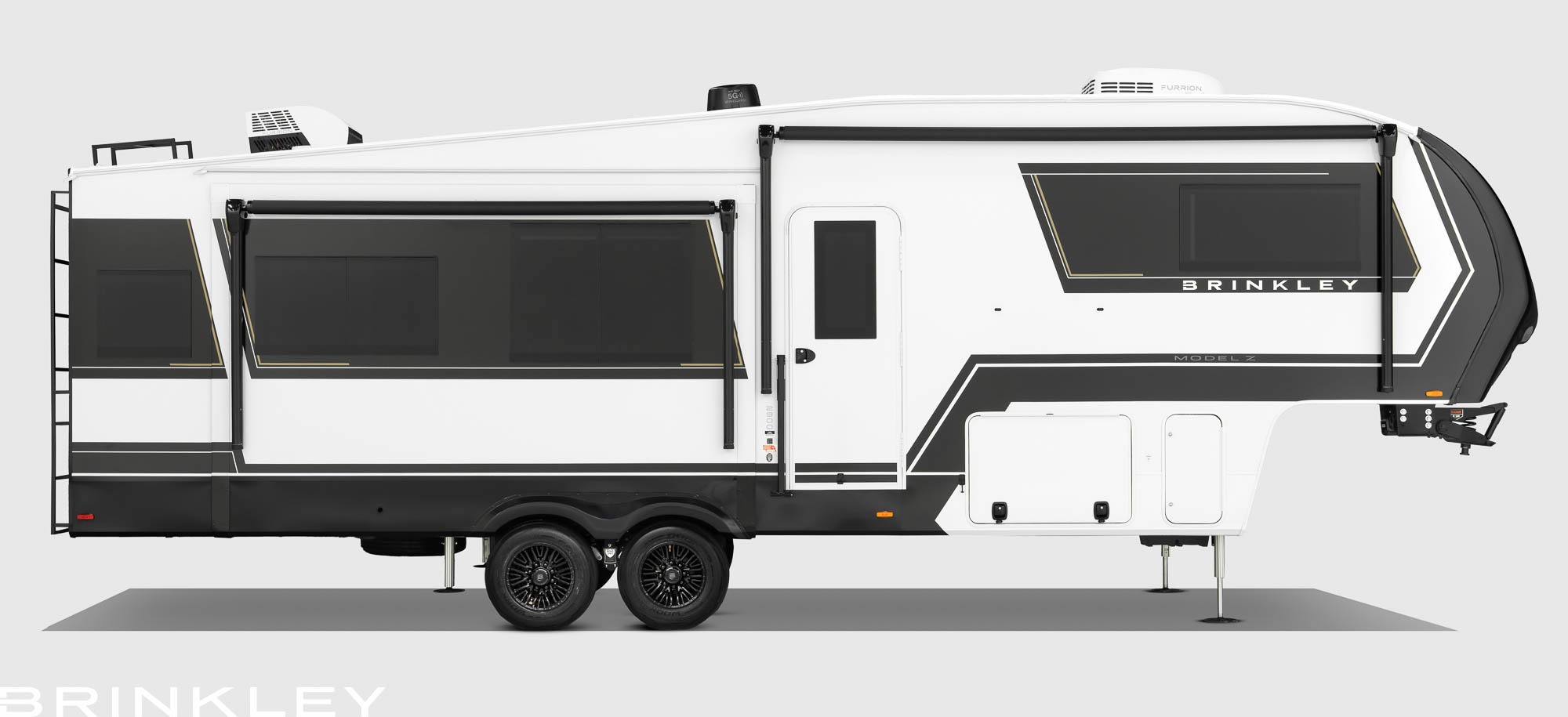

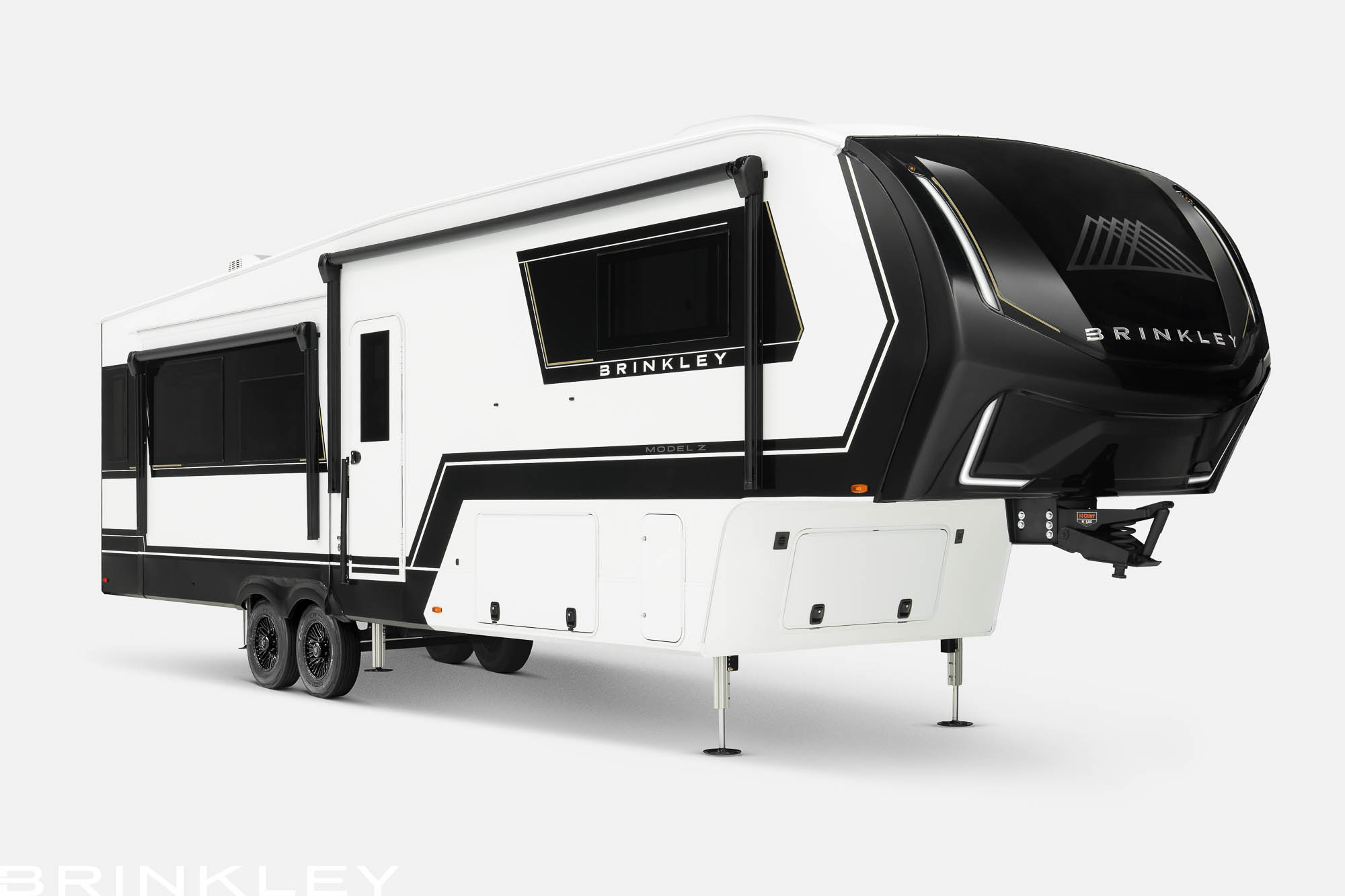

Z 2900 Exterior

Click to expand.

Related Videos

FEATURES

Z 2900 STANDARDS & OPTIONS

Click on a category to expand.

  • Standard
  • Option
  • More Info
  • Hot Feature

Chassis & Suspension

  • Commercial Grade H-Rated 16 Ply Cooper Tires
  • 17.5″ Custom Aluminum Luxury Wheels
  • Banded Tire Pressure Monitoring System (TPMS) w/ Wireless Display
  • Monotube Chassis
  • One-Touch Automatic Leveling System w/ Wide-Stance Jacks
  • Heavy Duty 7,000 lbs. Axles w/ 8,000 lbs. Leaf Springs
  • Reinforced Axle Hangers
  • High-Performance Road Armor™ Suspension Equalizer System
  • Over 2,500 lbs. of Gross Carrying Capacity
  • Upgraded 2″ Tow-Ready Receiver Hitch (300 lbs carry 3,000 lbs Towing Capacity)
  • Upgraded 6′ Coiled Breakaway Safety Cable
  • LED Under-Coach Ground Lighting

Exterior & Storage

  • Square Euro Frameless Windows w/ 6″ Openings (Industry 1st)
    • Dual Pane Square Euro Frameless Windows w/ 6″ Openings ($1,586)
  • Window Intergraded Screens & Shades w/ Reflective Insulation
  • Sleek & Clean Styling w/ Automotive-Grade Exterior Graphics
  • Automotive Front Cap, Lights, & Lenses
  • Exterior Speakers w/ Bluetooth & Campside Controls
  • Dual Electric Awnings w/ LED Lighting
  • Motion Activated LED Scare Light
  • Backup Camera & Wireless Monitor
  • Winegard Air 360+ TV & FM Antenna
  • Over 130 Cubic Feet of Exterior Storage
  • Heated & Insulated Pass-Through Storage Compartment w/ Motion Lighting & Power Outlets
  • Heated Rear Storage Compartment w/ Motion Light & Power Outlets
  • Oversized Front Storage Compartment
  • Tough-Ply Floor & Walls in Storage Compartments
  • Slam Latch Baggage Doors
  • Pet & Property Security Tie-Down 🐕 🚲
  • Oversized 76″x30″ Deluxe Entrance Door Package:
    • Keyless Entry
    • Integrated Window Shade
    • Child/Pet Defender Screen Protector
    • Slapshot Screen Door Opener
    • Screen Assist – Bounceback Technology
    • 54″ Telescoping Entry Grab Handle (Extends to Bottom Step)
  • Extra-Wide Tip-To-Clean Entry Steps

Solar, Electrical & HVAC

  • 370 Watt Solar Panel (740 Watt Ready)
  • 50 Amp MPPT Solar Controller (Inverter Prep & Lithium Ready)
  • Pre-Wired For Up To 5.5k Generator (Front Storage Compartment)
  • 18k BTU Rear Furrion Chill Cube Air Conditioner (Main)
  • 13.5k BTU Front Air Conditioner (Bed & Bath)
  • Brinkley Smart-Command™ Center w/ App Control
  • Thermaflex® No Kink No Tear Heat Ducts
  • Loomed, Labeled, & Color Coded Wiring Harness for Easy Serviceability
  • Wire Conduit for Aftermarket Upgrades (Roof> Hutch> Basement)
  • Detachable Power Cord w/ LED Indicator Light
  • Dual Recessed EZ Access Battery Battery Box
  • 35K BTU High-Capacity Furnace
  • Dual Attic Vents

Plumbing & LP

  • Brass Plumbing Fittings (Industry First)
  • Water Shutoff Valve on ALL Fixtures
  • Upgraded Holding Tanks w/ True Capacities
  • Thermofoil Insulated & Heated Holding Tanks w/ Steel Cross Supports
  • 2x Hot/Cold Exterior Spray Ports (Campside & Off-Campside)
  • Tankless On-Demand Hot Water Heater (144 Gallons Per Hour)
  • Brinkley On-Command™ Docking & Utility Center
  • 65′ Retractable City Water Hose
  • EZ Winterization Valve in Utility Center
  • 2x 90-Degree Brass Elbows for Docking Station Water Hoses
  • Electric Waste Valves w/ Indicator Light & Manual-Override (Enclosed & Heated)
  • Clear Cap on Termination Valve
  • Single Termination Plumbing
  • Extended Sewage Hose Storage
  • 2x 30 lbs. LP/Propane Tanks (Fits 20 to 40 lbs. Bottles)
  • LP-IQ Propane Gauge
  • Exterior LP Quick Connect

Interior & Living Spaces

  • Brinkley CraftSense™ Wood Trim Construction
  • 76″ Kitchen & Dinette/Livingroom Slide Out Height
  • Integrated Window Screens & Insulated Blackout Blinds
  • Over 20 Outlets
  • Well-Placed Outlets w/ USB & USB-C High-Speed Charging Stations
  • Pet-Friendly Package:
    • Ductless Floors in Main Living Areas
    • Child/Pet Defender Screen Protector
    • 100% Carpet Free
    • Pull-Out Storage for ‘Stewy’ w/ Removable Pet Bowls
    • Exterior Pet & Property Security Tie-Down 🐕 🚲
  • Dimmable Living Room Lights
  • DUAL Flush Floor Galley & Livingroom Slides (Segment First)
  • Floating Entrance Steps w/ Indirect Lighting & Double Deep Shoe Storage
  • Entertainment Televator w/ 50″ Smart TV
  • Premium Audio System w/ Bluetooth
  • Entertainment Shelf (Behind TV)
  • Fireplace w/ 5,000 BTU Electric Heat
  • Theater Seating w/ Heat & Wireless Charging
  • 72″ Trifold Sofa w/ Scotchgard Protection
  • Residential End Tables w/ Storage & Pop-Up Outlets & USB Ports
  • Space-Saving Bench Ottoman/Coffee Table & Workstation w/ Storage
  • Floating Dinette Table
  • Convenient Silverware Drawer in Dinette Table
  • Soft-Close Cabinet Doors

Kitchen

  • Premium Residential Drawers w/ Dovetail Joints
  • Dual Pull-Out Trash Bins
  • Stow ‘N Go Paper Towel Holder
  • Built In Spice Rack Drawer
  • Premium Residential Soft Close Cabinets
  • Residential Solid Surface Countertops
  • Residential Tile Backsplash
  • Magnetic Cabinet & Drawer Catches
  • 84” Pantry w/ Adjustable Shelves & Appliance Outlet
  • One-Piece Steel Island Base (Super Stable)
  • 16 Cubic Feet Energy Efficient 12-Volt Refrigerator (Accessible w/ Slides In)
  • Farmhouse Sink & Roller Cover
  • Residential 30″ Microwave
  • Soffit & Island Base w/ Indirect Mood Light
  • Maxxair Fan (Kitchen)

Bathroom

  • Walkthrough Bathroom
  • Marine Grade Neon LED Shower Lighting
  • Space Saver Bathroom Doors
  • Backlit Recessed Bathroom Medicine Cabinet
  • Large Solid Surface Lavatory Countertop
  • Glass Sliding Shower Door
  • One-Piece 30″ x 42″ Fiberglass Shower Surround
  • Shower Seat Install Prep
  • Residential Shower System w/ Head, Body, & Handheld Sprayer
  • 3 Matching Bath Hooks
  • Toilet Paper Holder w/ Magnetic Travel Keeper
  • 79.5″ Bathroom Ceiling Height
  • Porcelain Toilet
  • Maxxair Fan

Bedroom

  • 79.5″ Bedroom Ceiling Height
  • Dimmable Bedroom Lights
  • Queen Bed w/ Residential 9″ Memory Foam Mattress (60″x80″) & Nightstands
  • Finished Under-Bed Storage Compartment w/ Motion Activated Lighting
  • Dual Motion Activated LED Bed Lights
  • Dual Bedside Outlets w/ USB & USB-C
  • Dual Reading Sconce Lights
  • Bright LED Closet Lighting
  • Convenient Wardrobe Outlet
  • Wardrobe Closet w/ Dresser
  • 32″ Smart TV
  • Folding Wall Hooks

Construction & Warranty

  • 1-Year Transferrable Limited Base Warranty
  • 3-Year Limited Structural Warranty
  • Warrantied for Full Time RV’ing
  • Low-Maintenance Roof
  • 20-Year Roof Membrane Warranty & 25-Year Seal Warranty
  • 5-Year Limited w/ 1-Year No Questions Tire Warranty
  • Complimentary 24/7 Roadside Assistance (12 Months)
  • Basement Utility Access w/ Removable Sliding Doors & Motion Activated Lights
  • Brinkley Automotive-Grade Sealant Package
  • Flush Floor Galley & Livingroom Slides (Segment 1st)
  • Bedroom Slim Rack Slide System
  • Automotive-Style Riveted Wheel Skirts & Panels
  • Laminated Exterior Walls w/ High-Gloss Gel Coat Fiberglass & Azdel
  • Reinforced & Walkable Slide Roofs
  • Thermaflex® No Kink No Tear Heat Ducts
  • Loomed, Labeled, & Color Coded Wiring Harness for Easy Serviceability
  • Water Shutoff Valve on ALL Fixtures
  • Brass Plumbing Fittings (Segment First)
  • Industry Best Insulation Package:
    • R40 Roof, R11 Walls, R40 Floor Insulation
    • Double Insulated Roof, Front Cap, & Main Floor
    • Heated & Enclosed Underbelly (Circulated)
    • Insulated Slideout Floors
    • Insulated & Trimmed Pinbox 🐦 🪹
  • Every Coach Every Time Industry Leading Pre-Delivery Tests & Inspection Process:
    • Industry Leading 350+ Point Inspection & Testing Process
    • Road Simulation Tested (Industries Exclusive)
    • Complete Unit Pressure Test (Seals, Gaskets, Slideout, Etc.)

SPECIFICATIONS

Z 2900 Weights, Dimensions, & Capacities

UVW11,674 lbs.
GVWR14,495 lbs.
Hitch Weight2,081 lbs.
Axle / Springs Ratings7k / 8k lbs.
Tire & Wheel Size215/75 R17.5
Tire RatingH-Rated (16-ply)
Exterior Length32′ 11″
Overall Height13′ 2″
Exterior Width96″
Interior Bath & Bedroom Height79 1/2″
Interior Slide Height76″
Fresh Water Capacity75 gal.
Gray Water Capacity 90 gal.
Black Water Capacity45 gal.
Floor Insulation R-ValueR40
Walls Insulation R-ValueR11
Ceiling Insulation R-ValueR40
