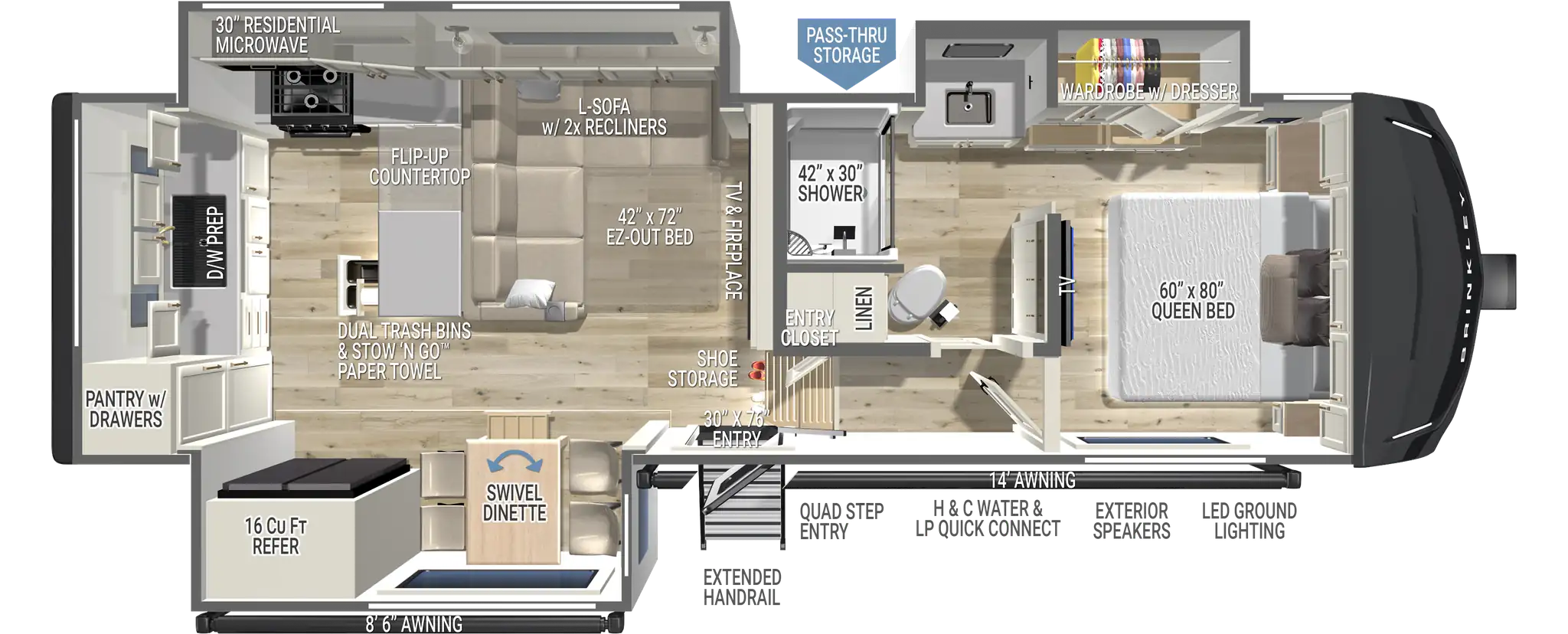

2027 Model Z 2700 Fifth Wheel Floorplan Layout

MODEL Z 2700

29′ 11″ Large rear kitchen, family seating, walkthrough bath.

Standard Run MSRP $121,098

Z 2700 VIRTUAL TOUR

Z 2700 GALLERY

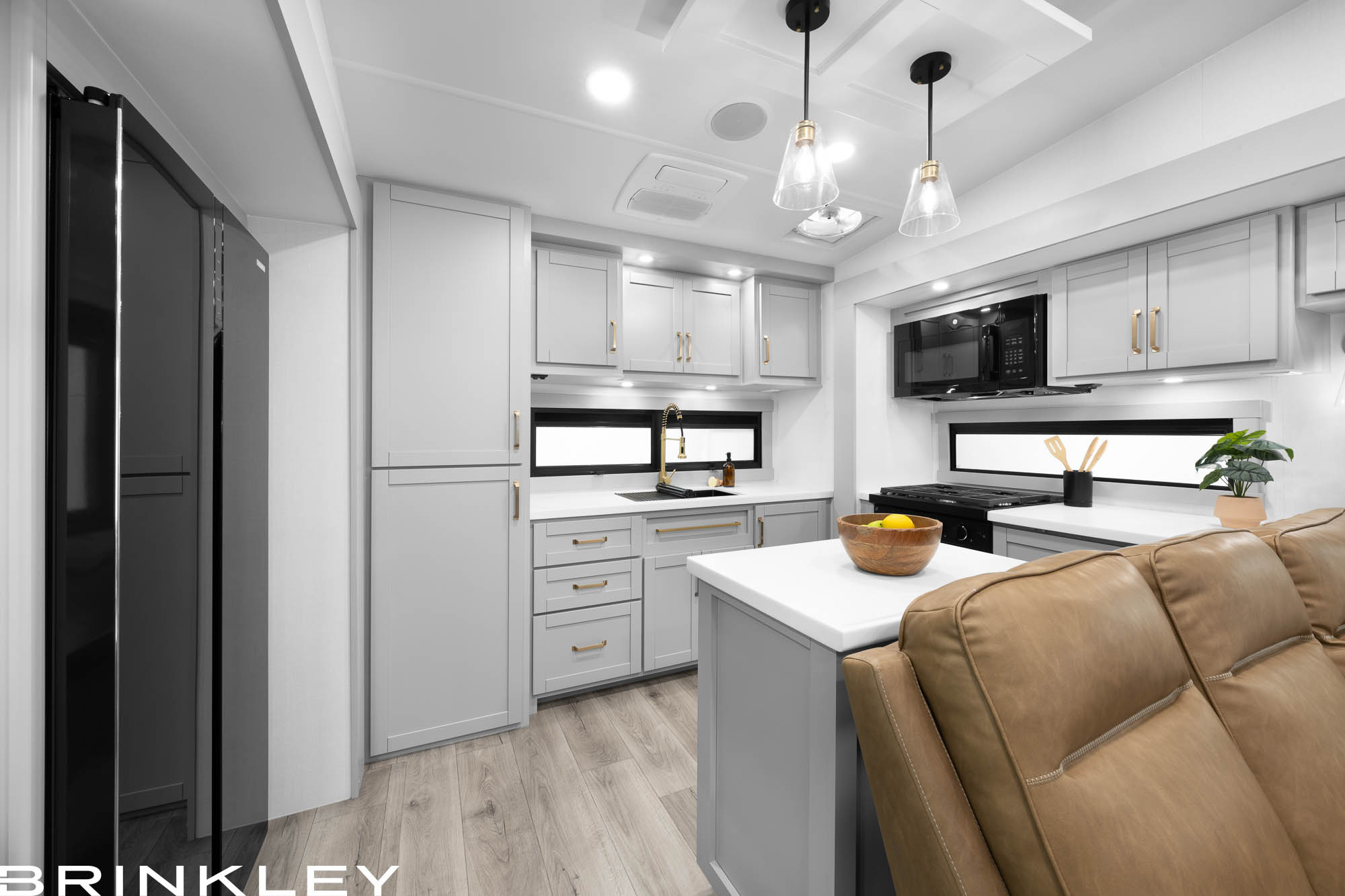

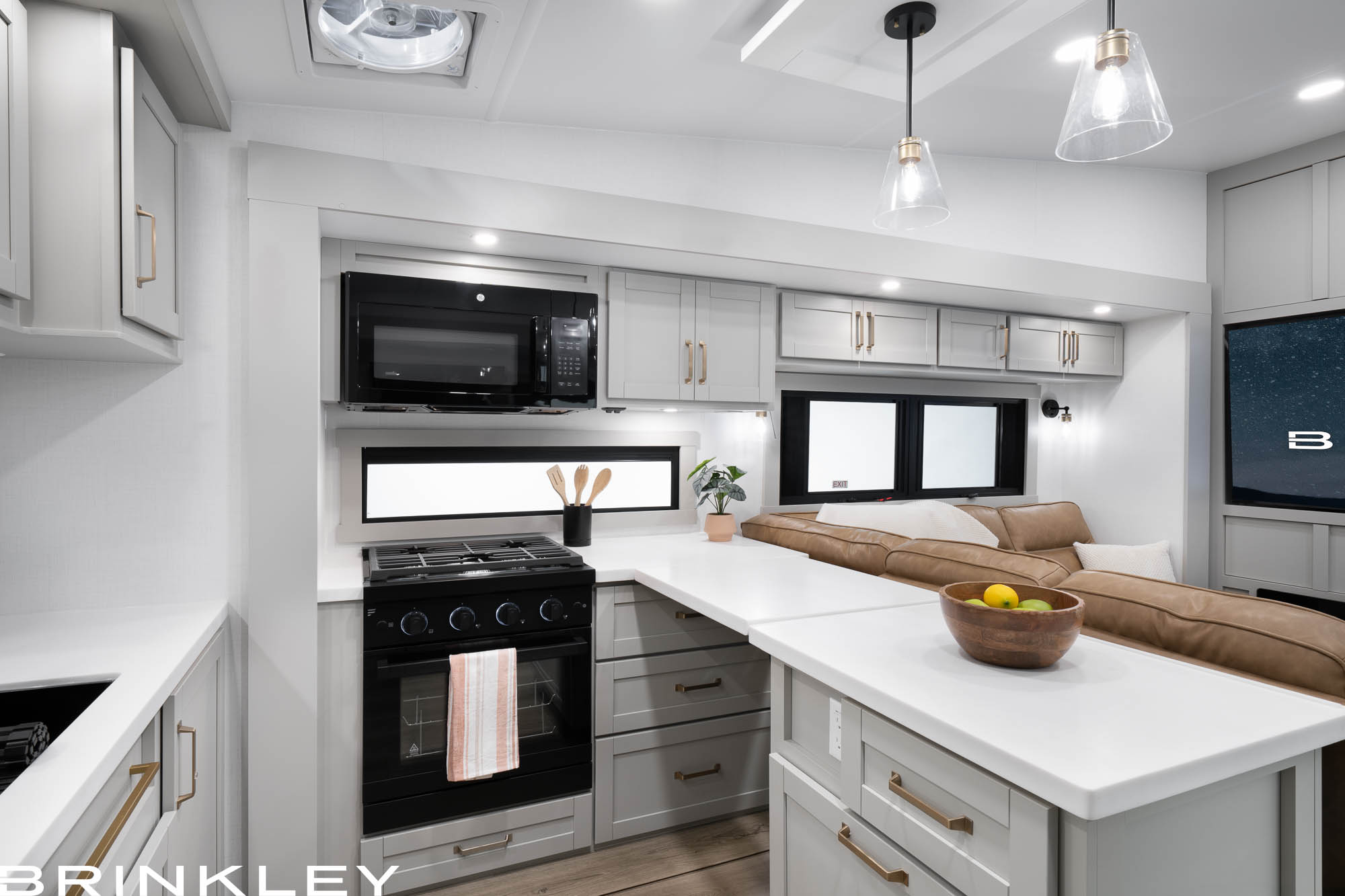

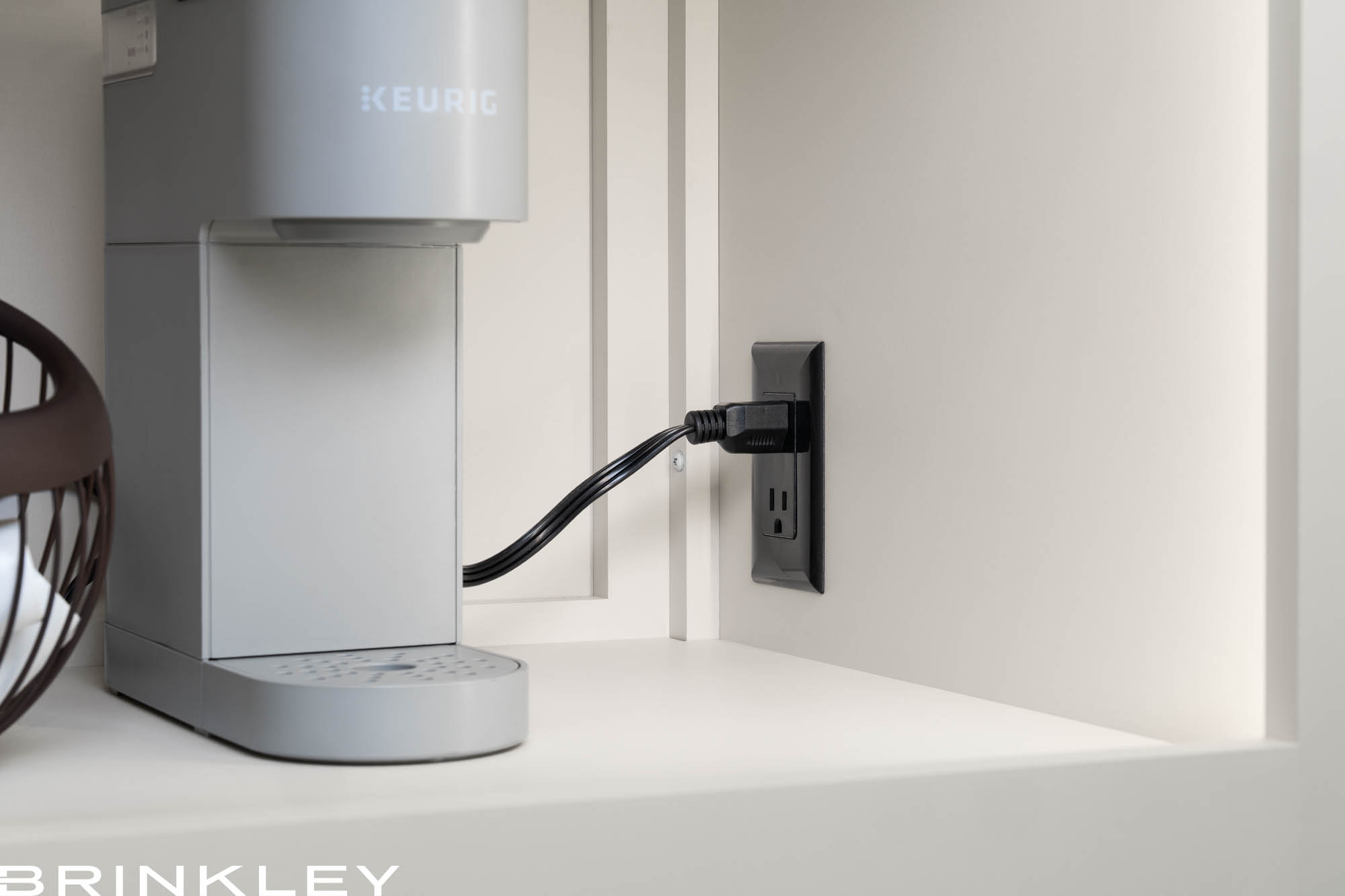

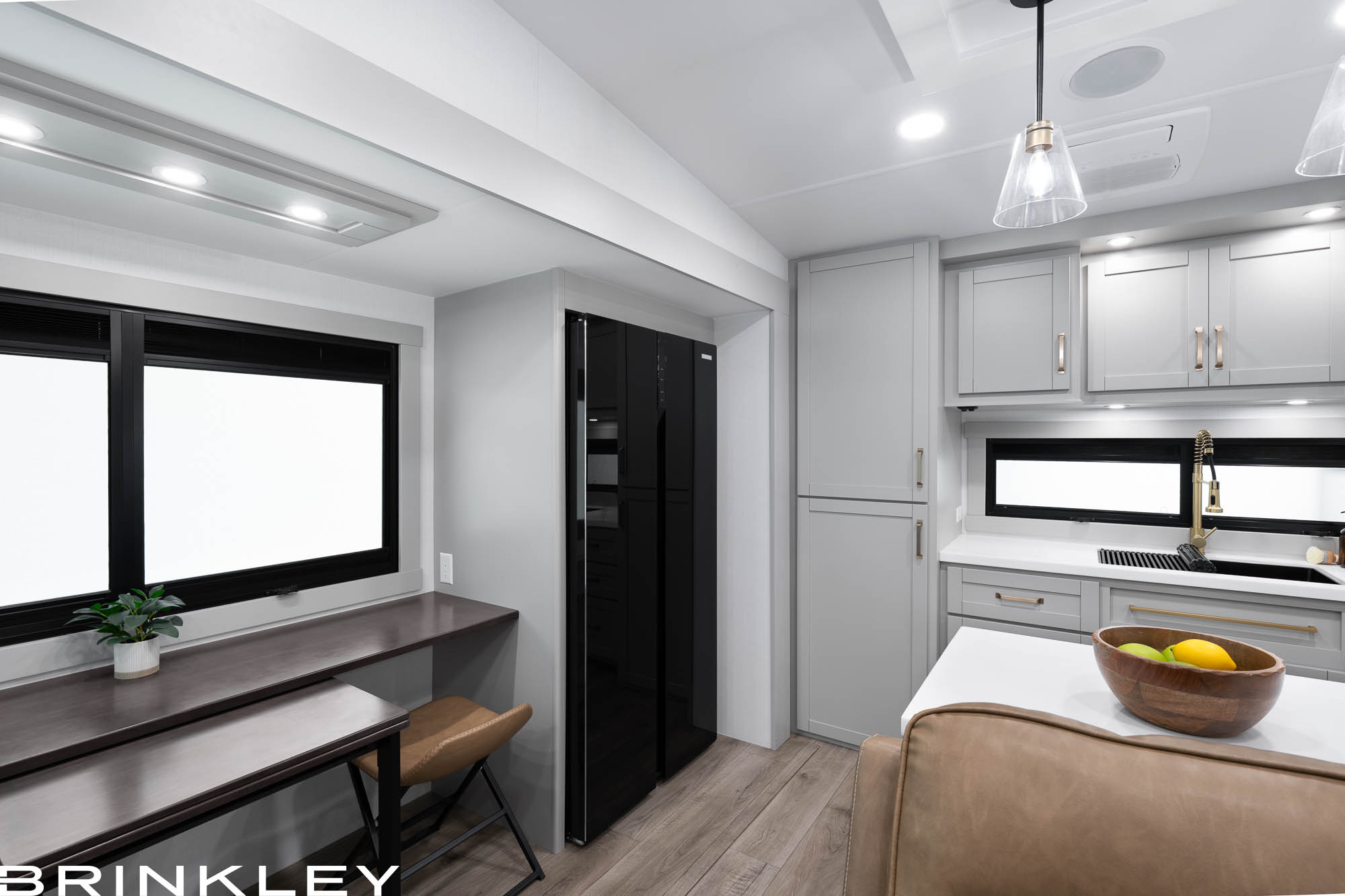

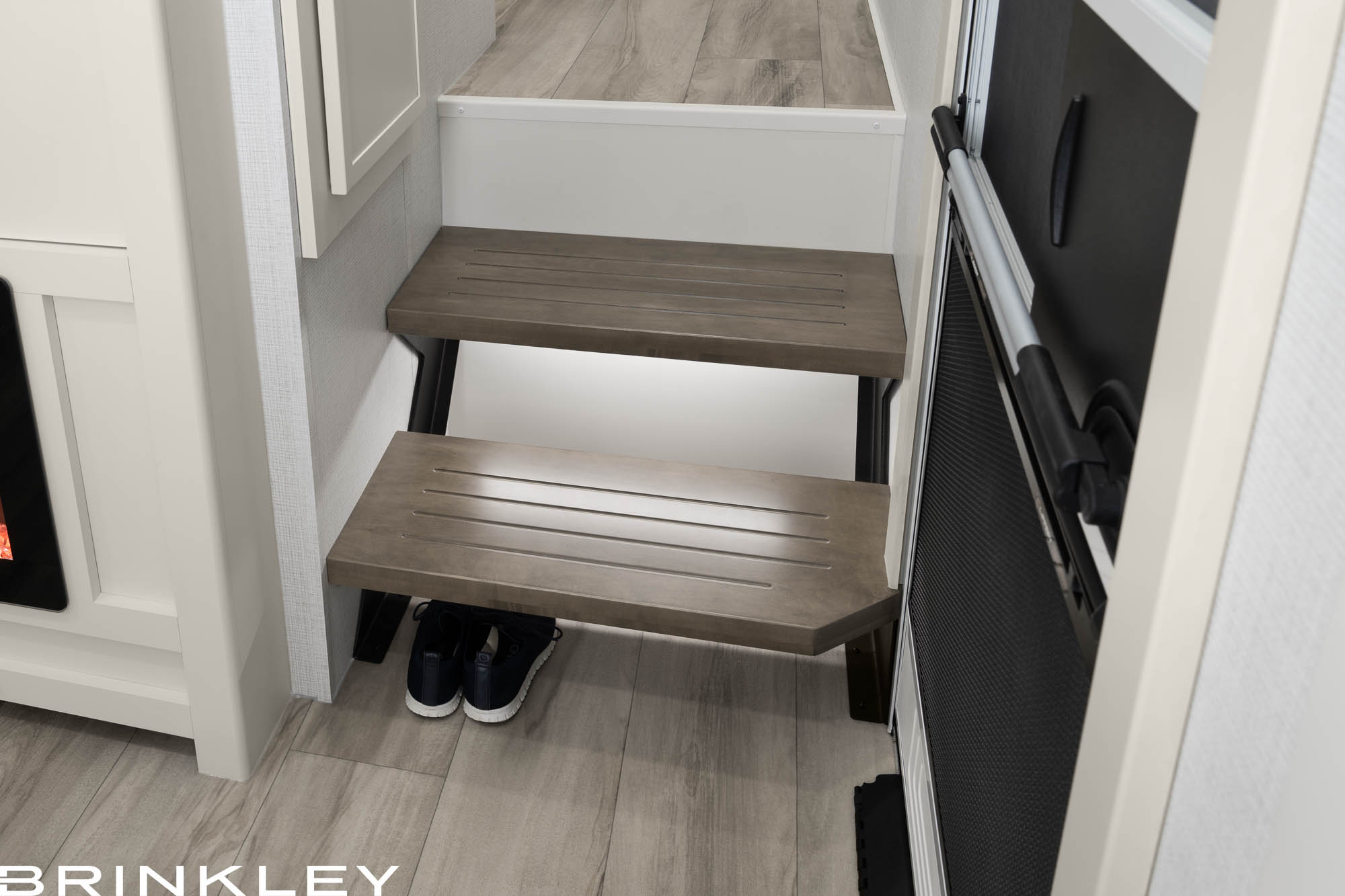

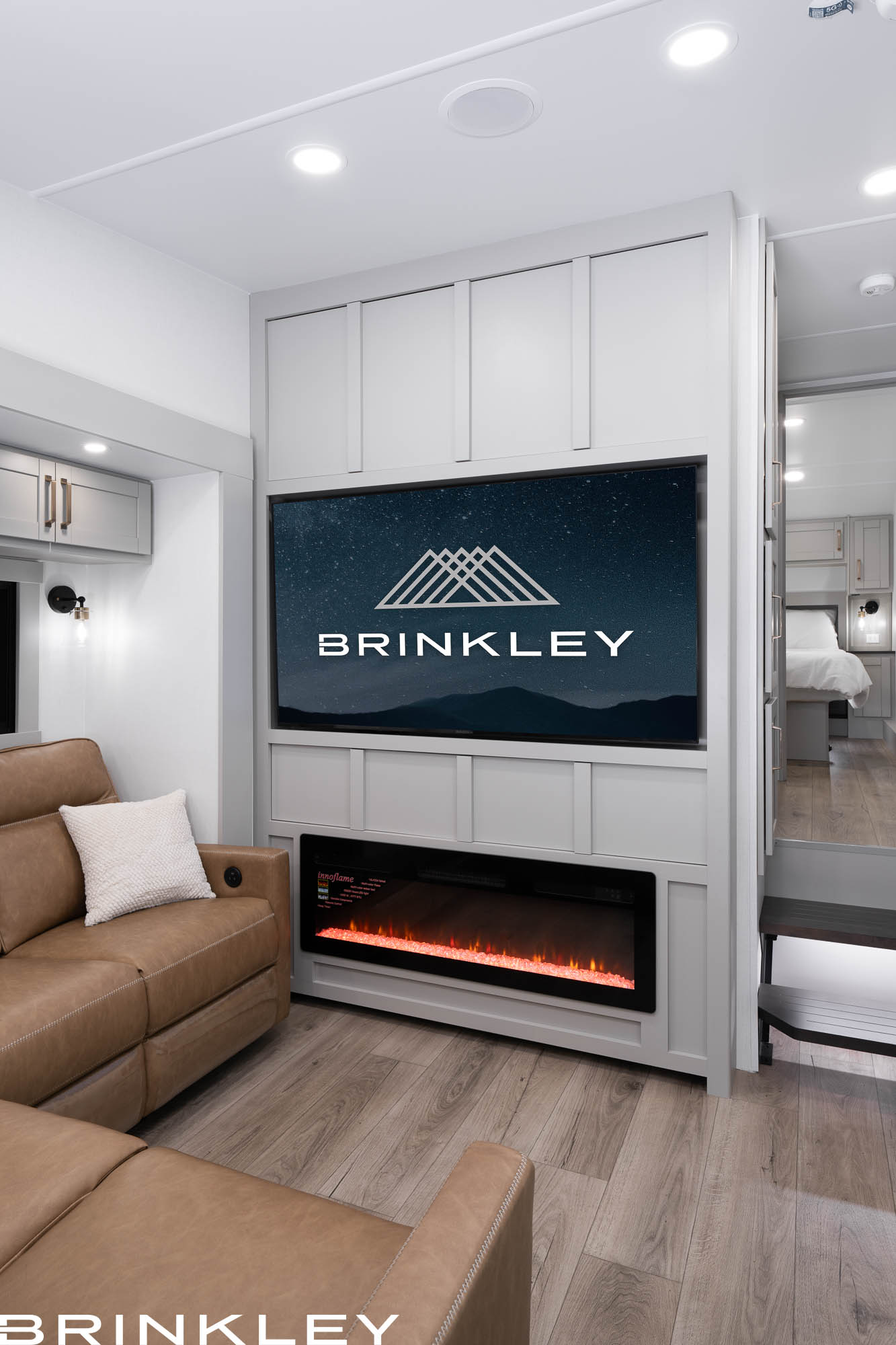

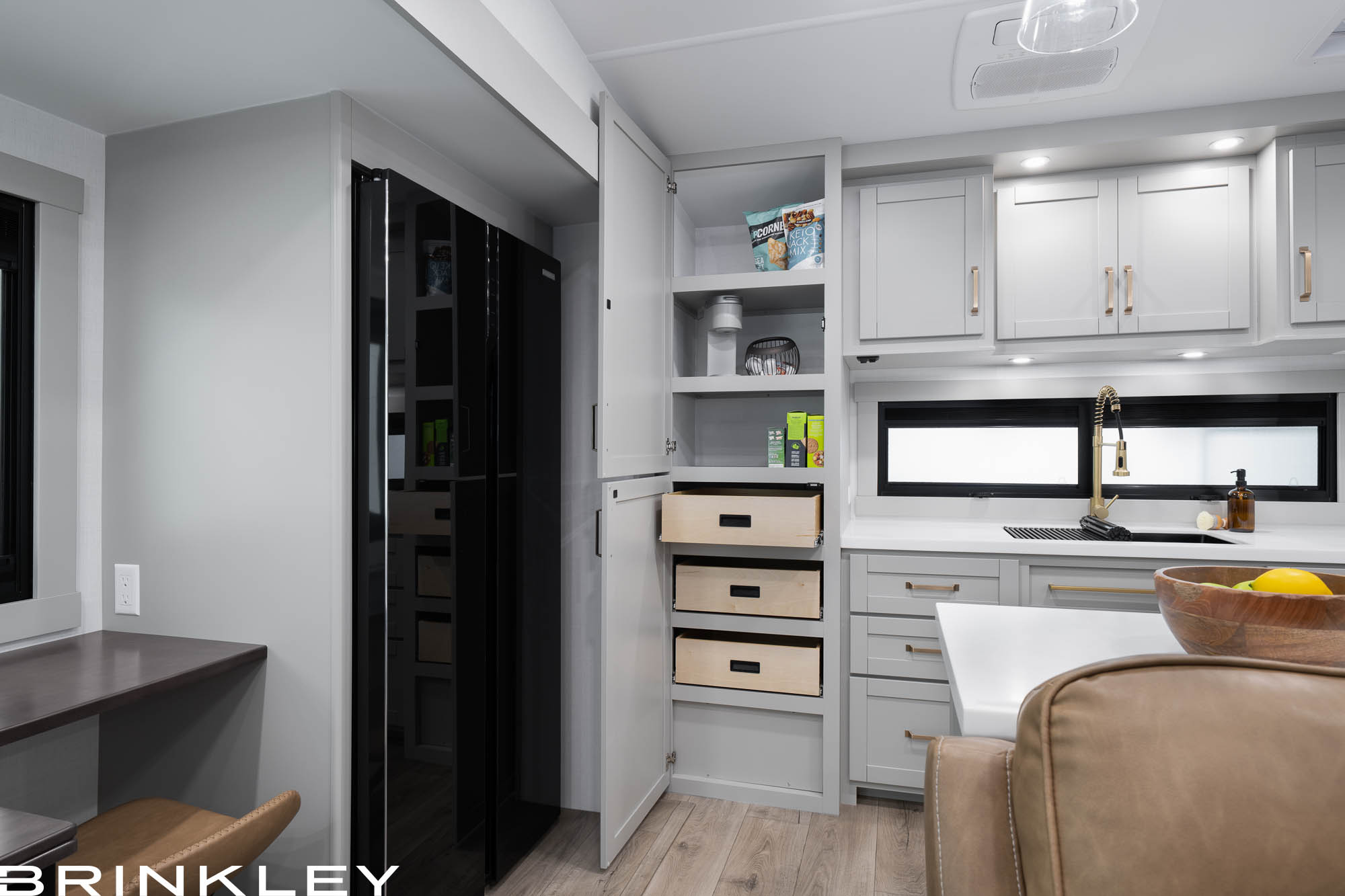

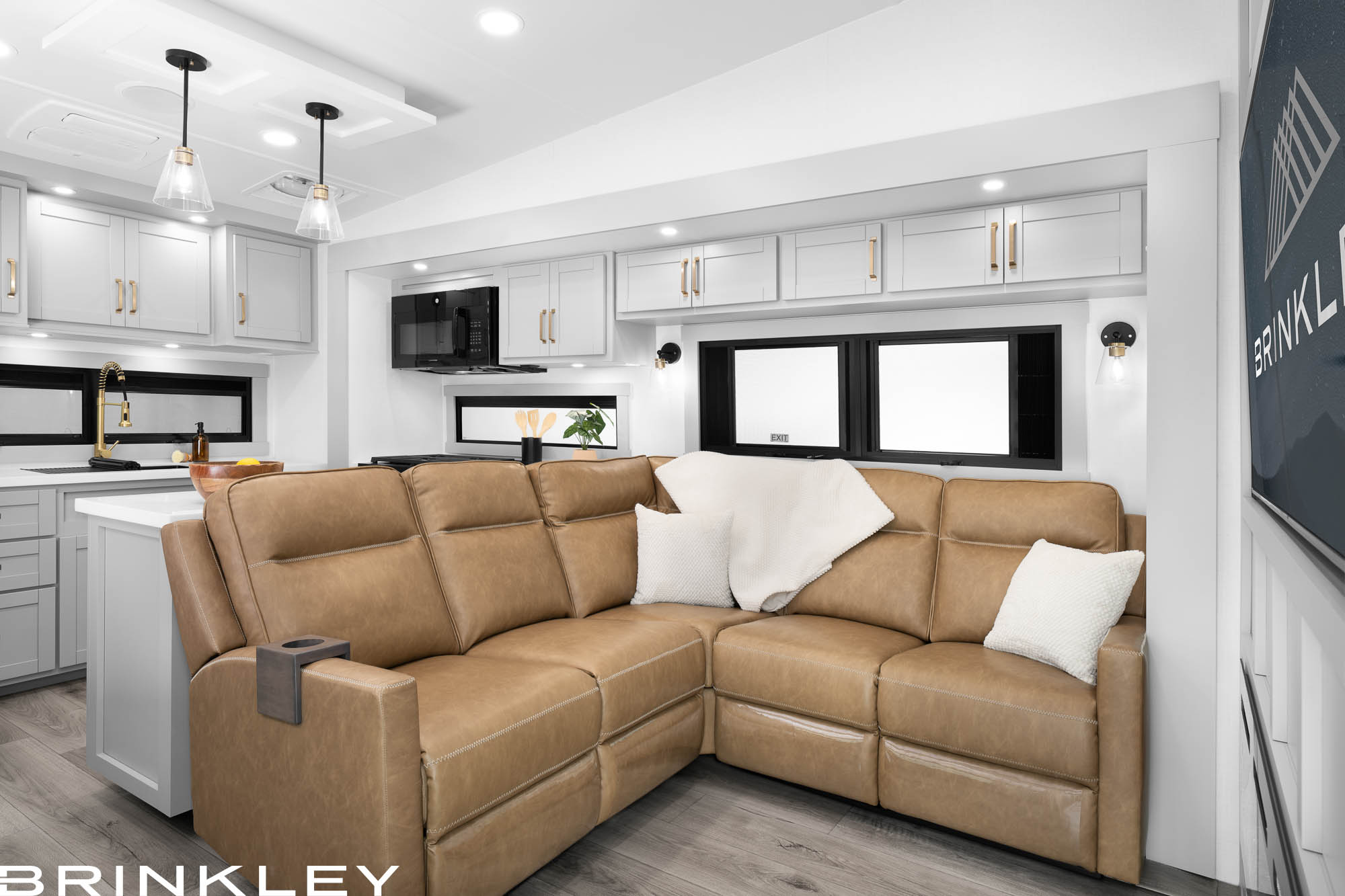

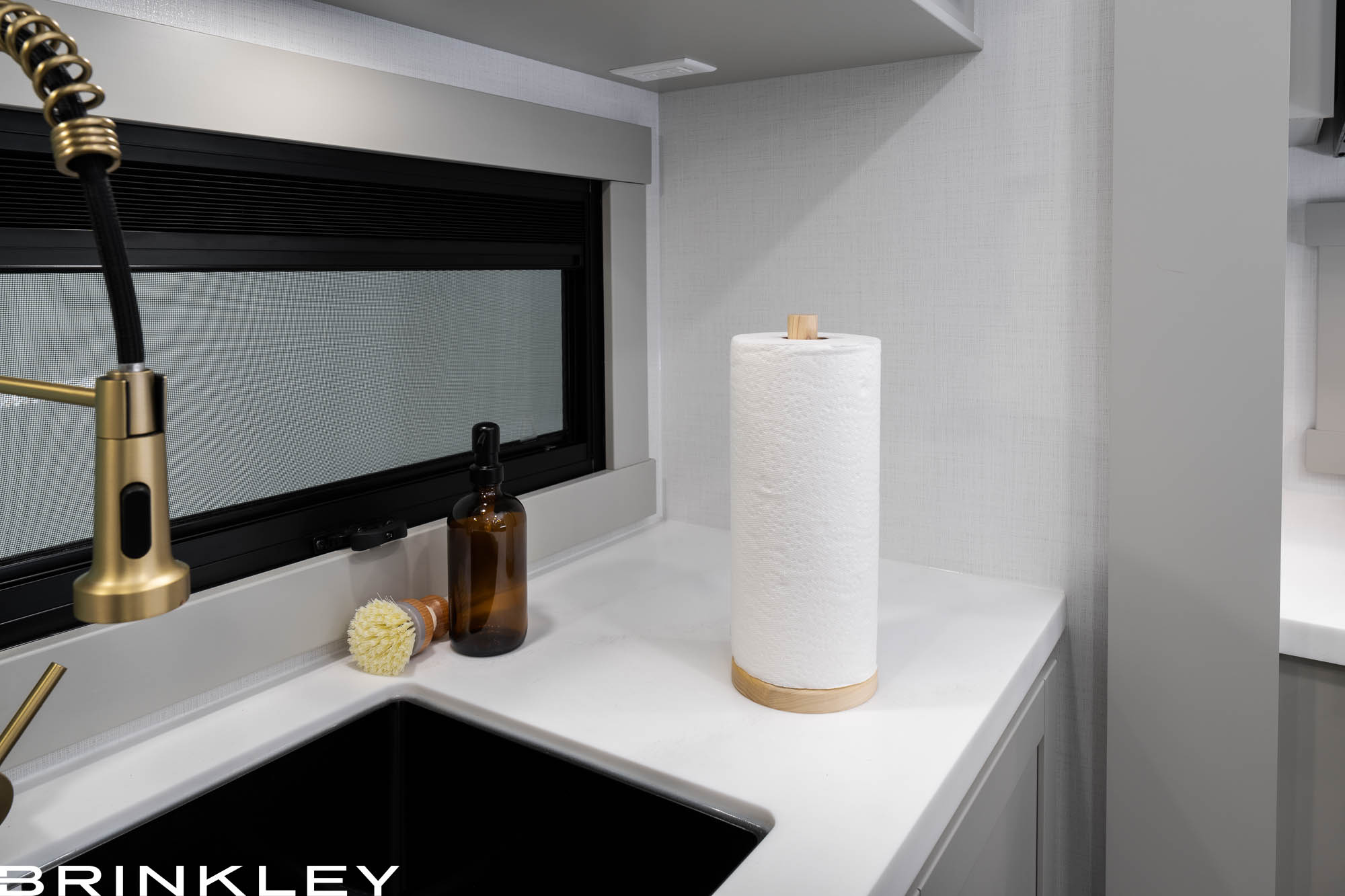

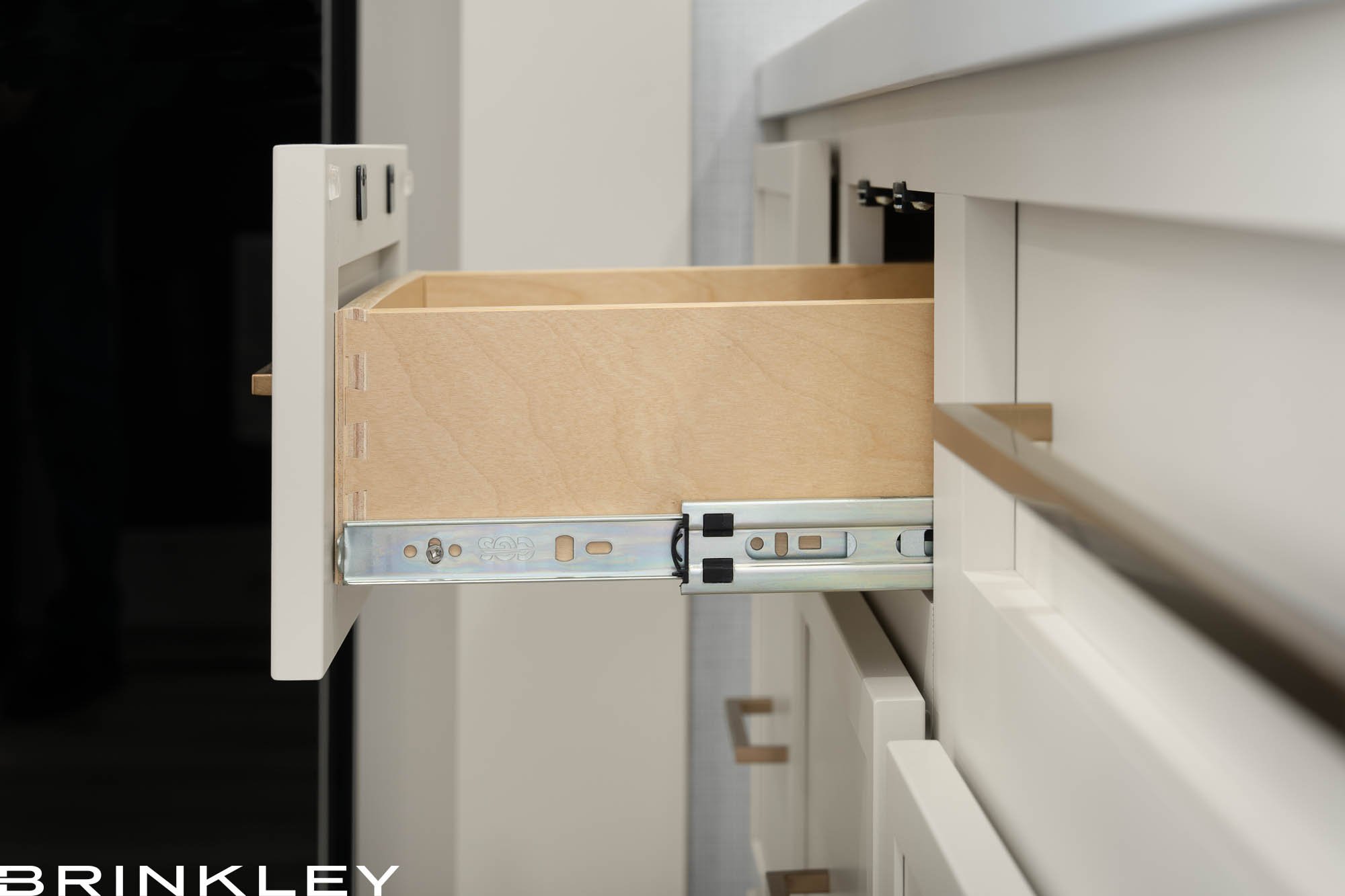

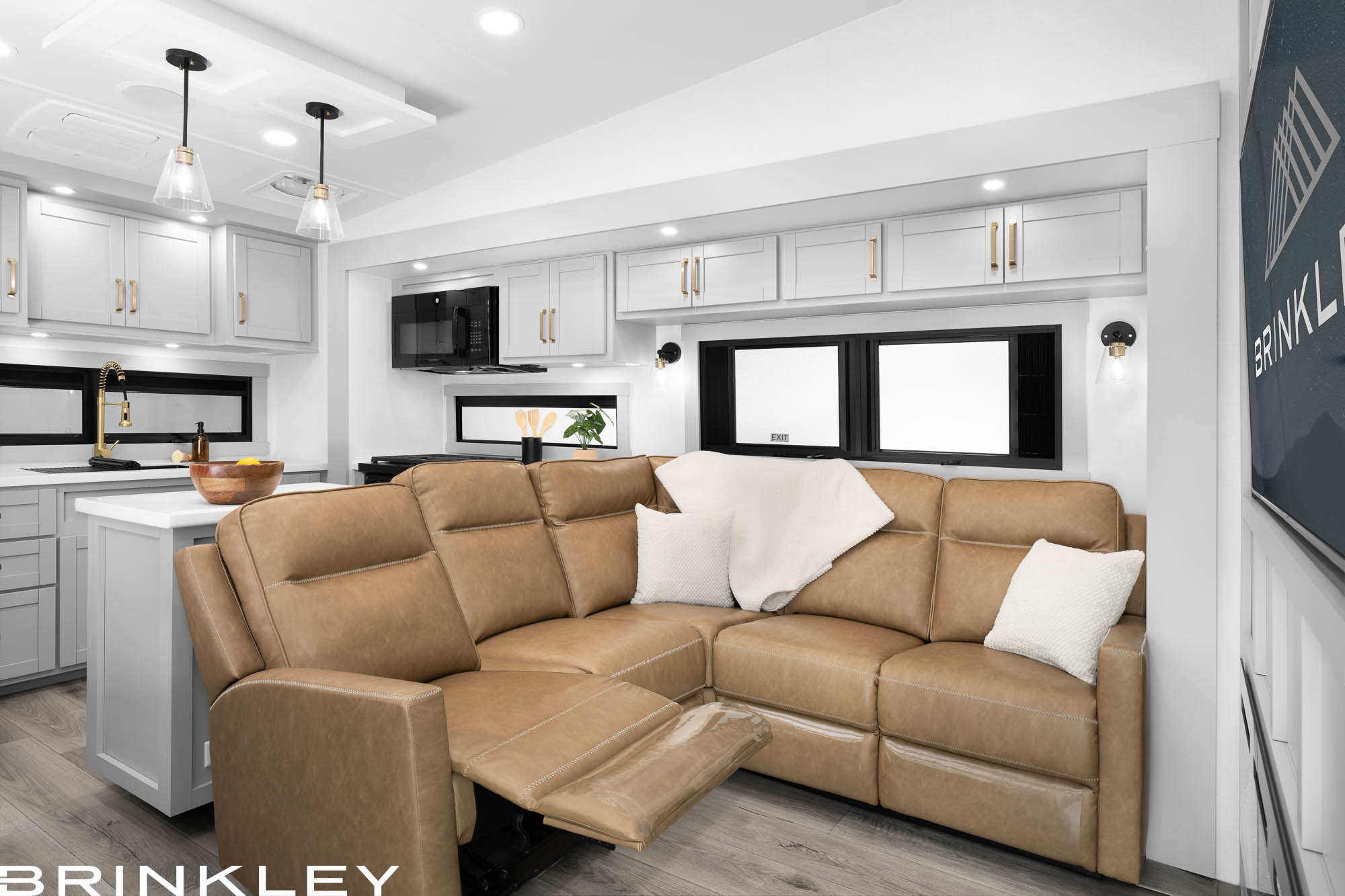

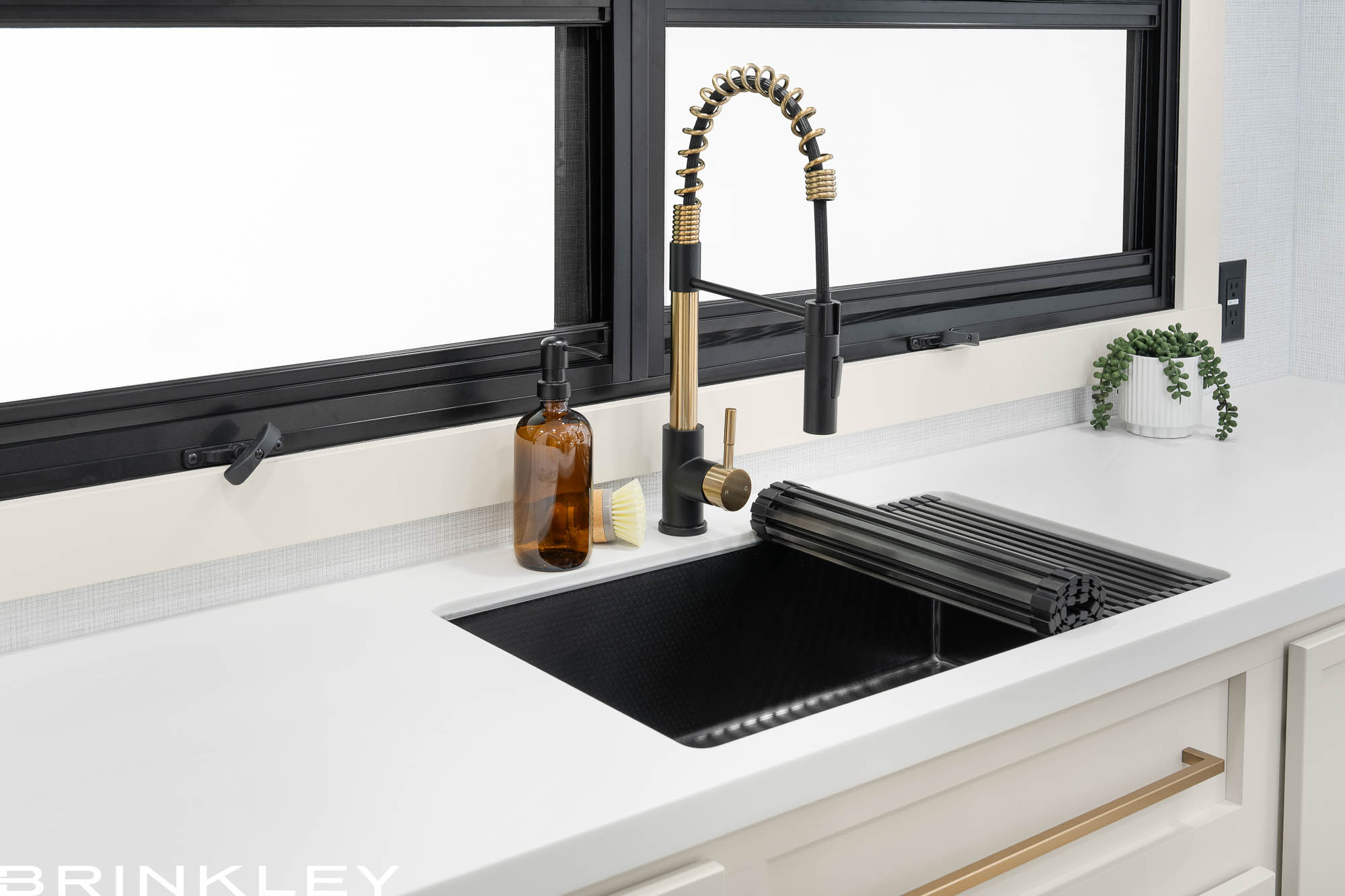

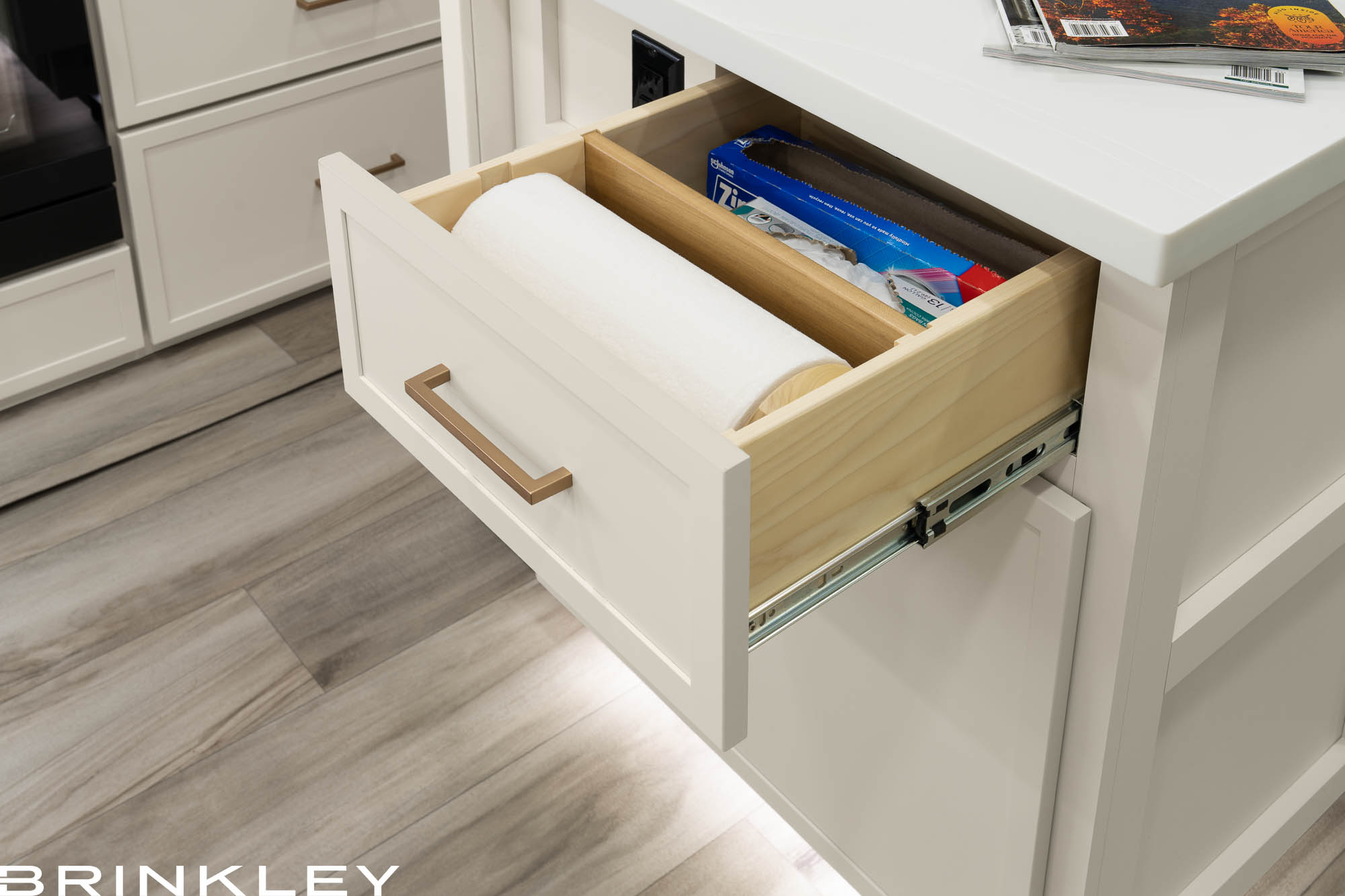

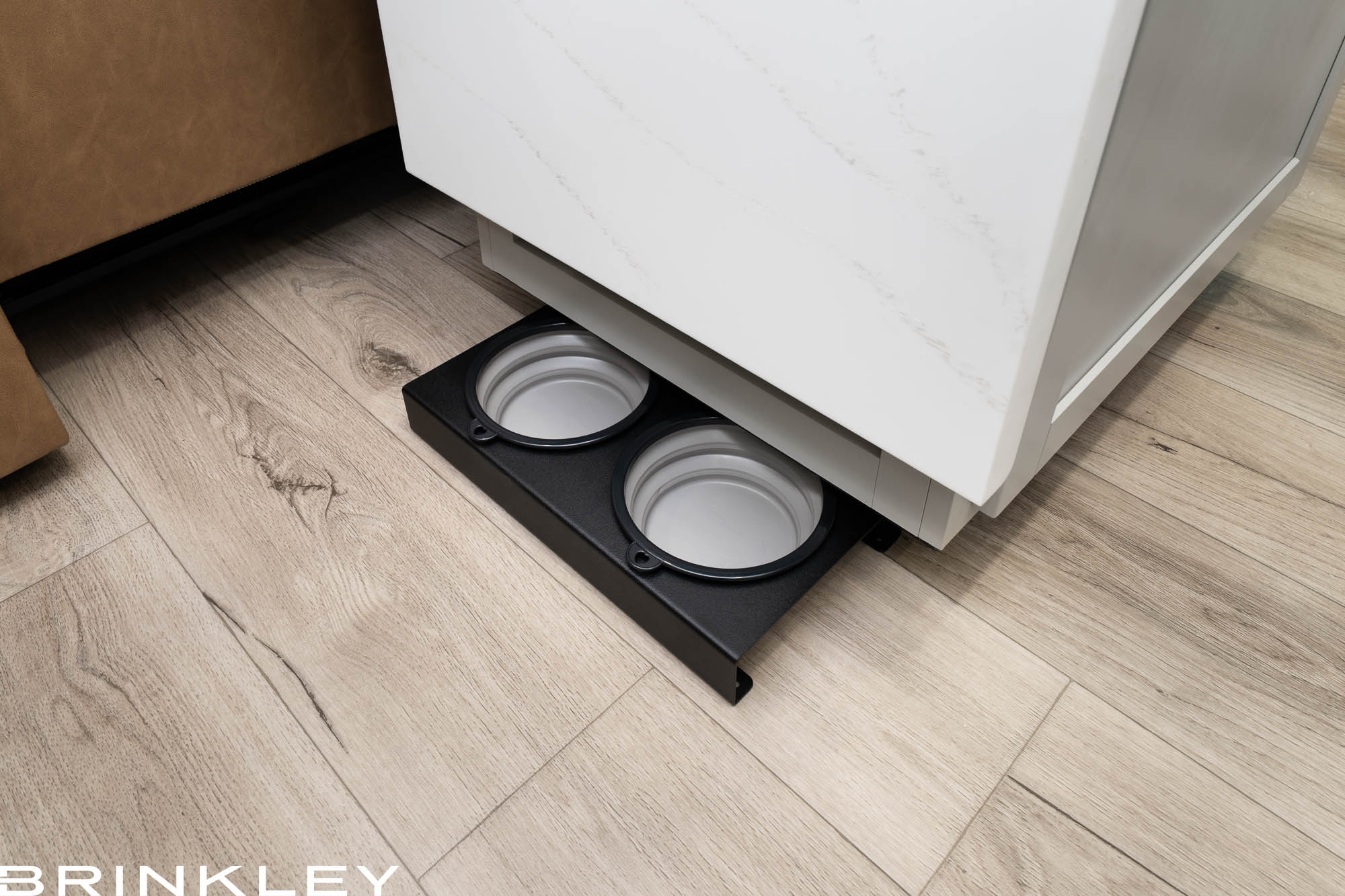

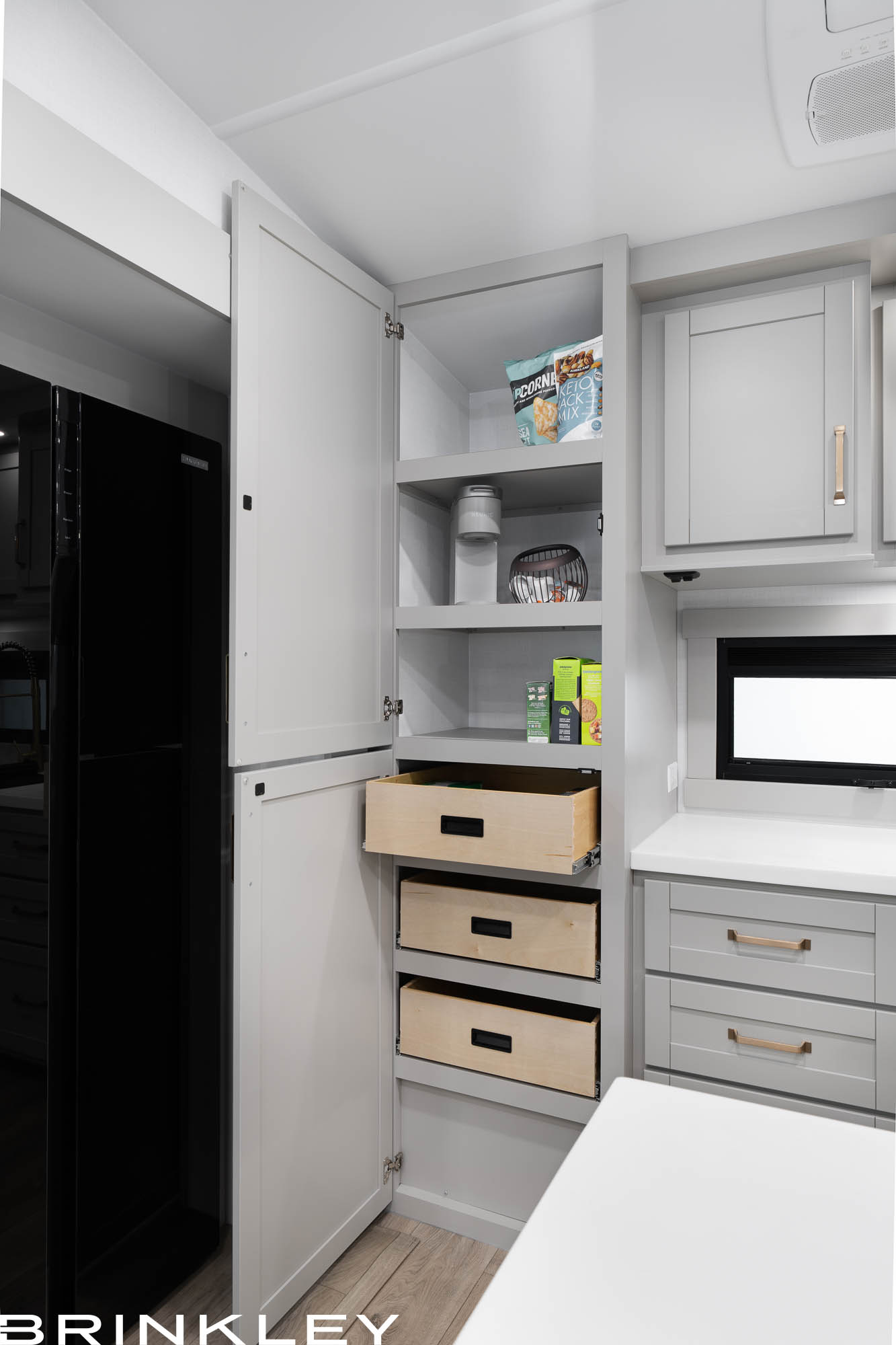

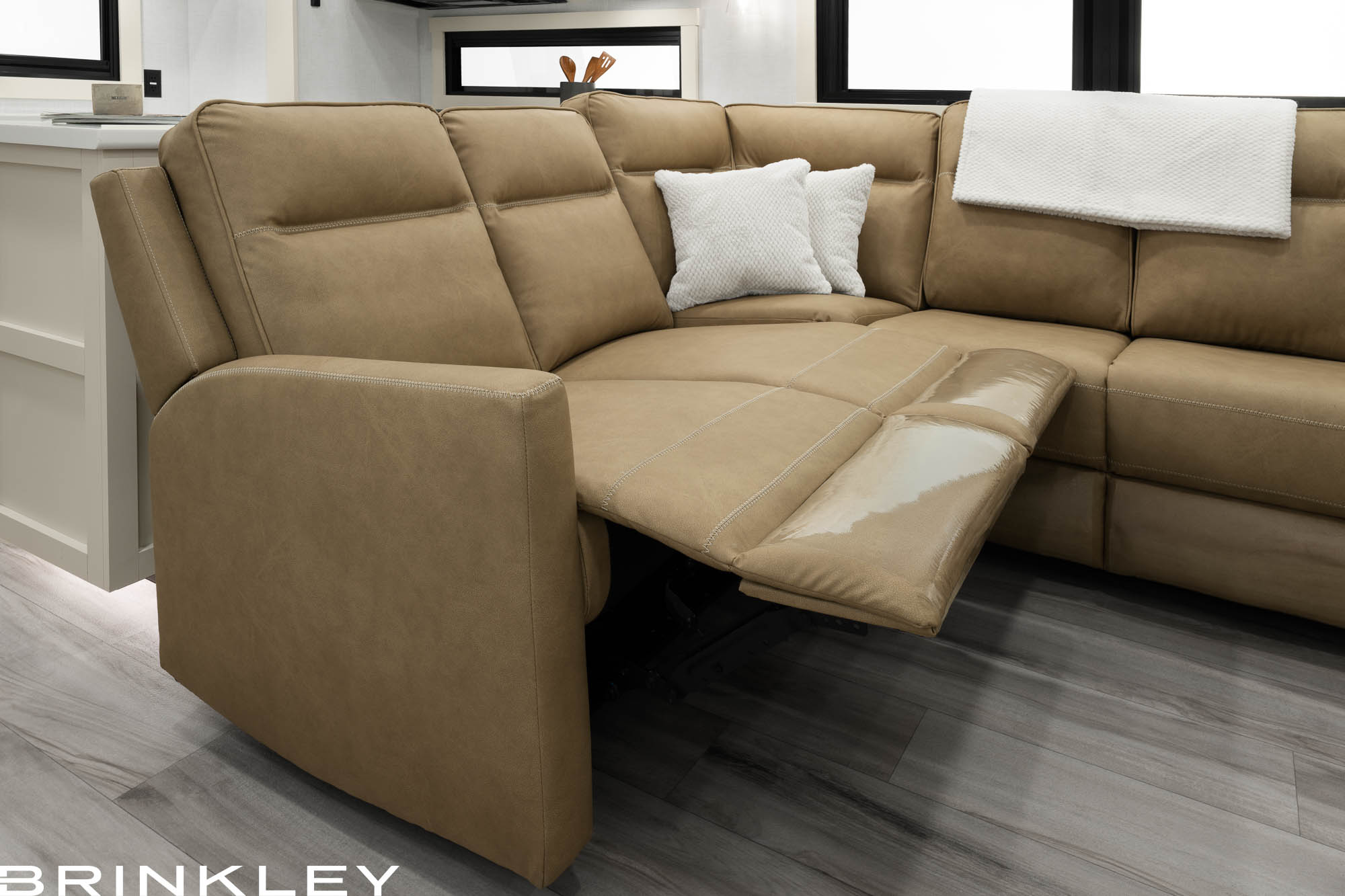

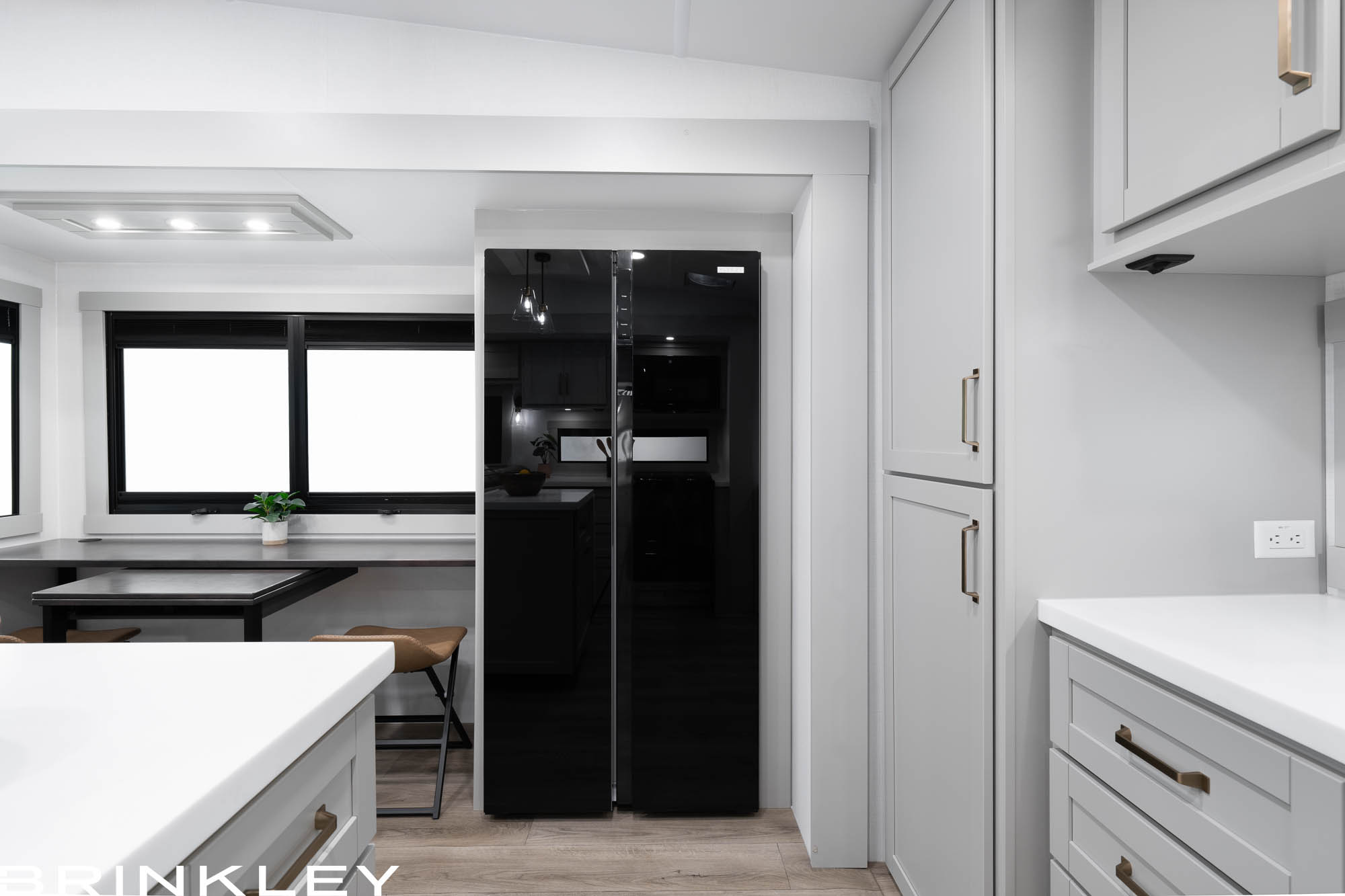

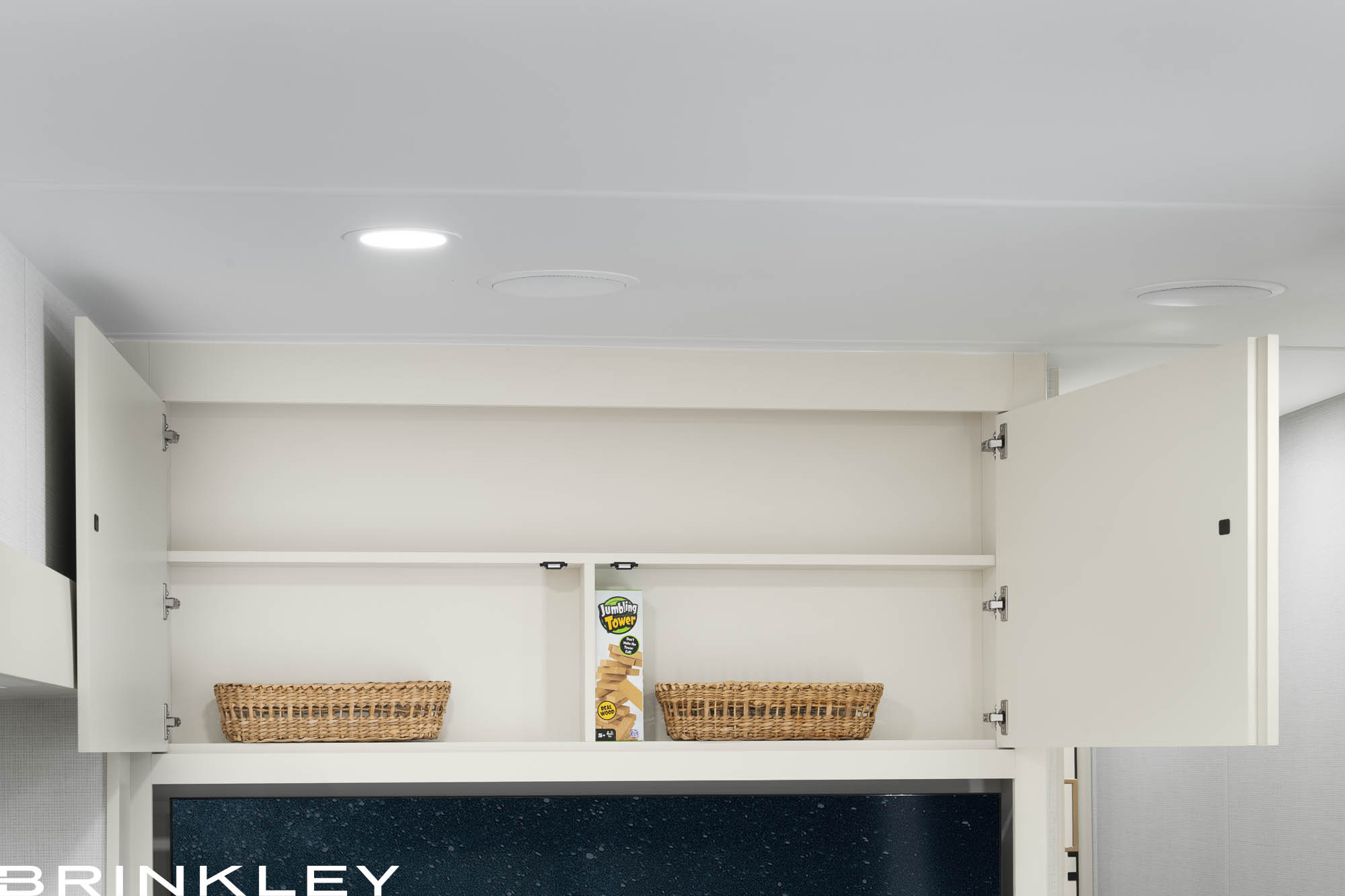

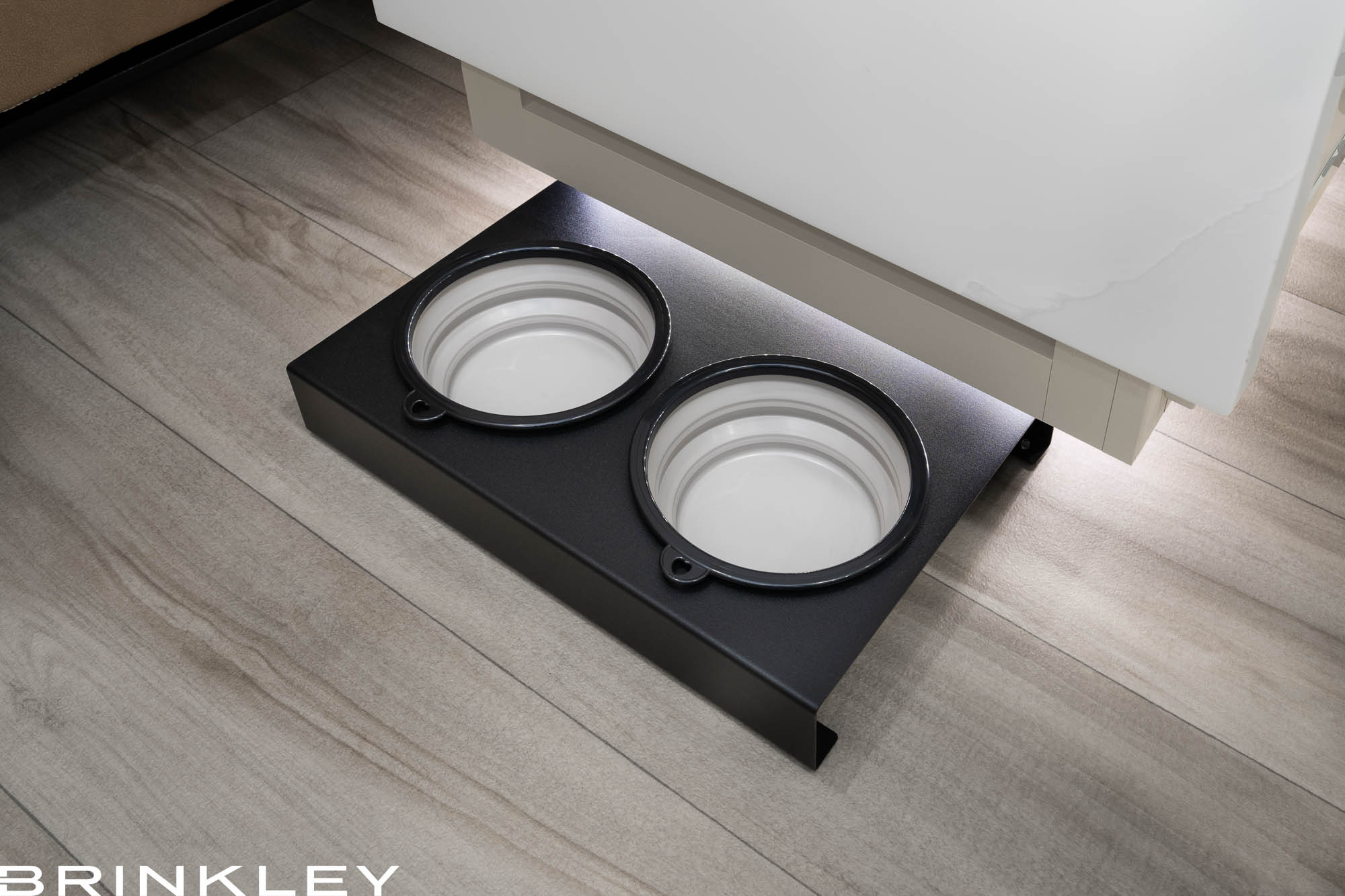

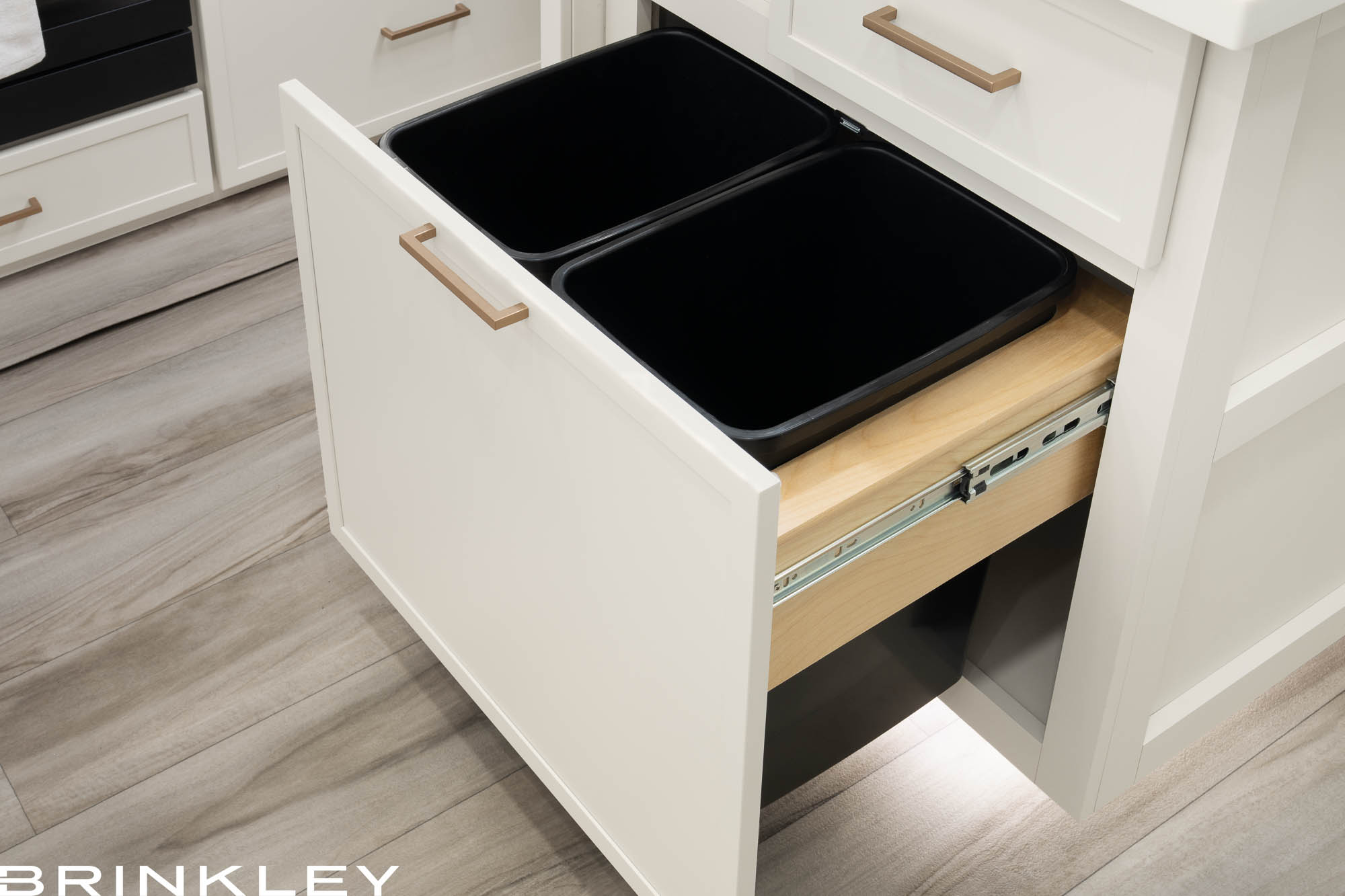

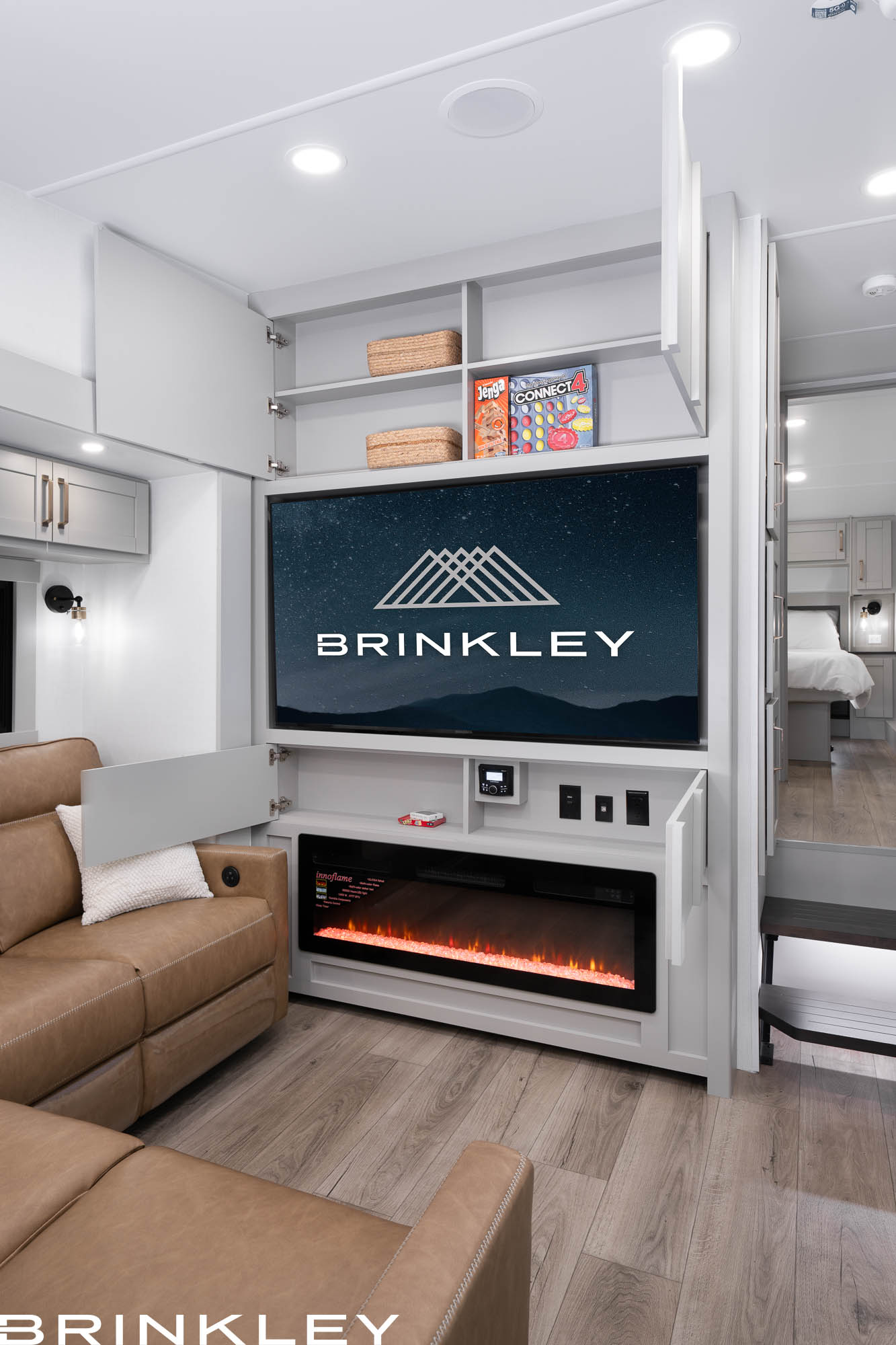

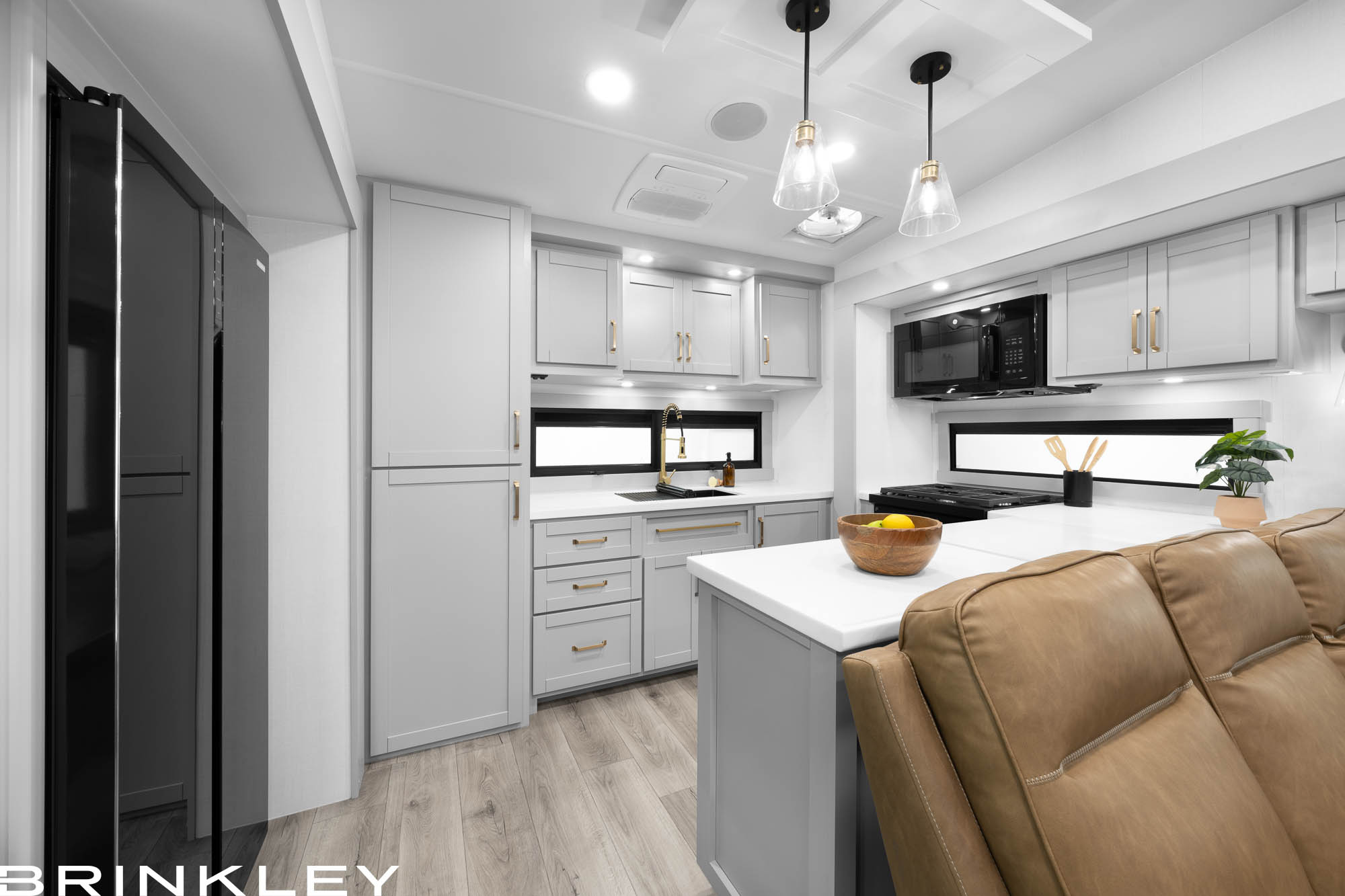

Z 2700 Interior

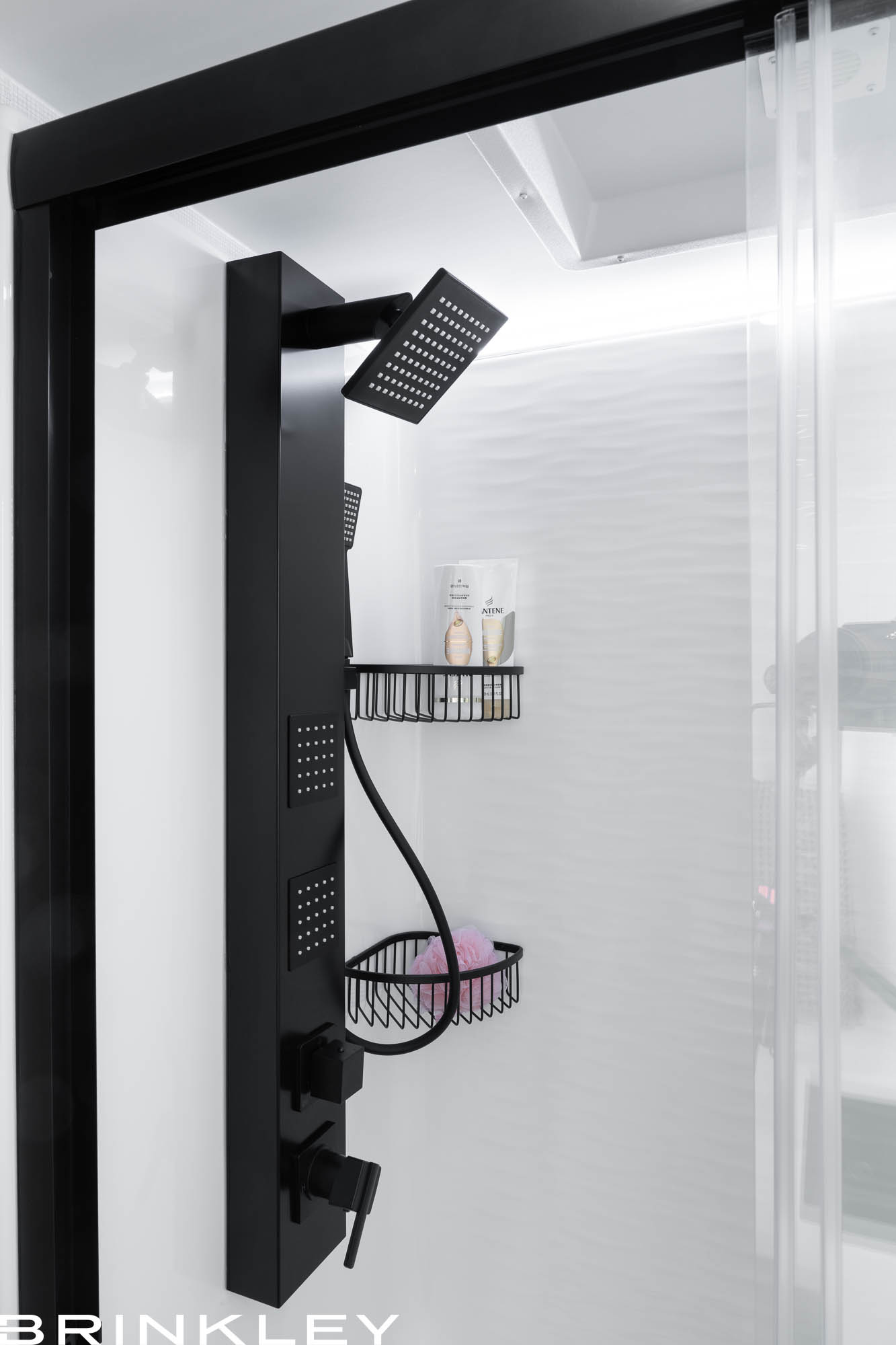

Z 2700 Bedroom & Bathroom

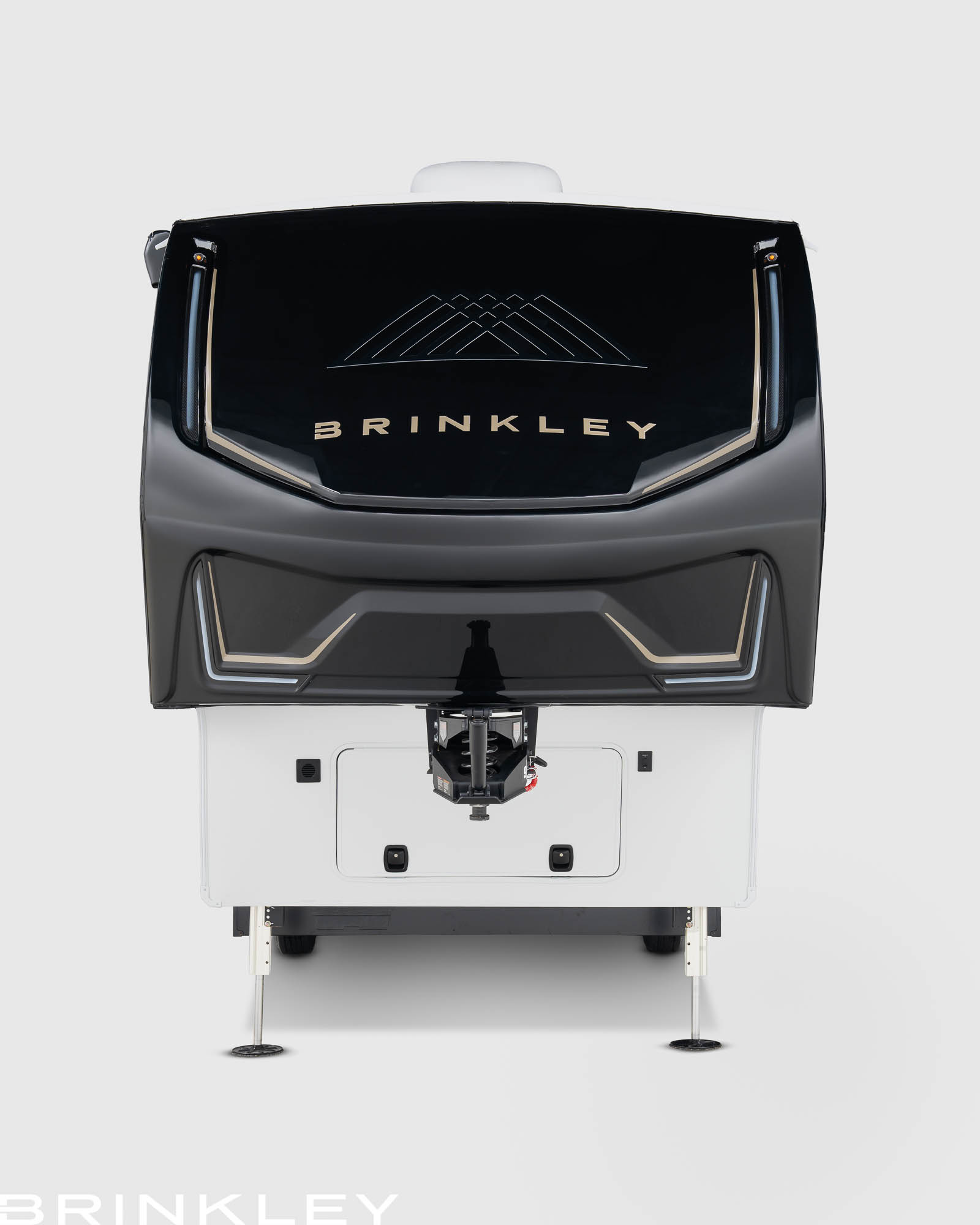

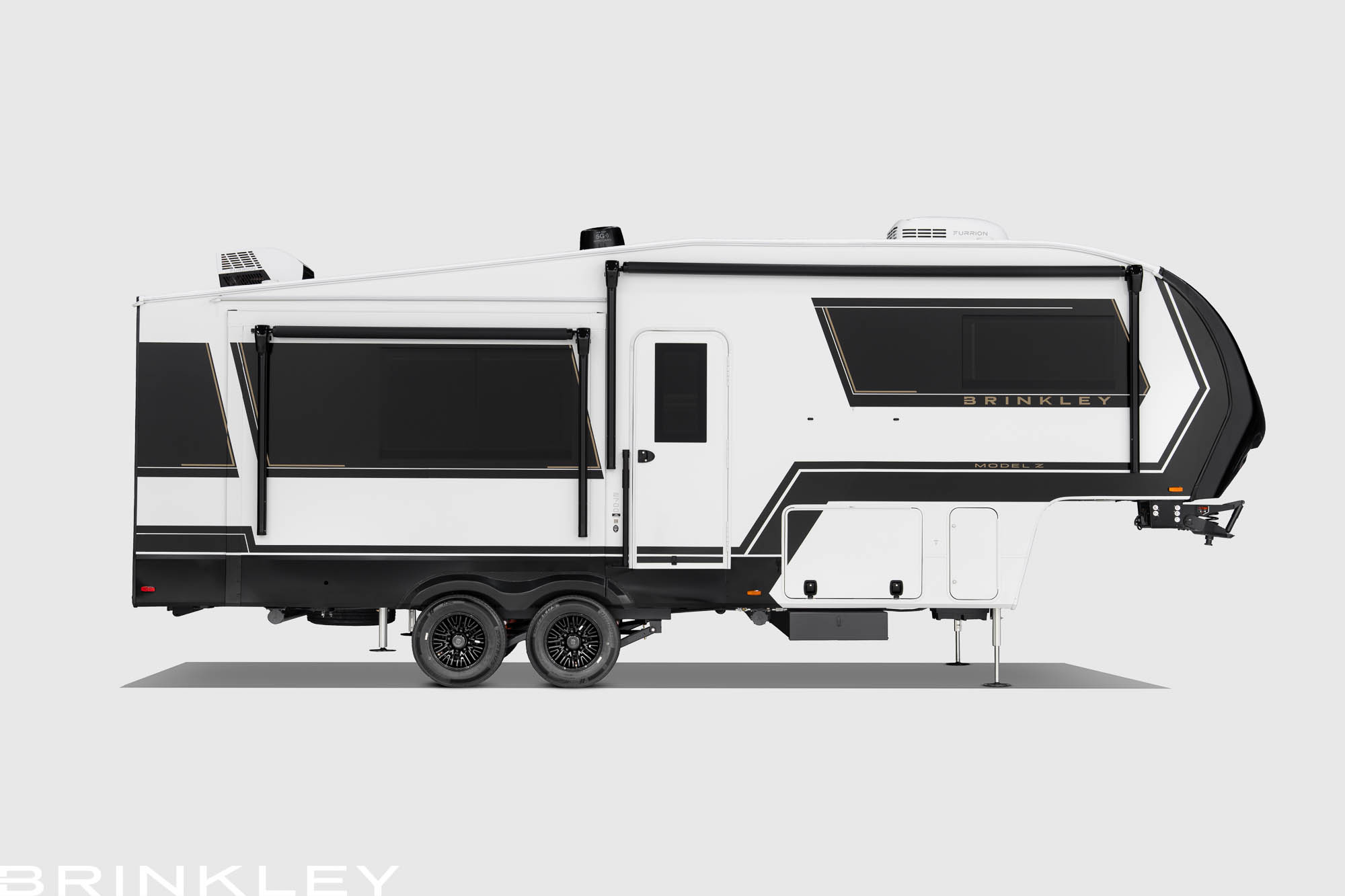

Z 2700 Exterior

Z 2700 FEATURES

Z 2700 STANDARDS & OPTIONS

Click on a category to expand.

  • Standard
  • Option
  • More Info
  • Hot Feature

Z 2700 SPECIFICATIONS

Weights, Dimensions, & Capacities

MODEL Z (FW)2700

WEIGHTS

2700

Title1
UVW (lbs.)11,5621
GVWR (lbs.)14,9951
Hitch (lbs.)2,0951

Empty1

AXLES & TIRES

2700

Title1
Axle Rating (lbs.)Tandem 7k1
Springs Rating (lbs.)7k1
Tire & Wheel Size215/75 R17.51
Tire Load RangeH1
Tire Ply161

Empty1

TANK CAPACITY

2700

Title1
Fresh Water (gal.)751
Gray Water (gal.)112 (82 True + 30)1
Black Water (gal.)451
LP (lbs.)60 (30+30) Up to 801

Empty1

EXTERIOR

2700

Title2
Length29' 11"2
Height13′ 2″2
Width96″2
Cargo Storage (cu.ft.)110+2

Empty2

INTERIOR HEIGHT

2700

Title2
Bath Ceilings79.5"2
Bedroom Ceilings79.5"2
Bed Sliden/a2
Main Slide(s)76″2

Empty2

INSULATION

2700

Title2
Floor R-ValueR402
Ceiling R-ValueR402
Walls R-ValueR112

Empty2
MODEL Z (FW)2700

WEIGHTS

2700

Title1
UVW (lbs.)11,5621
GVWR (lbs.)14,9951
Hitch (lbs.)2,0951

Empty1

AXLES & TIRES

2700

Title1
Axle Rating (lbs.)Tandem 7k1
Springs Rating (lbs.)7k1
Tire & Wheel Size215/75 R17.51
Tire Load RangeH1
Tire Ply161

Empty1

TANK CAPACITY

2700

Title1
Fresh Water (gal.)751
Gray Water (gal.)112 (82 True + 30)1
Black Water (gal.)451
LP (lbs.)60 (30+30) Up to 801

Empty1

EXTERIOR

2700

Title2
Length29' 11"2
Height13′ 2″2
Width96″2
Cargo Storage (cu.ft.)110+2

Empty2

INTERIOR HEIGHT

2700

Title2
Bath Ceilings79.5"2
Bedroom Ceilings79.5"2
Bed Sliden/a2
Main Slide(s)76″2

Empty2

INSULATION

2700

Title2
Floor R-ValueR402
Ceiling R-ValueR402
Walls R-ValueR112

Empty2

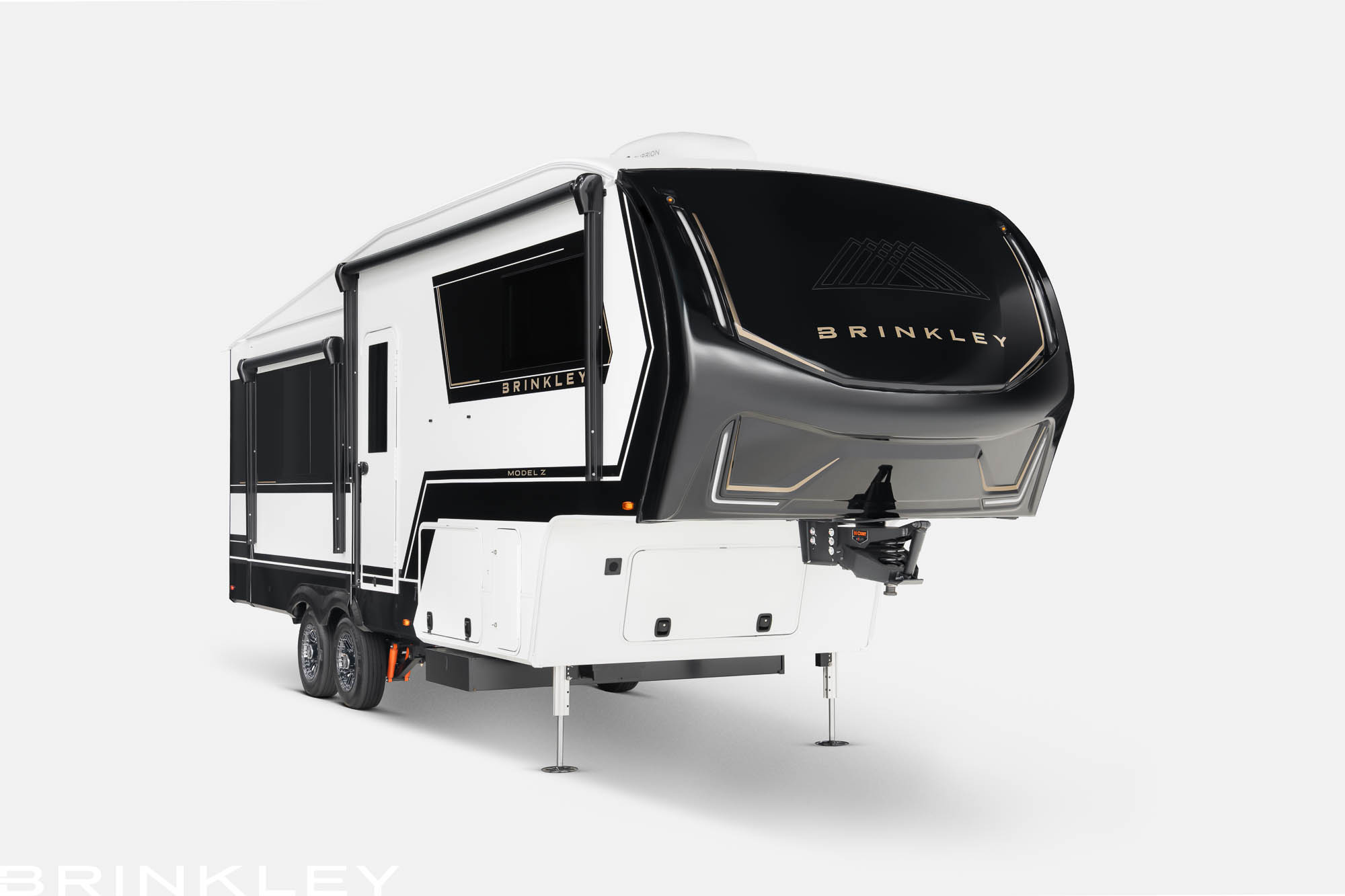

Model Z 2700 Fifth Wheels by Brinkley RV

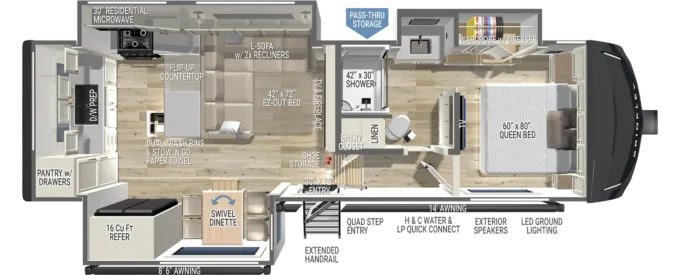

Model Z 2700 Fifth Wheel Floorplan Brinkley RV

Brinkley Model Z 2700 is a mid‑size luxury fifth wheel that pairs an automotive exterior with a residential interior. Thoughtful layout, generous storage, and comfortable living make it ideal for families and extended adventures.

Product SKU: BRINKLEY-MODEL-Z-2700

Product Brand: Brinkley RV

Product Currency: USD

Product Price: 121098.00

Price Valid Until: 2028-12-31

Product In-Stock: InStock
