Model Z 3300
Sorry, this floorplan has been retired. Explore other Model Z floorplans
MODEL Z 3300

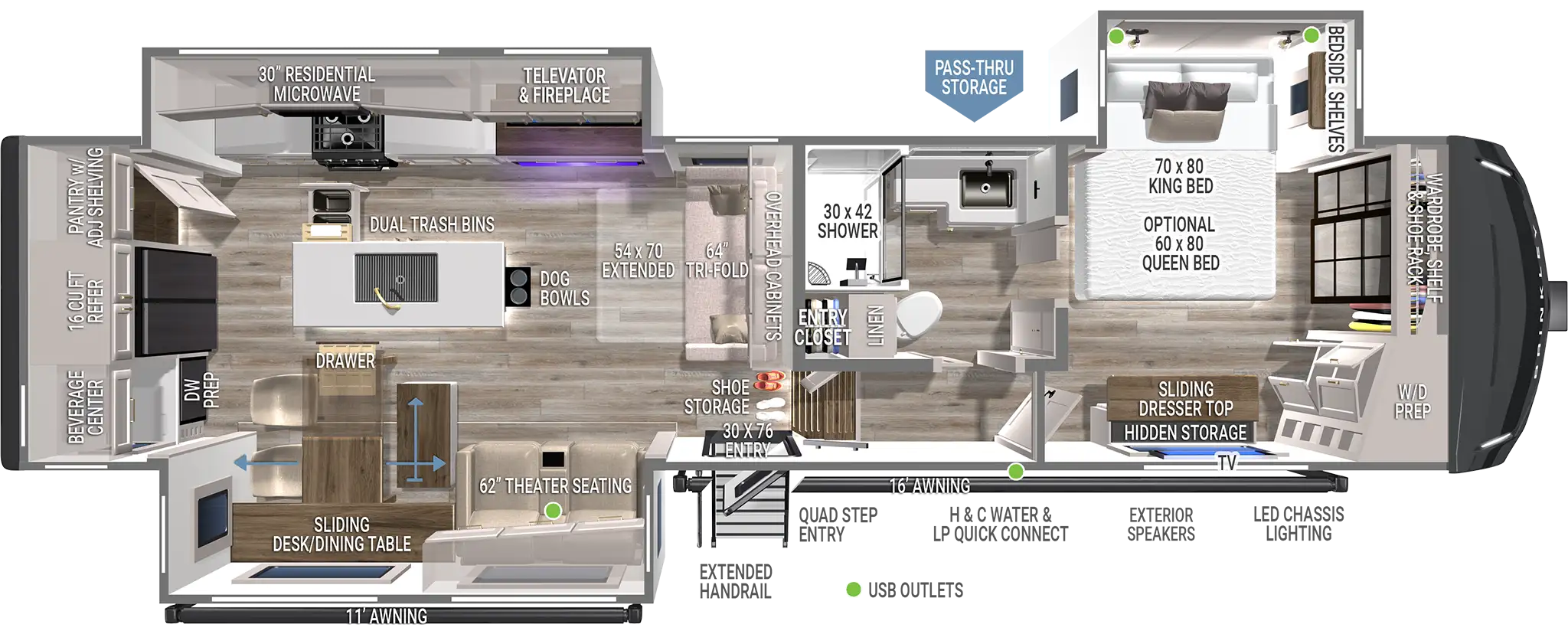

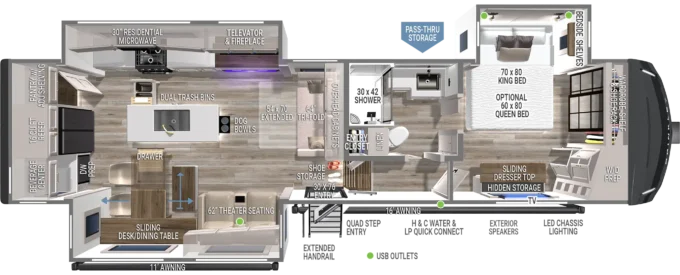

36′ 7″ Rear Kitchen, beverage center, walkthrough bath
Length
36′ 7″
Height
13′ 4″
UVW Weight
13,127 lbs.
Hitch Weight
2,286 lbs.
GVWR Weight
16,995 lbs.
VIRTUAL TOUR
GALLERY

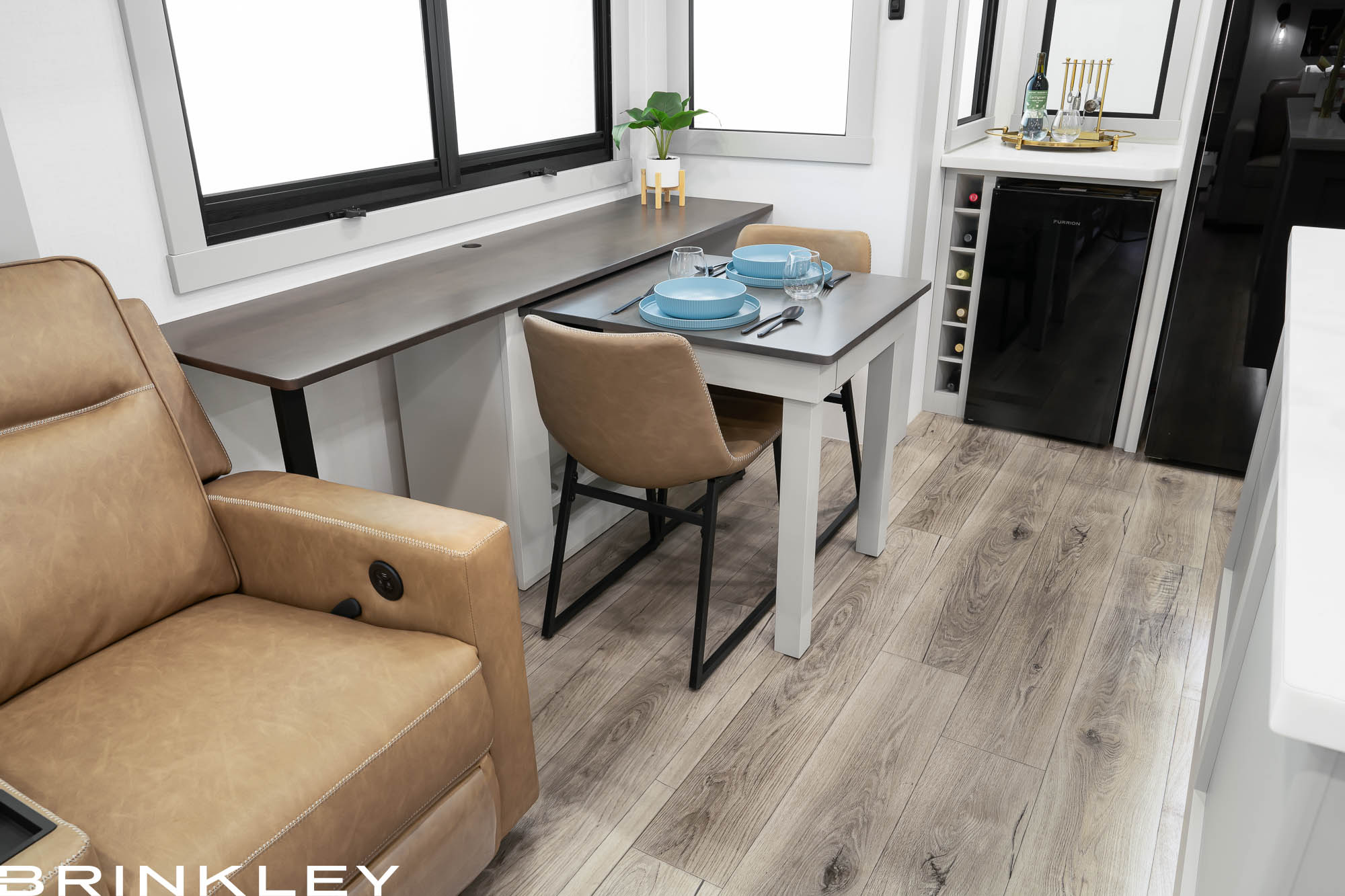

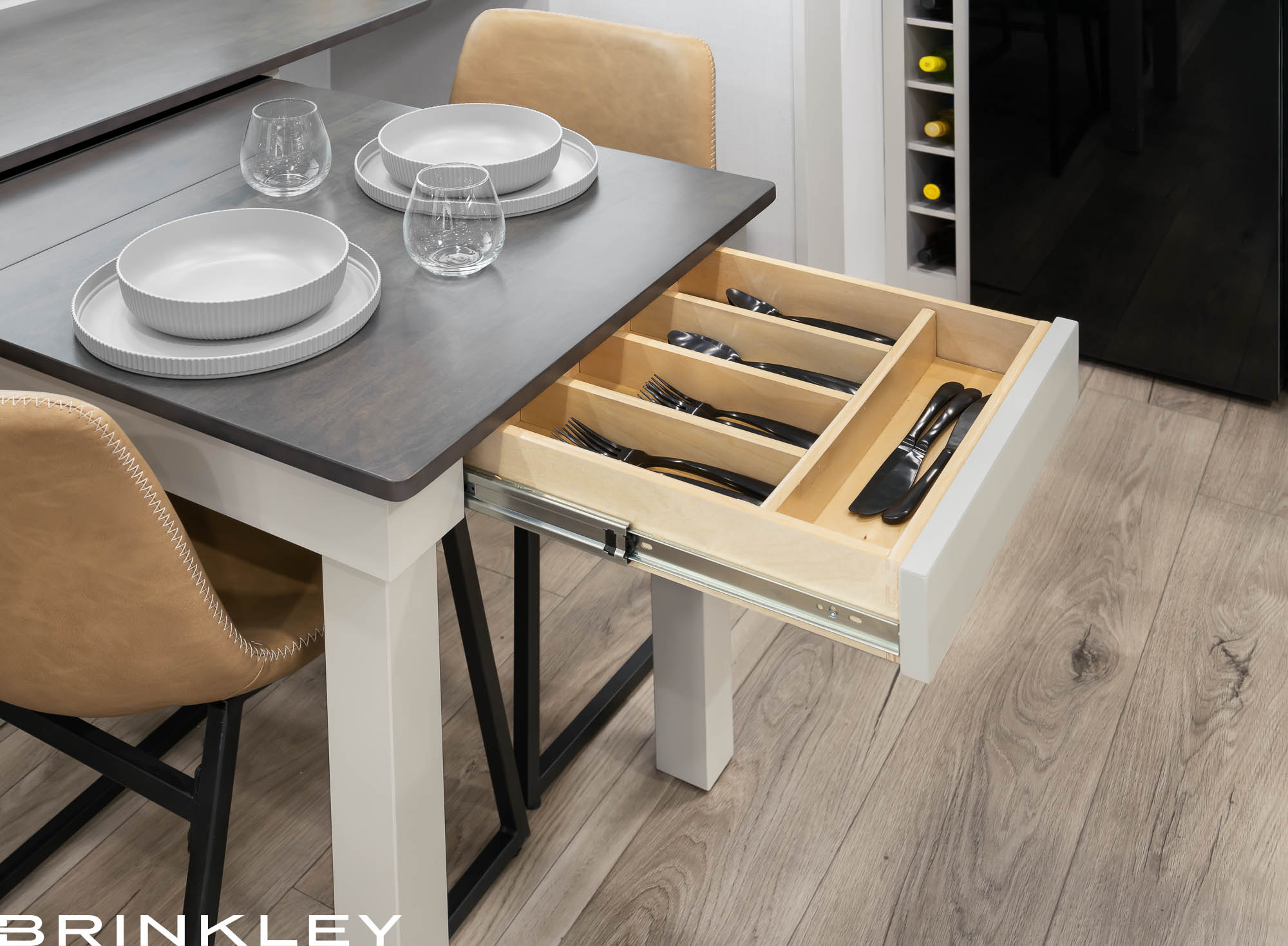

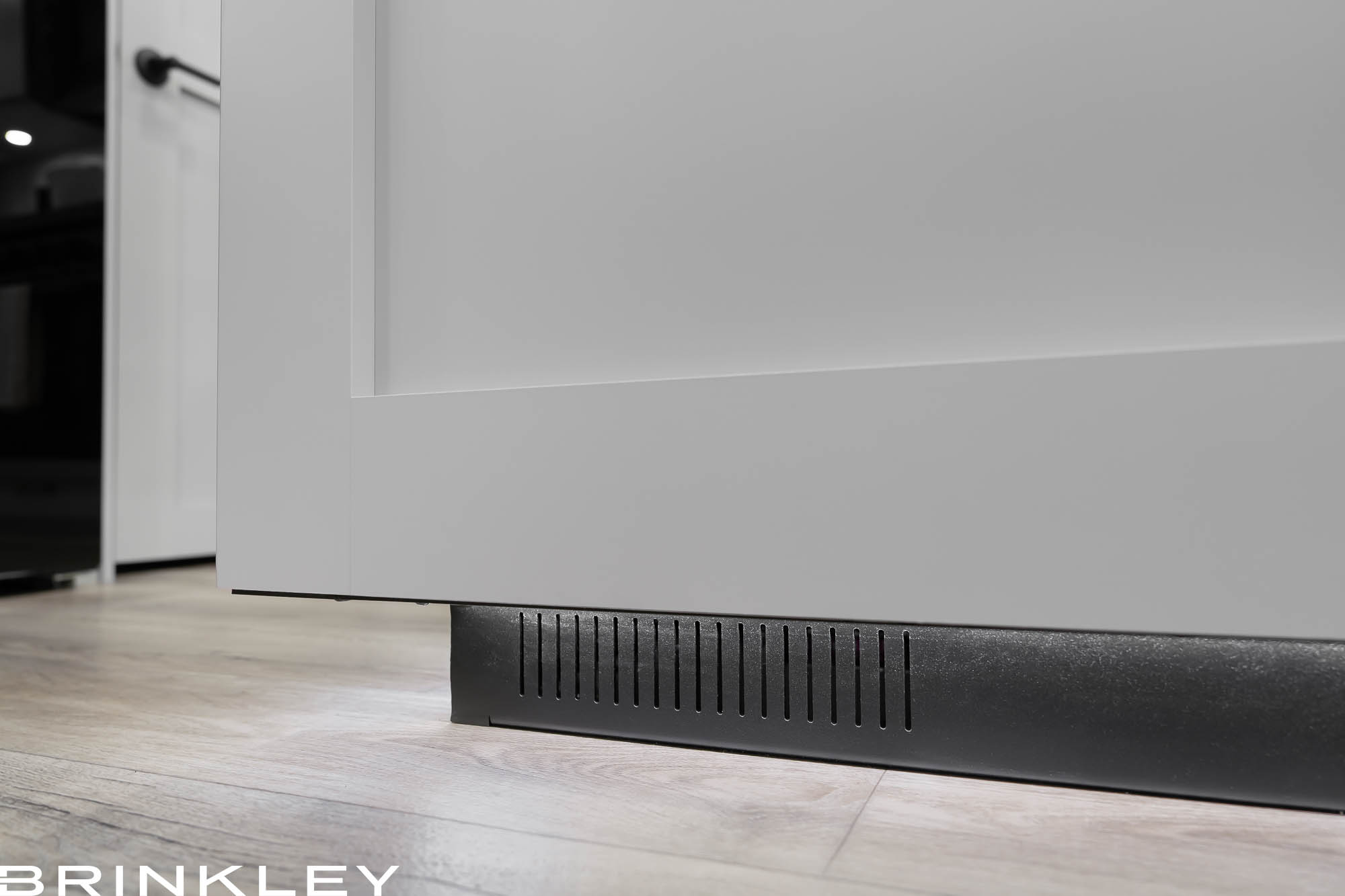

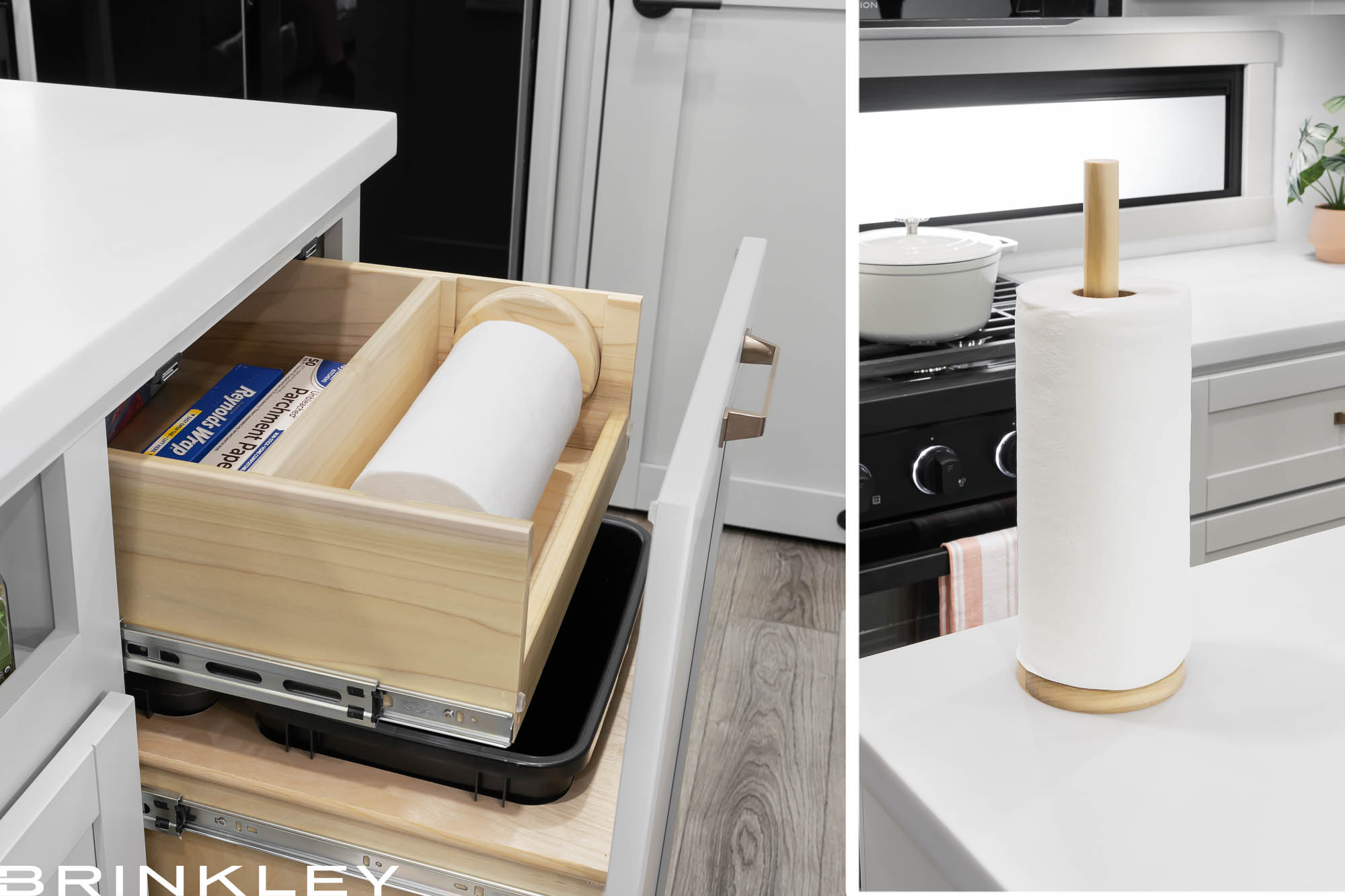

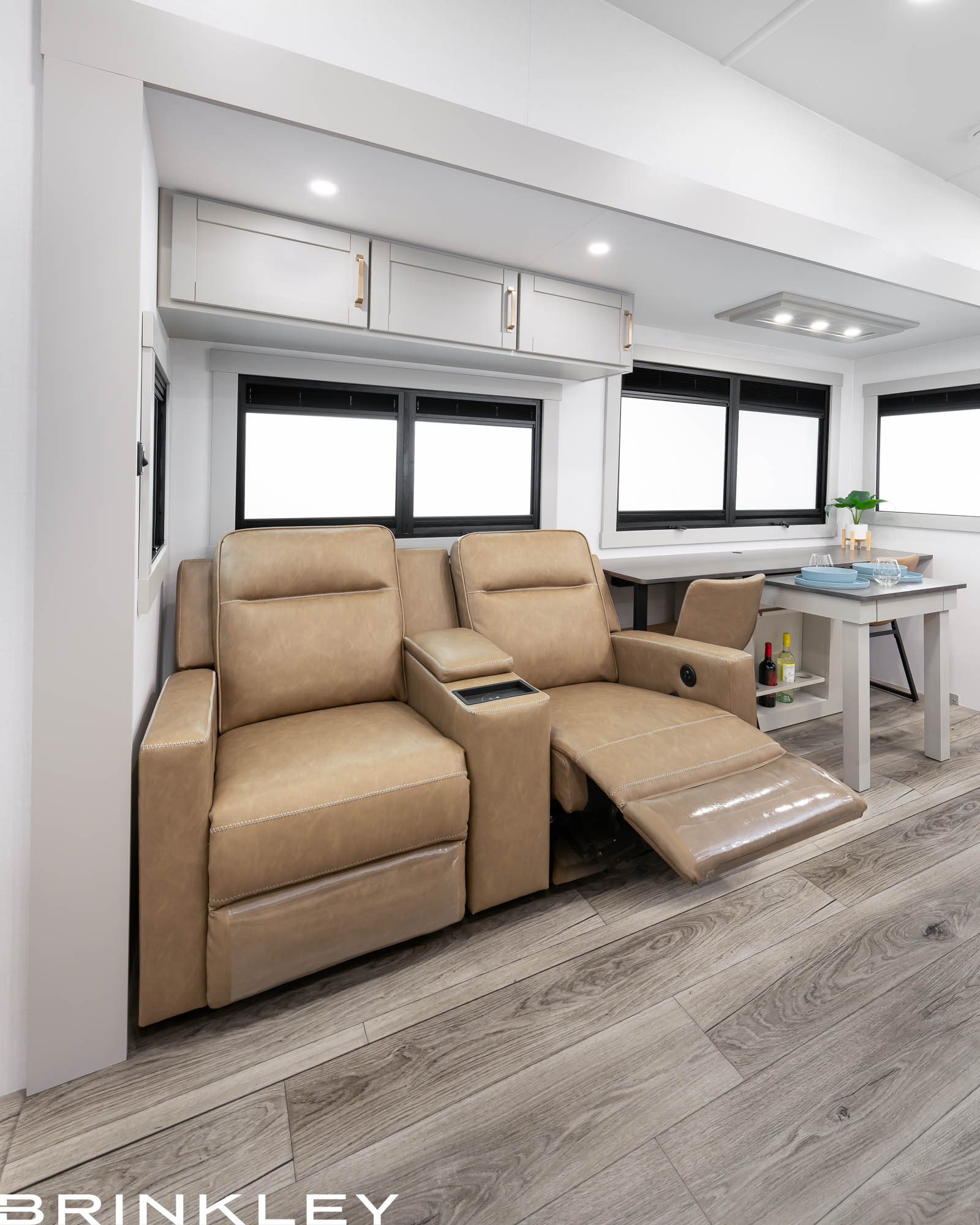

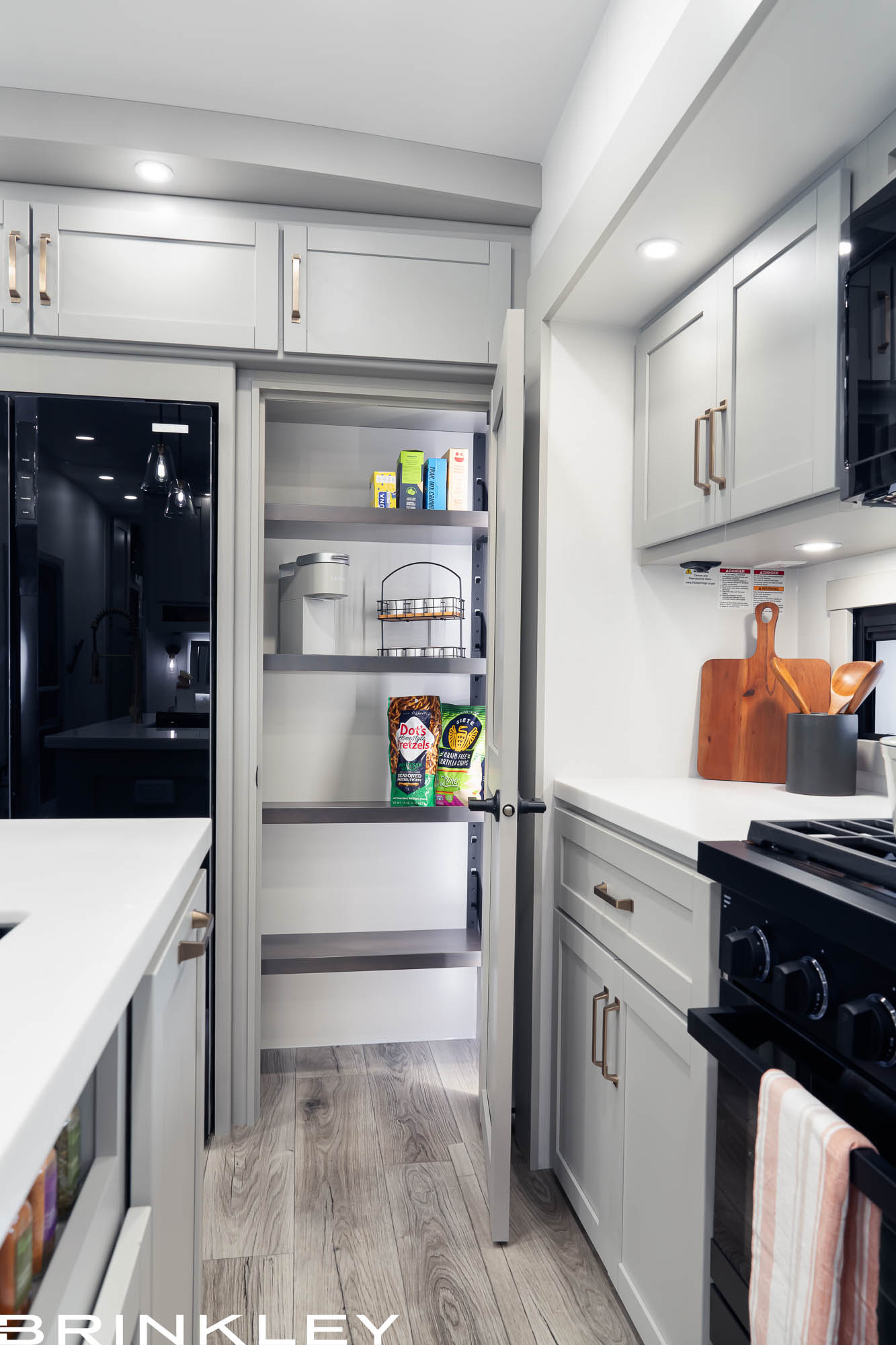

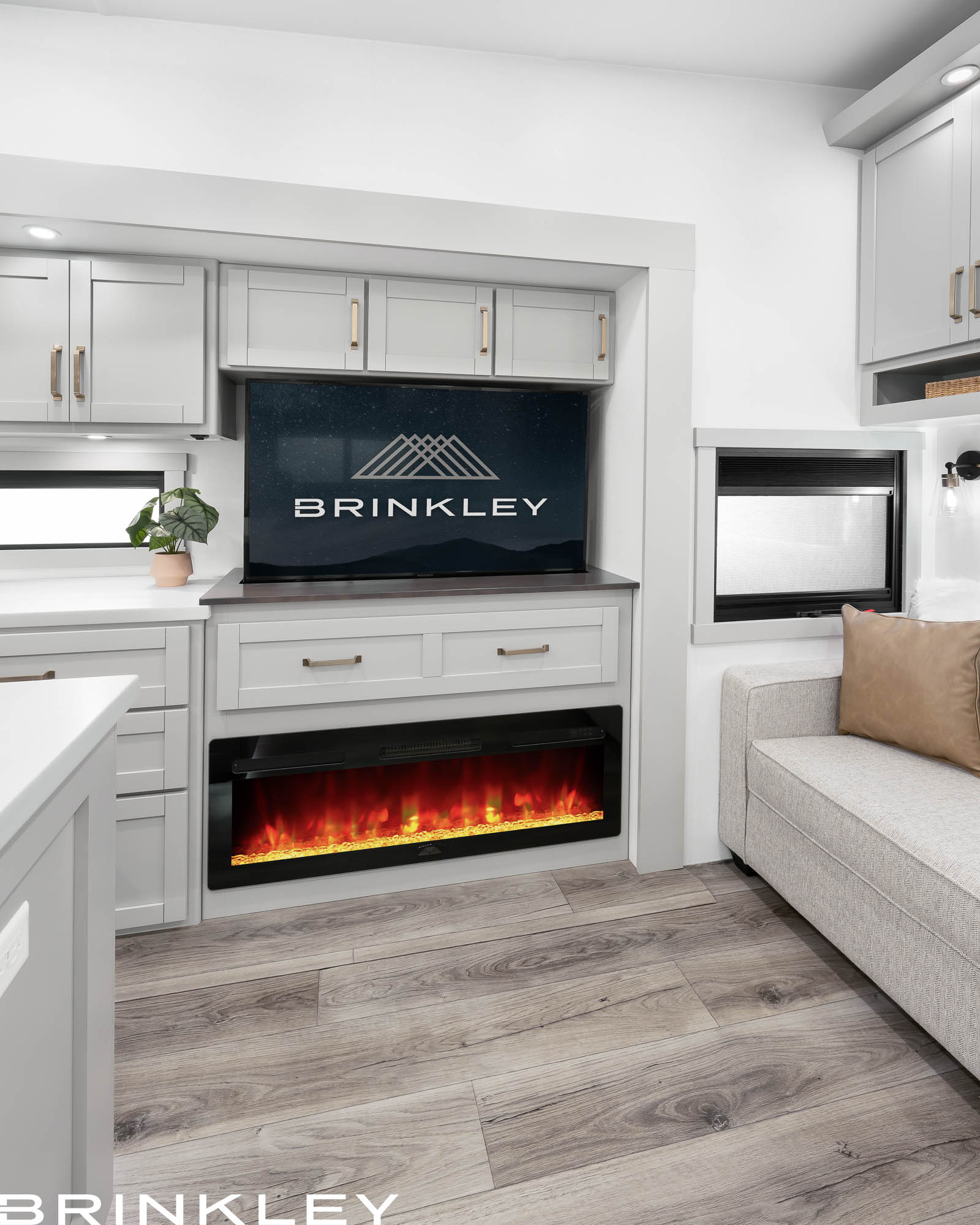

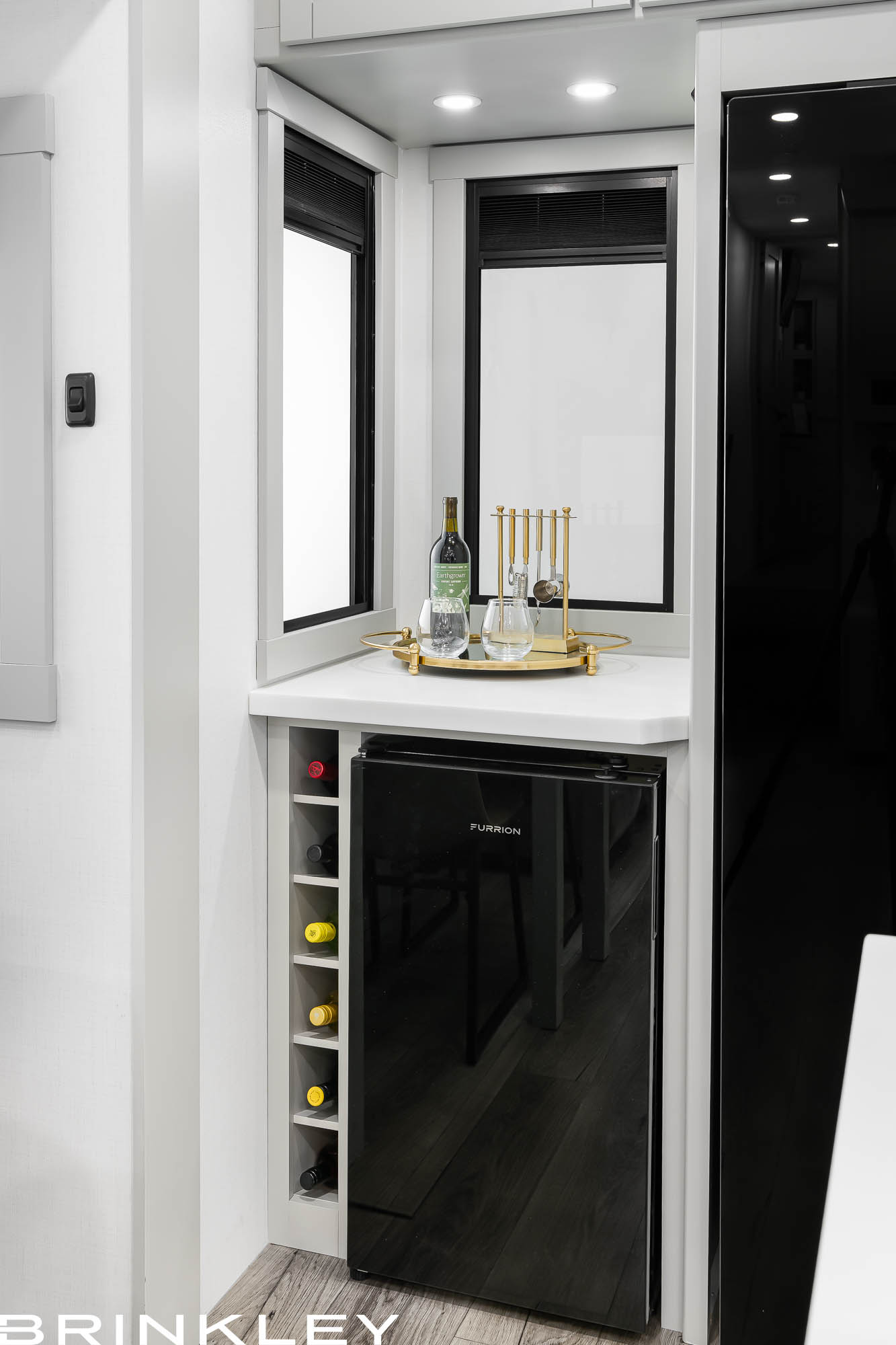

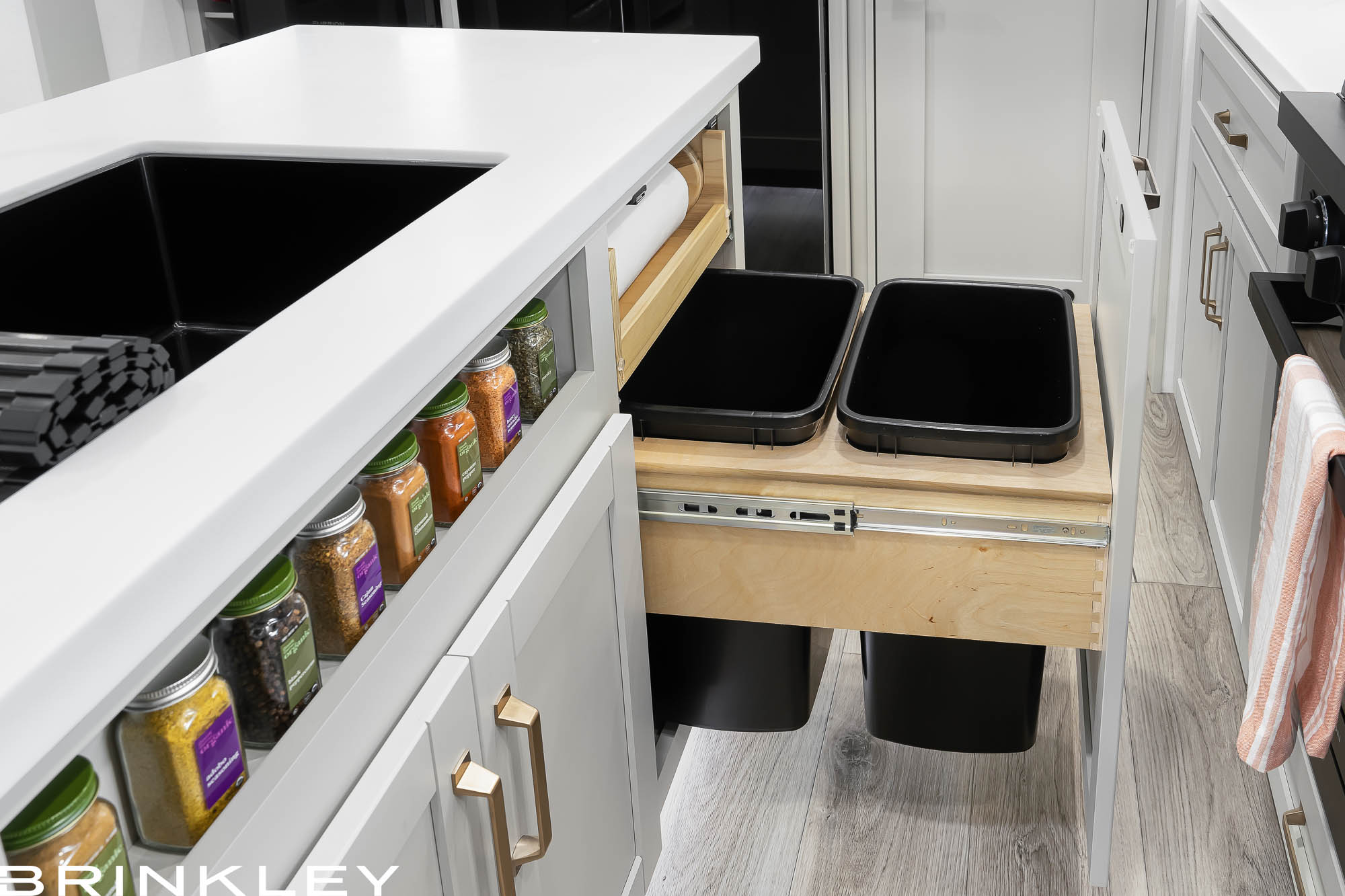

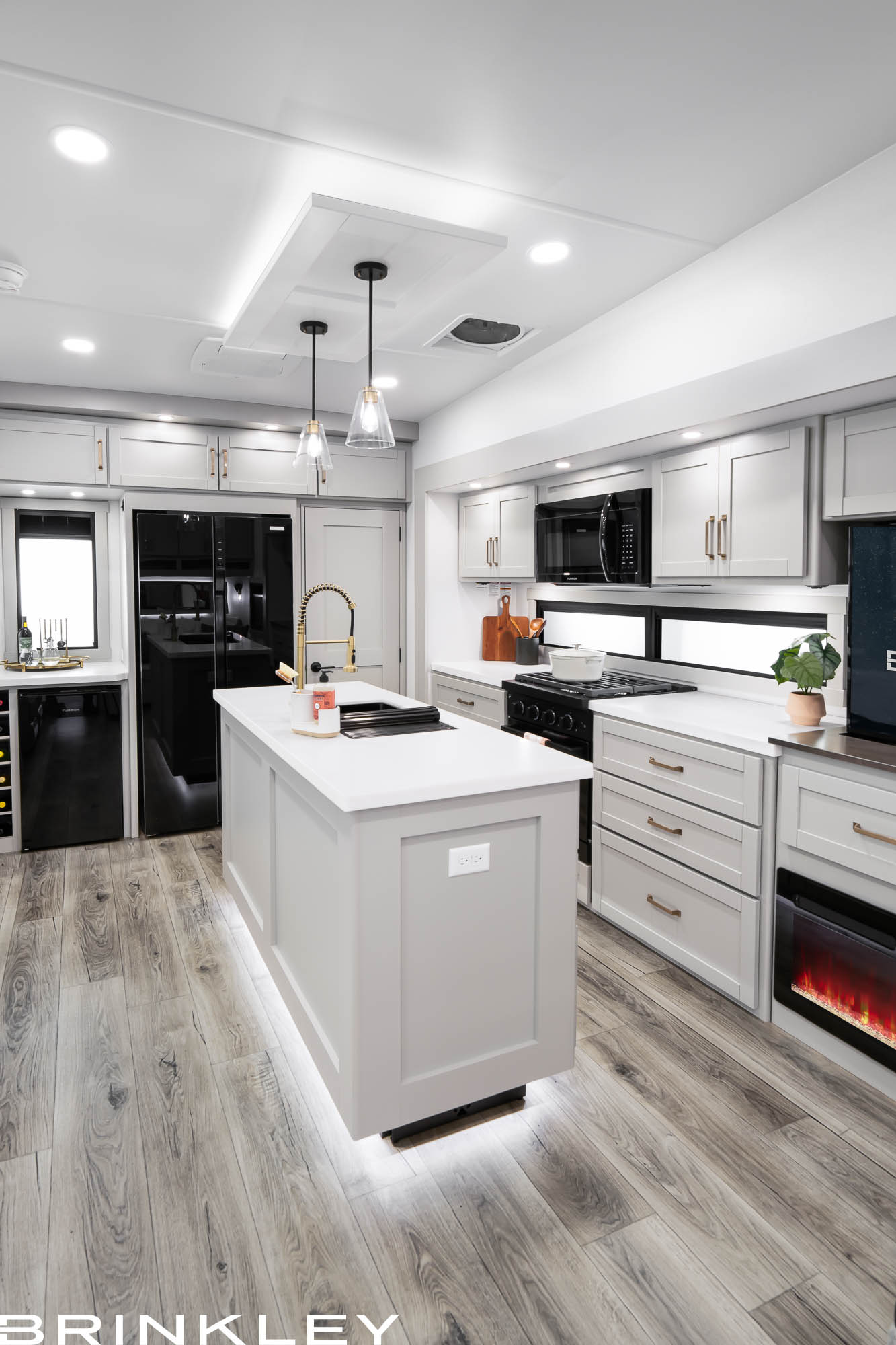

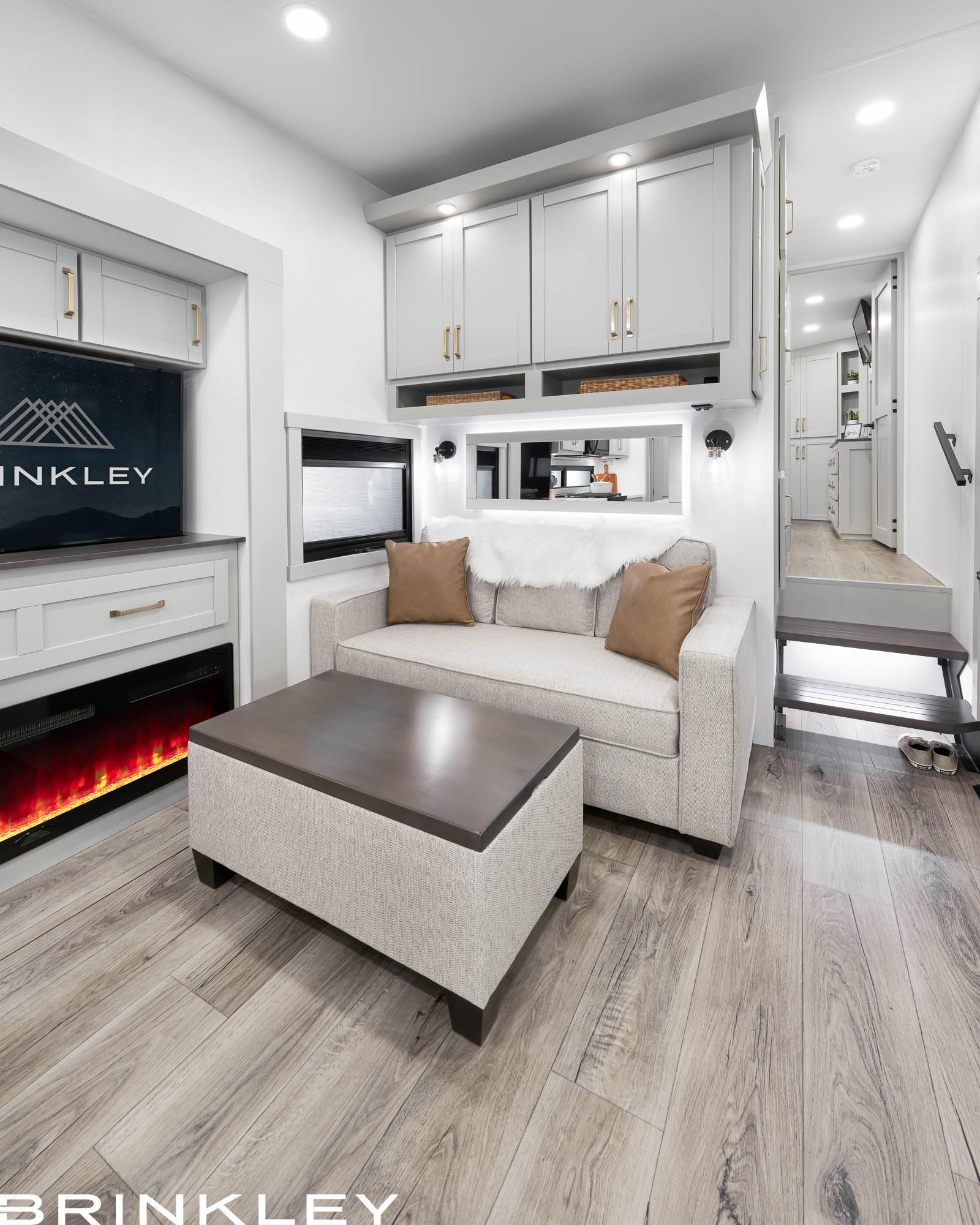

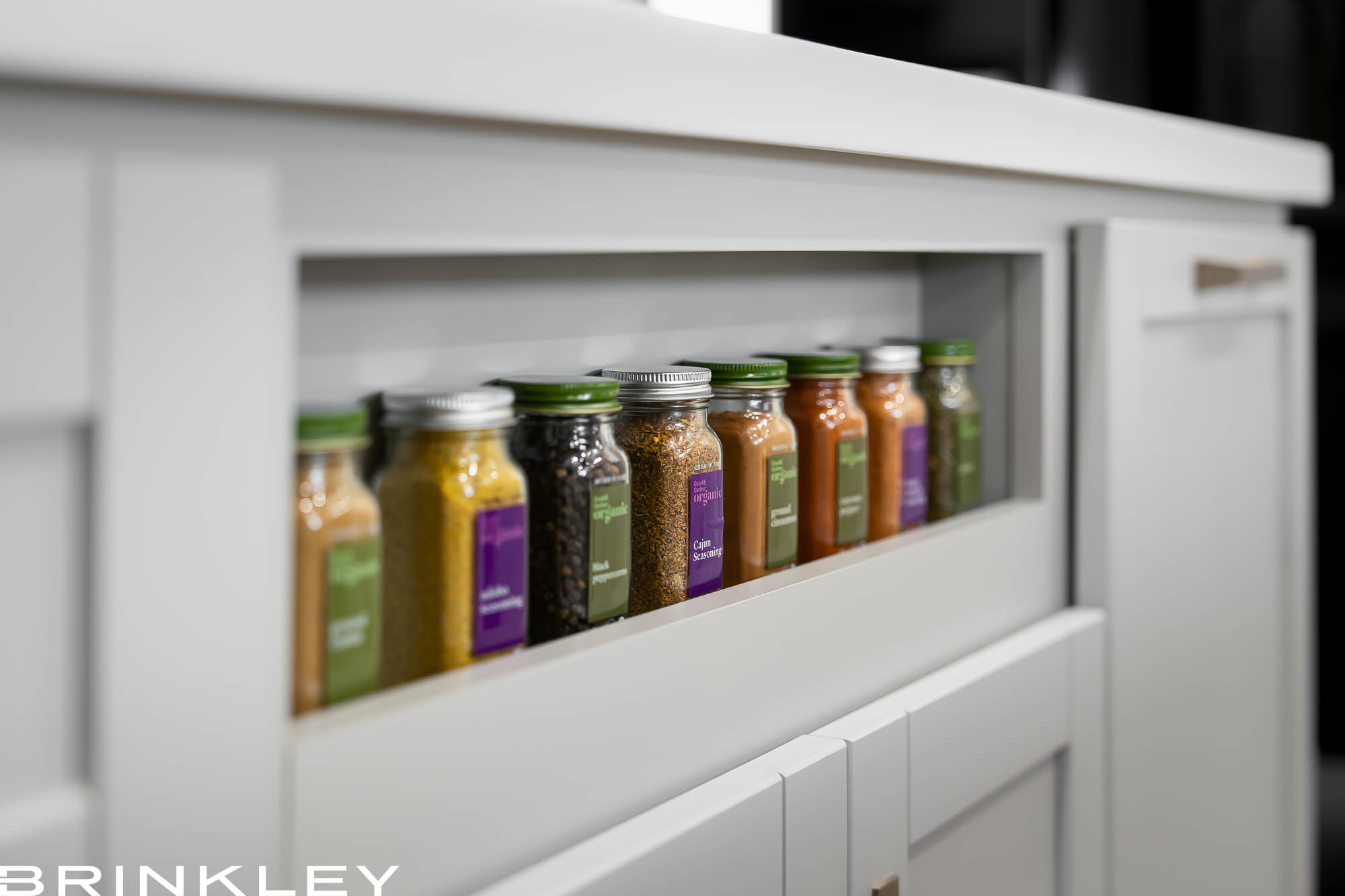

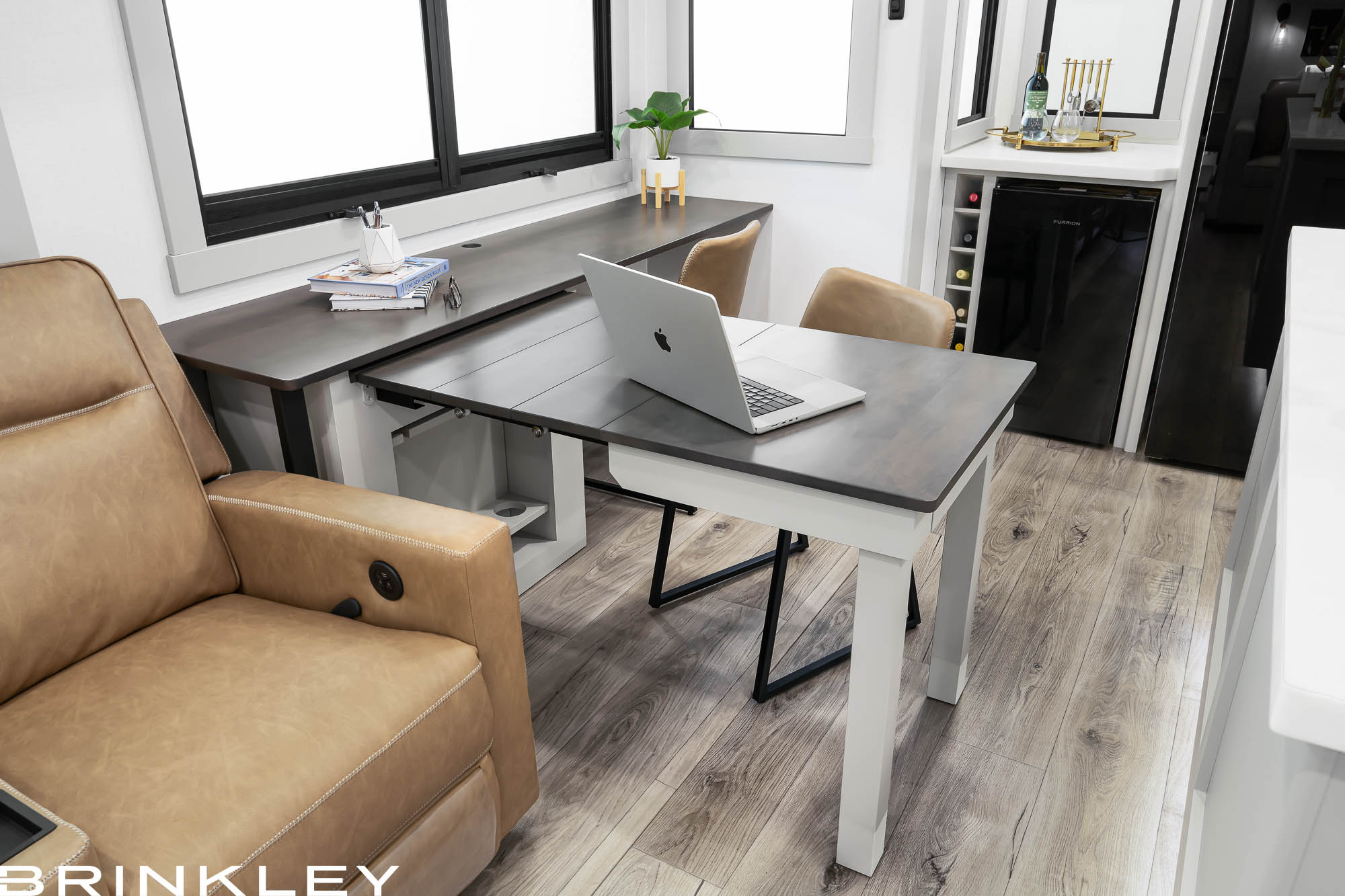

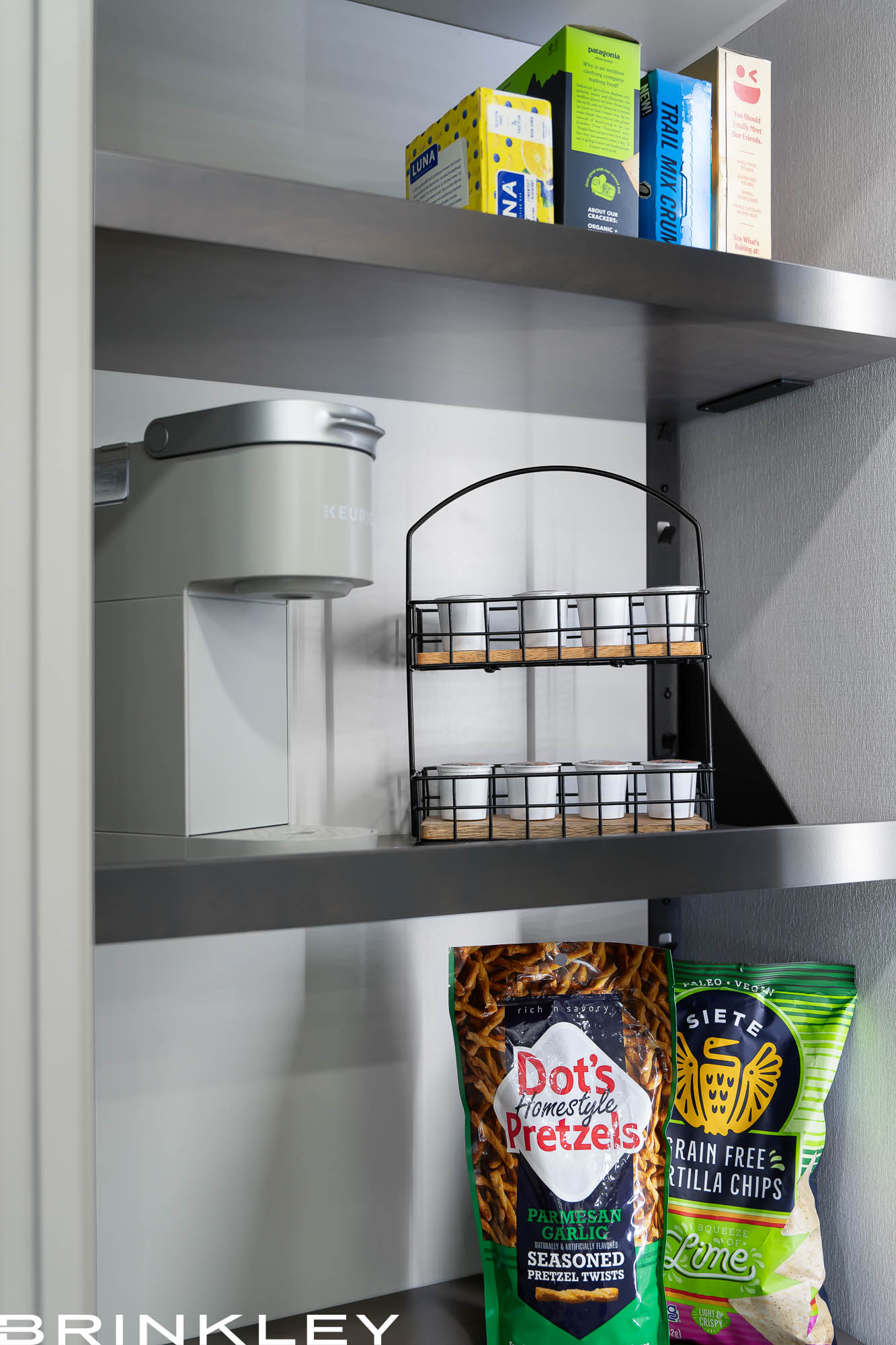

Z 3300 Interior
Z 3300 Bedroom & Bathroom

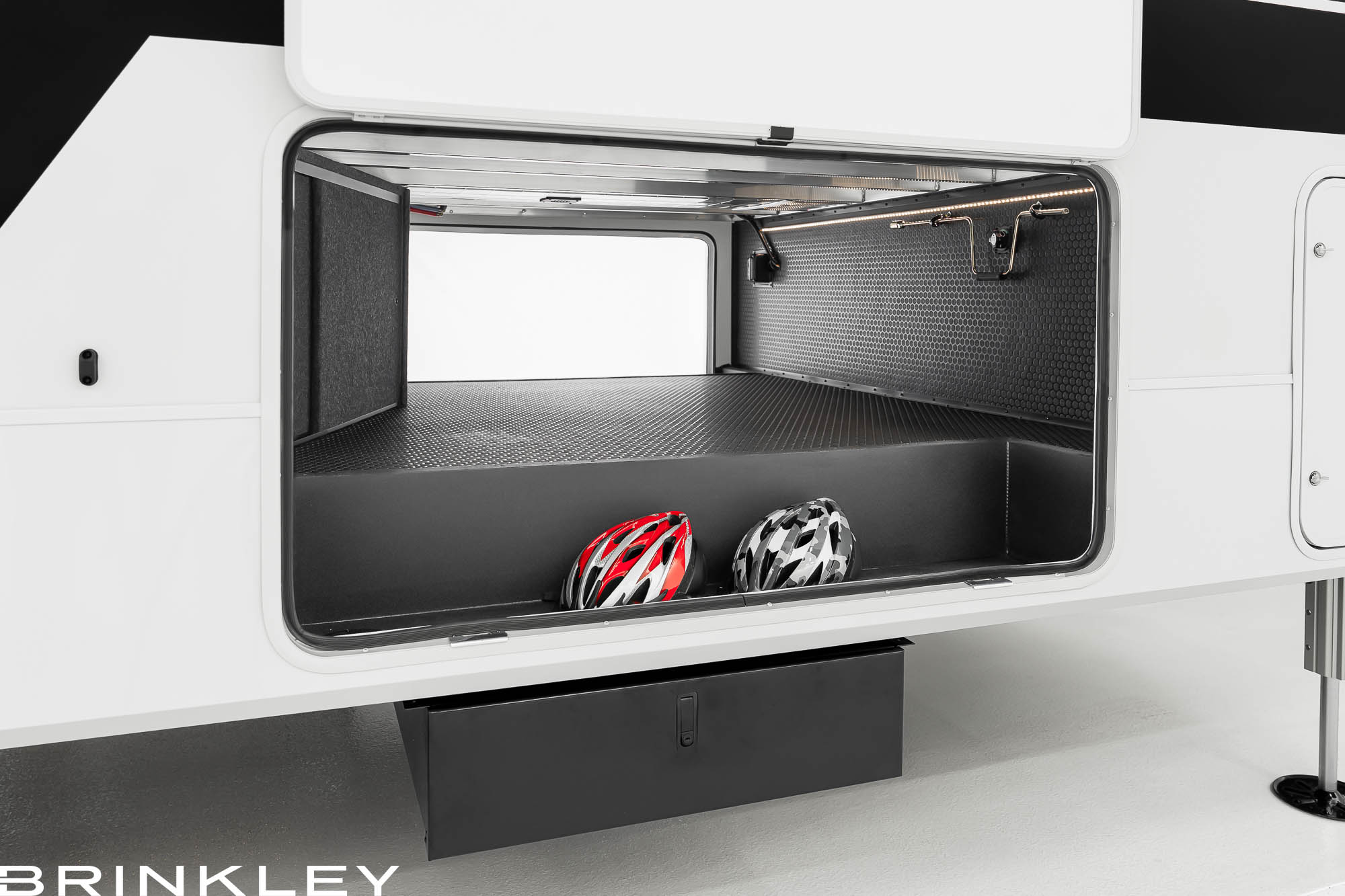

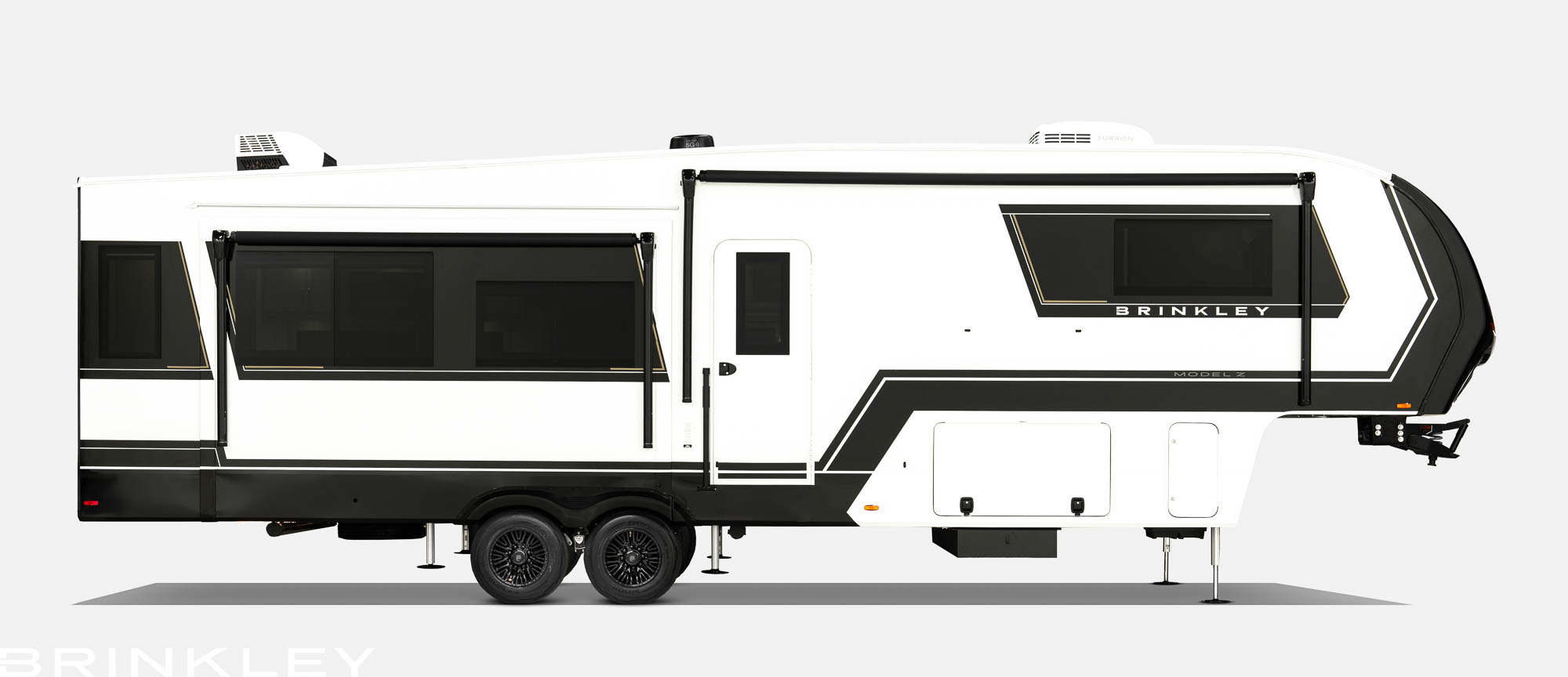

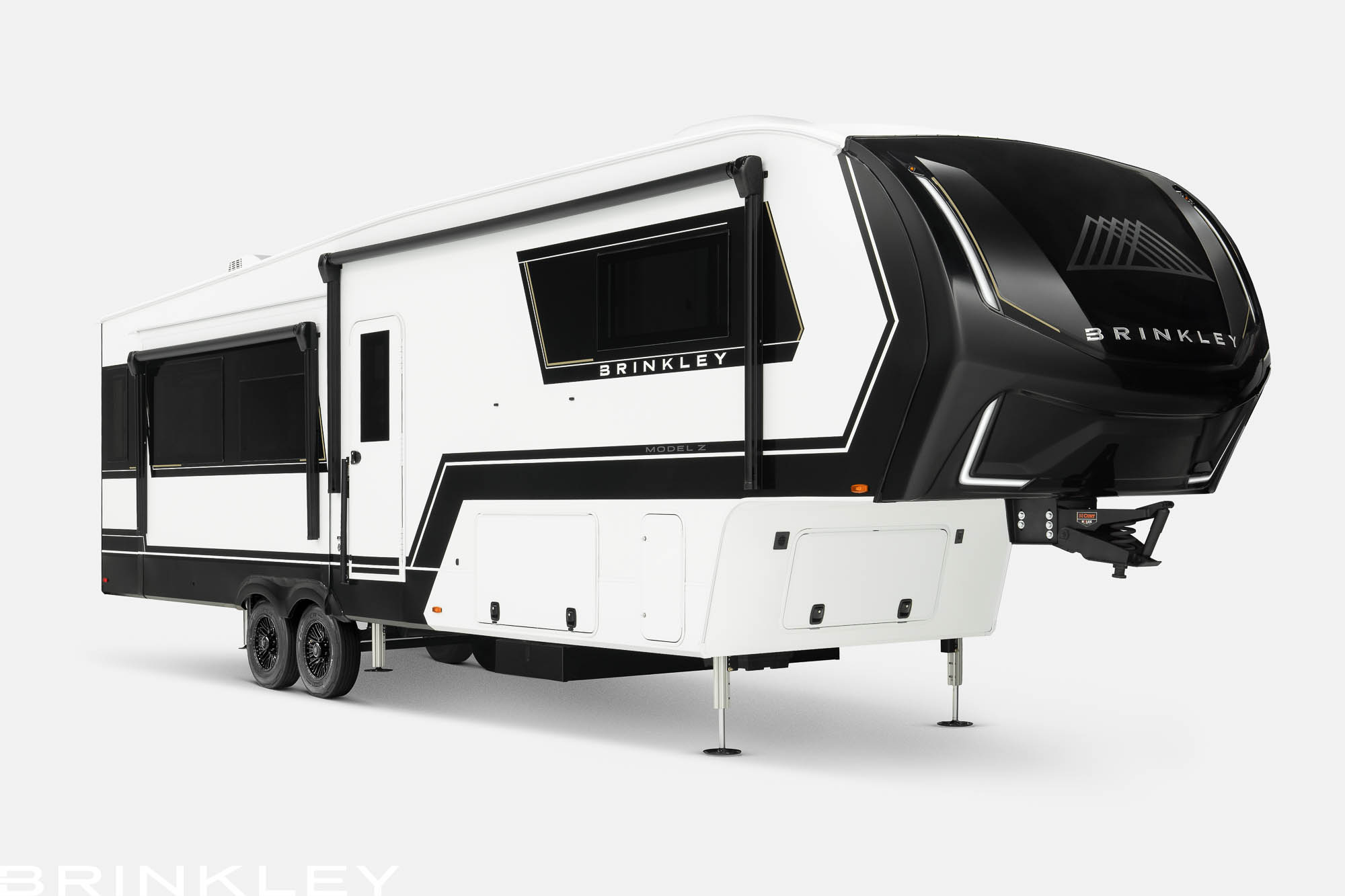

Z 3300 Exterior
Click to expand.
Related Videos
FEATURES
Z 3300 STANDARDS & OPTIONS
Click on a category to expand.
- Standard
- Option
- More Info
- Hot Feature
Chassis & Suspension
Exterior & Storage
Solar, Electrical & HVAC
Plumbing & LP
Interior & Living Spaces
Kitchen
Bathroom
Bedroom
Construction & Warranty
SPECIFICATIONS
Z 3300 Weights, Dimensions, & Capacities
| MODEL Z (FW) | 3300 | Line Type | Group |
|---|---|---|---|
WEIGHTS | 3300 | Title | 1 |
| UVW (lbs.) | 13,127 | 1 | |
| GVWR (lbs.) | 16,995 | 1 | |
| Hitch (lbs.) | 2,286 | 1 | |
| Empty | 1 | ||
AXLES & TIRES | 3300 | Title | 1 |
| Axle Rating (lbs.) | Tandem 8k | 1 | |
| Springs Rating (lbs.) | 8k | 1 | |
| Tire & Wheel Size | 215/75 R17.5 | 1 | |
| Tire Load Range | H | 1 | |
| Tire Ply | 16 | 1 | |
| Empty | 1 | ||
TANK CAPACITY | 3300 | Title | 1 |
| Fresh Water (gal.) | 150 | 1 | |
| Gray Water (gal.) | 118 (90 True + 28) | 1 | |
| Black Water (gal.) | 45 | 1 | |
| LP (lbs.) | 60 (30+30) Up to 80 | 1 | |
| Empty | 1 | ||
EXTERIOR | 3300 | Title | 2 |
| Length | 36' 7" | 2 | |
| Height | 13′ 4″ | 2 | |
| Width | 96″ | 2 | |
| Cargo Storage (cu.ft.) | 130+ | 2 | |
| Empty | 2 | ||
INTERIOR HEIGHT | 3300 | Title | 2 |
| Bath Ceilings | 79.5" | 2 | |
| Bedroom Ceilings | 79.5" | 2 | |
| Bed Slide | 76″ | 2 | |
| Main Slide(s) | 76″ | 2 | |
| Empty | 2 | ||
INSULATION | 3300 | Title | 2 |
| Floor R-Value | R40 | 2 | |
| Ceiling R-Value | R40 | 2 | |
| Walls R-Value | R11 | 2 | |
| Empty | 2 |
| MODEL Z (FW) | 3300 | Line Type | Group |
|---|---|---|---|
WEIGHTS | 3300 | Title | 1 |
| UVW (lbs.) | 13,127 | 1 | |
| GVWR (lbs.) | 16,995 | 1 | |
| Hitch (lbs.) | 2,286 | 1 | |
| Empty | 1 | ||
AXLES & TIRES | 3300 | Title | 1 |
| Axle Rating (lbs.) | Tandem 8k | 1 | |
| Springs Rating (lbs.) | 8k | 1 | |
| Tire & Wheel Size | 215/75 R17.5 | 1 | |
| Tire Load Range | H | 1 | |
| Tire Ply | 16 | 1 | |
| Empty | 1 | ||
TANK CAPACITY | 3300 | Title | 1 |
| Fresh Water (gal.) | 150 | 1 | |
| Gray Water (gal.) | 118 (90 True + 28) | 1 | |
| Black Water (gal.) | 45 | 1 | |
| LP (lbs.) | 60 (30+30) Up to 80 | 1 | |
| Empty | 1 | ||
EXTERIOR | 3300 | Title | 2 |
| Length | 36' 7" | 2 | |
| Height | 13′ 4″ | 2 | |
| Width | 96″ | 2 | |
| Cargo Storage (cu.ft.) | 130+ | 2 | |
| Empty | 2 | ||
INTERIOR HEIGHT | 3300 | Title | 2 |
| Bath Ceilings | 79.5" | 2 | |
| Bedroom Ceilings | 79.5" | 2 | |
| Bed Slide | 76″ | 2 | |
| Main Slide(s) | 76″ | 2 | |
| Empty | 2 | ||
INSULATION | 3300 | Title | 2 |
| Floor R-Value | R40 | 2 | |
| Ceiling R-Value | R40 | 2 | |
| Walls R-Value | R11 | 2 | |
| Empty | 2 |
Retired Model Z 3300 Fifth Wheels by Brinkley RV
Brinkley RV's Model Z 3300 Mid-Sized Luxury Fifth Wheels are in a class of their own. An automotive exterior with a residential interior, yielding NO COMPROMISE.
Product SKU: BRINKLEY-MODEL-Z-3300
Product Brand: Brinkley RV
5
NEW Brinkley Model Z 3200: Ultimate Rear Kitchen & Huge L-Sofa!
Walk through the Brinkley RV Model Z 3200 with Brendin and discover a spacious L-Sofa with room for the whole family and additional sleeping space. This luxu...
WHAT ARE OUR CUSTOMERS SAYING?
– I don’t know other executives at companies that RV… It shows in the (Brinkley) quality and all the little things that we see, including the fit and finish on everything…
– Don Maycock
RV SHOWS & EVENTS
It’s show season, and we are excited to meet you and show off our new Model Z mid-sized luxury fifth wheels. Here are the shows, open houses, and events the Brinkley team we’ll be attending over the next few months.
R&D HITS THE ROAD
We are living the RV lifestyle right alongside you by hitting the road with Brinkley RV’s own Model Z. These adventures help us learn how we can improve our RVs based on our own camping experiences.
IN THEIR WORDS
WHAT OUR CUSTOMERS ARE SAYING

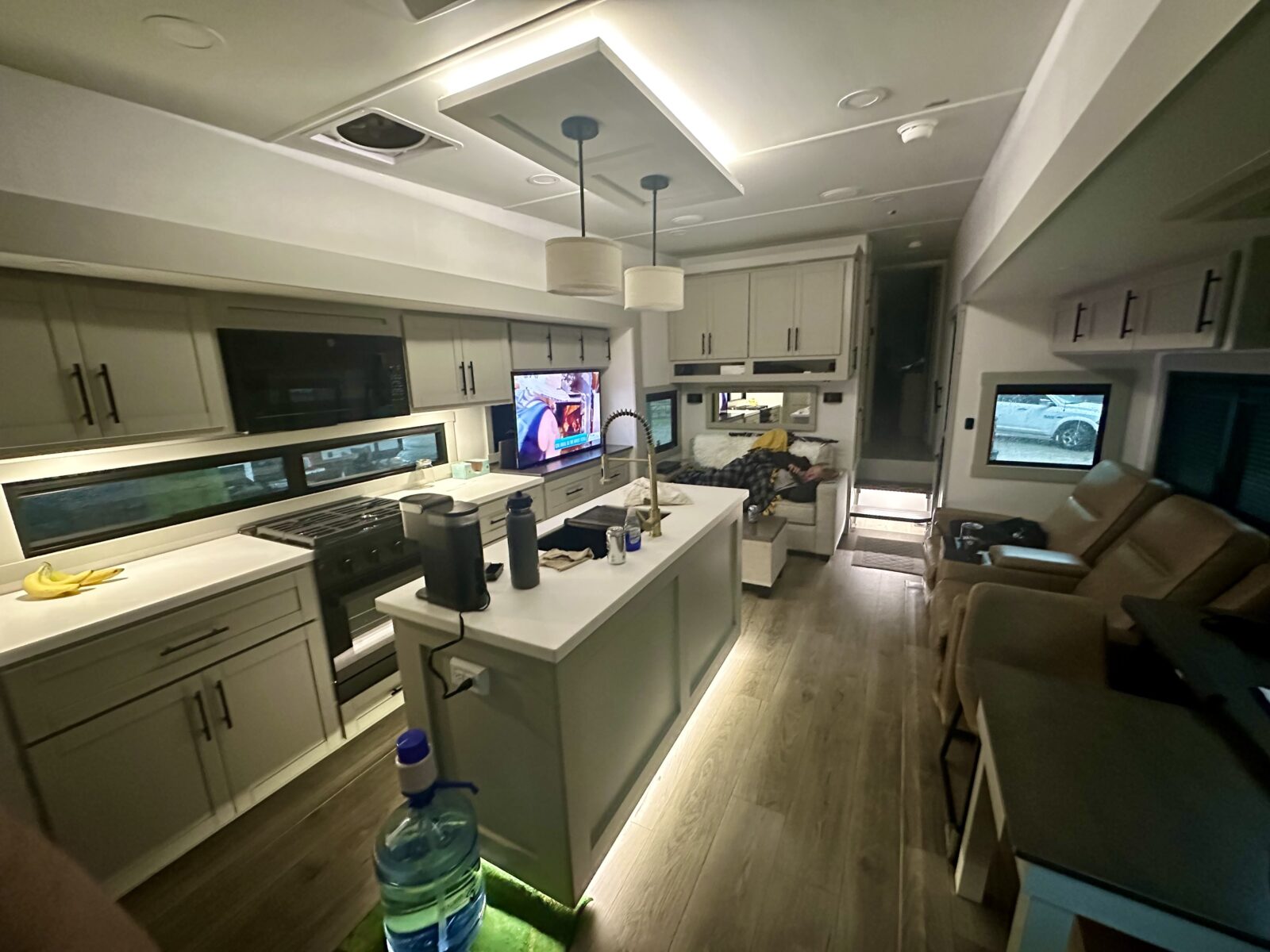

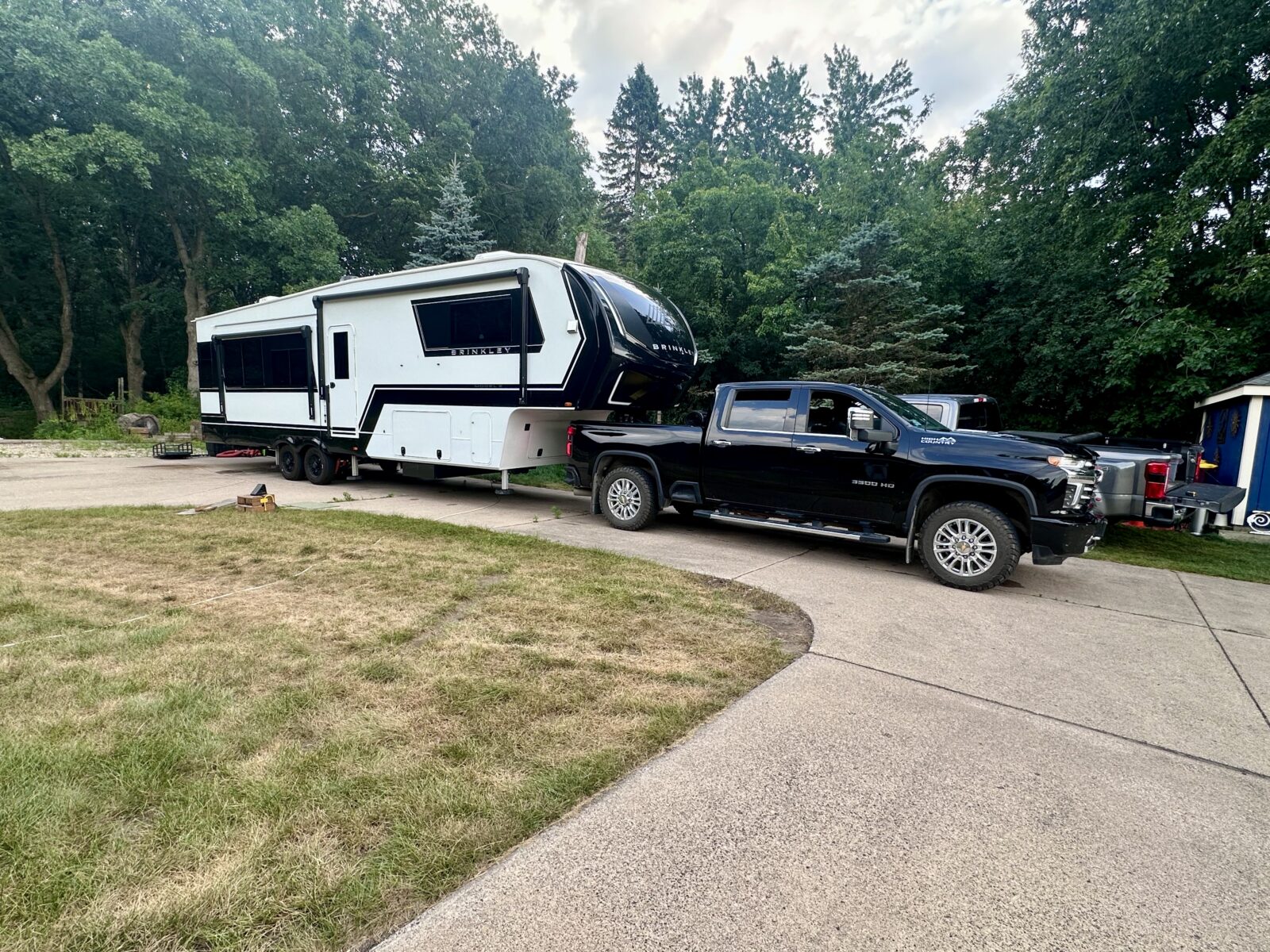

Just bought this unit and spent the last couple of days enjoying all the quality and features. Thanks to Brinkley for making such an awesome product!
