Model Z 3420
MODEL Z 3420
DEALER STOCK ONLY

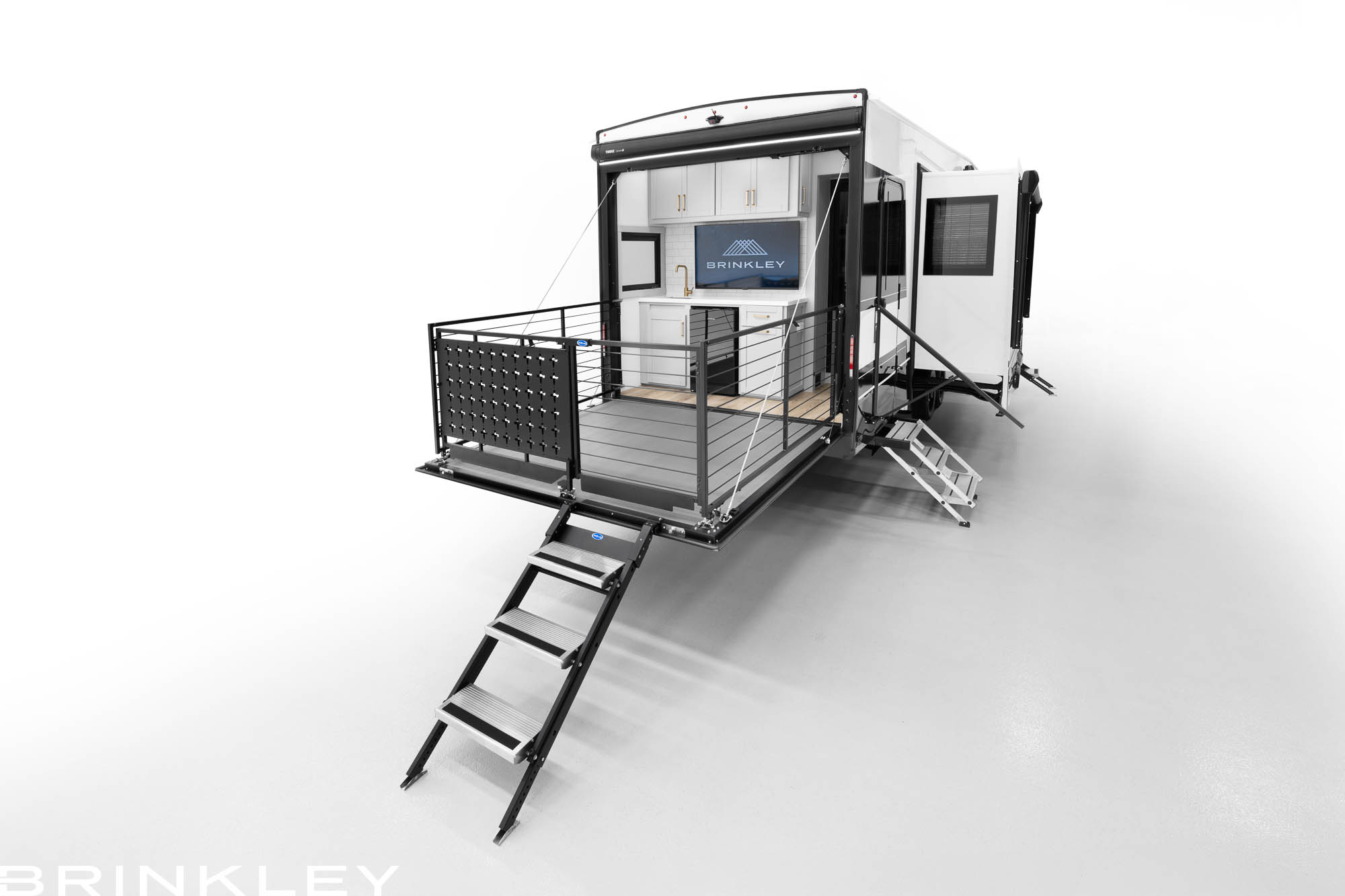

Entertainer’s dream, rear patio, LARGE outdoor kitchen, walkthrough bath
Standard Run MSRP $140,672
39' 11
13' 4"
14,691 lbs.
2,497 lbs.
17,695 lbs.
VIRTUAL TOUR
GALLERY
Z 3420 Interior
Z 3420 Bedroom & Bathroom
Z 3420 Exterior
Click to expand.
Related Videos
FEATURES
Z 3420 STANDARDS & OPTIONS
Click on a category to expand.
- Standard
- Option
- More Info
- Hot Feature
Chassis & Suspension
Exterior & Storage
Solar, Electrical & HVAC
Plumbing & LP
Interior & Living Spaces
Kitchen
Bathroom
Bedroom
Outdoor Rear Kitchen & Patio
Construction & Warranty
SPECIFICATIONS
Z 3420 Weights, Dimensions, & Capacities
| MODEL Z (FW) | 3420 | Line Type | Group |
|---|---|---|---|
WEIGHTS | 3420 | Title | 1 |
| UVW (lbs.) | 14,691 | 1 | |
| GVWR (lbs.) | 17,695 | 1 | |
| Hitch (lbs.) | 2,497 | 1 | |
| Empty | 1 | ||
AXLES & TIRES | 3420 | Title | 1 |
| Axle Rating (lbs.) | Tandem 8k | 1 | |
| Springs Rating (lbs.) | 8k | 1 | |
| Tire & Wheel Size | 215/75 R17.5 | 1 | |
| Tire Load Range | H | 1 | |
| Tire Ply | 16 | 1 | |
| Empty | 1 | ||
TANK CAPACITY | 3420 | Title | 1 |
| Fresh Water (gal.) | 75 | 1 | |
| Gray Water (gal.) | 128 (88 True + 40) | 1 | |
| Black Water (gal.) | 44 | 1 | |
| LP (lbs.) | 60 (30+30) Up to 80 | 1 | |
| Empty | 1 | ||
EXTERIOR | 3420 | Title | 2 |
| Length | 39' 11 | 2 | |
| Height | 13' 4" | 2 | |
| Width | 96″ | 2 | |
| Cargo Storage (cu.ft.) | 130+ | 2 | |
| Empty | 2 | ||
INTERIOR HEIGHT | 3420 | Title | 2 |
| Bath Ceilings | 79.5" | 2 | |
| Bedroom Ceilings | 79.5" | 2 | |
| Bed Slide | 76″ | 2 | |
| Main Slide(s) | 76″ | 2 | |
| Empty | 2 | ||
INSULATION | 3420 | Title | 2 |
| Floor R-Value | R40 | 2 | |
| Ceiling R-Value | R40 | 2 | |
| Walls R-Value | R11 | 2 | |
| Empty | 2 |
| MODEL Z (FW) | 3420 | Line Type | Group |
|---|---|---|---|
WEIGHTS | 3420 | Title | 1 |
| UVW (lbs.) | 14,691 | 1 | |
| GVWR (lbs.) | 17,695 | 1 | |
| Hitch (lbs.) | 2,497 | 1 | |
| Empty | 1 | ||
AXLES & TIRES | 3420 | Title | 1 |
| Axle Rating (lbs.) | Tandem 8k | 1 | |
| Springs Rating (lbs.) | 8k | 1 | |
| Tire & Wheel Size | 215/75 R17.5 | 1 | |
| Tire Load Range | H | 1 | |
| Tire Ply | 16 | 1 | |
| Empty | 1 | ||
TANK CAPACITY | 3420 | Title | 1 |
| Fresh Water (gal.) | 75 | 1 | |
| Gray Water (gal.) | 128 (88 True + 40) | 1 | |
| Black Water (gal.) | 44 | 1 | |
| LP (lbs.) | 60 (30+30) Up to 80 | 1 | |
| Empty | 1 | ||
EXTERIOR | 3420 | Title | 2 |
| Length | 39' 11 | 2 | |
| Height | 13' 4" | 2 | |
| Width | 96″ | 2 | |
| Cargo Storage (cu.ft.) | 130+ | 2 | |
| Empty | 2 | ||
INTERIOR HEIGHT | 3420 | Title | 2 |
| Bath Ceilings | 79.5" | 2 | |
| Bedroom Ceilings | 79.5" | 2 | |
| Bed Slide | 76″ | 2 | |
| Main Slide(s) | 76″ | 2 | |
| Empty | 2 | ||
INSULATION | 3420 | Title | 2 |
| Floor R-Value | R40 | 2 | |
| Ceiling R-Value | R40 | 2 | |
| Walls R-Value | R11 | 2 | |
| Empty | 2 |
Model Z 3420 Fifth Wheels by Brinkley RV

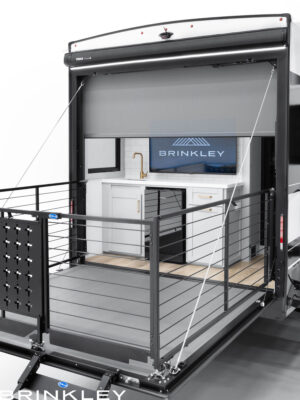

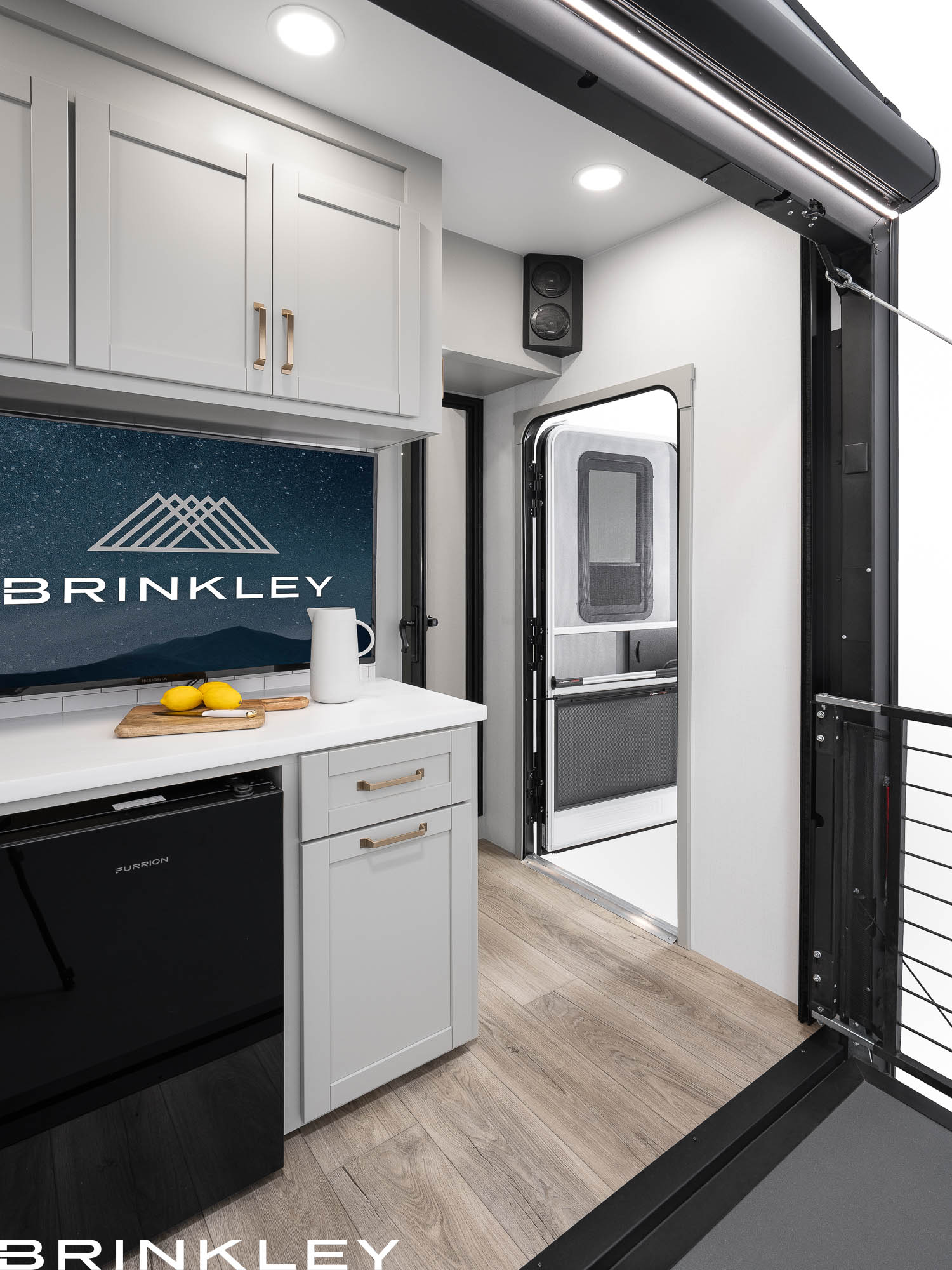

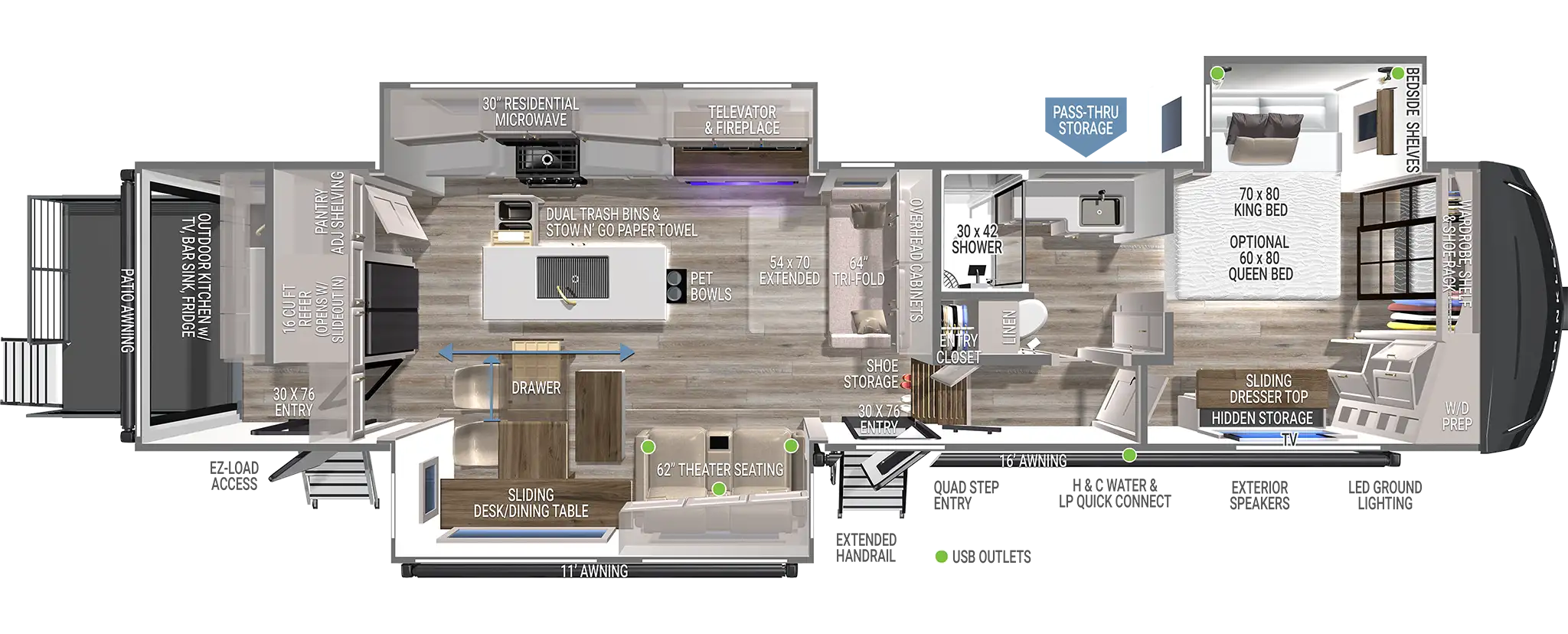

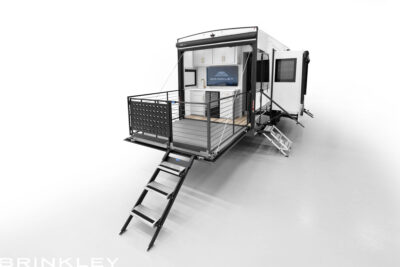

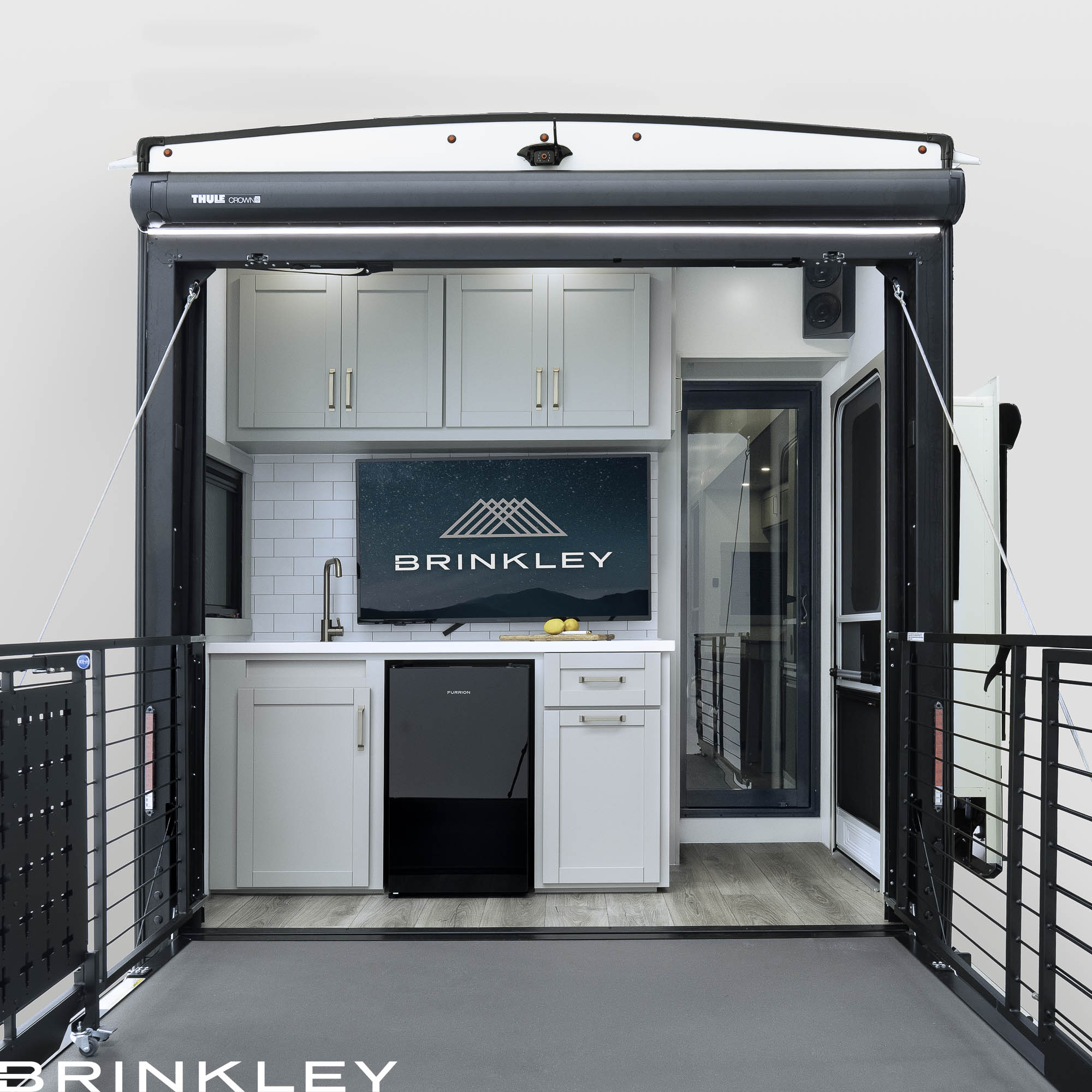

The Brinkley Model Z 3420 - 39' 11" Mid-Sized Luxury Fifth Wheel is in a class of its own… Designed as an entertainer’s dream, this floorplan features a rear patio, large outdoor kitchen, and a spacious walkthrough bath. With an automotive exterior and residential interior, it delivers NO COMPROMISE. Whether you're a weekend camper or full-time RVer, Model Z offers features that elevate the RV experience - like 7k axles, 17.5” H-rated Cooper tires, flush floor slides, and a class-leading 79.5" bed & bath interior height. The Z 3420 redefines luxury and livability in a mid-size fifth wheel.
Product SKU: BRINKLEY-MODEL-Z-3420
Product Brand: Brinkley RV
Product Currency: USD
Product Price: 140672.00
Price Valid Until: 2027-12-31
Product In-Stock: InStock
